Asus P5LD2-X GBL User Manual

ASUS P5LD2-X/GBL 2-11
2.3.3 Uninstalling the CPU heatsink and fan

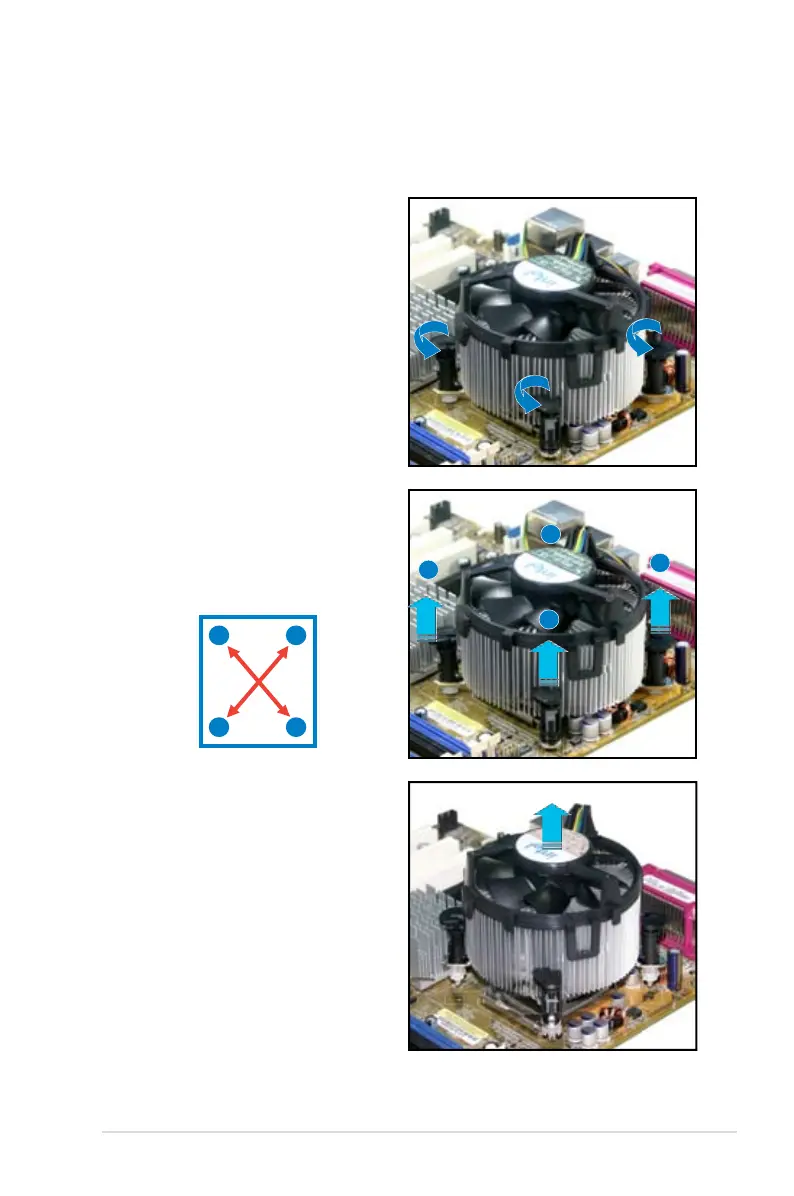

To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from
the connector on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time
in a diagonal sequence to
disengage the heatsink and fan
assembly from the motherboard.
B
B
A
A
A
A
B
B
4. Carefully remove the heatsink
and fan assembly from the
motherboard.

Asus P5LD2-X GBL Specifications

General

Form Factor	ATX
CPU Socket	LGA 775
Front Side Bus	1066/800/533 MHz
Memory Type	DDR2
Maximum Memory	4 GB
Memory Slots	2 x DIMM
Memory Standard	DDR2 667/533/400
Supported CPU	Intel Pentium 4, Pentium D, Celeron D
Expansion Slots	1 x PCIe x16, 3 x PCI-E x1, 3 x PCI
Storage Interfaces	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Audio	Realtek ALC883, 6-Channel
LAN	Gigabit LAN
