Asus P5LD2-X GBL User Manual

2-24 Chapter 2: Hardware information
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0/1.1 devices.
8.
USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0/1.1 devices.
9. Coaxial S/PDIF Out port
. This port connects an external audio output device
via a coaxial S/PDIF cable.
10. Serial port
. This port connects a modem, or other devices that conform with
serial specication.
11. PS/2
keyboard port (purple). This port is for a PS/2 keyboard.
Audio 2, 4, or 6-channel conguration
2.7.2 Internal connectors

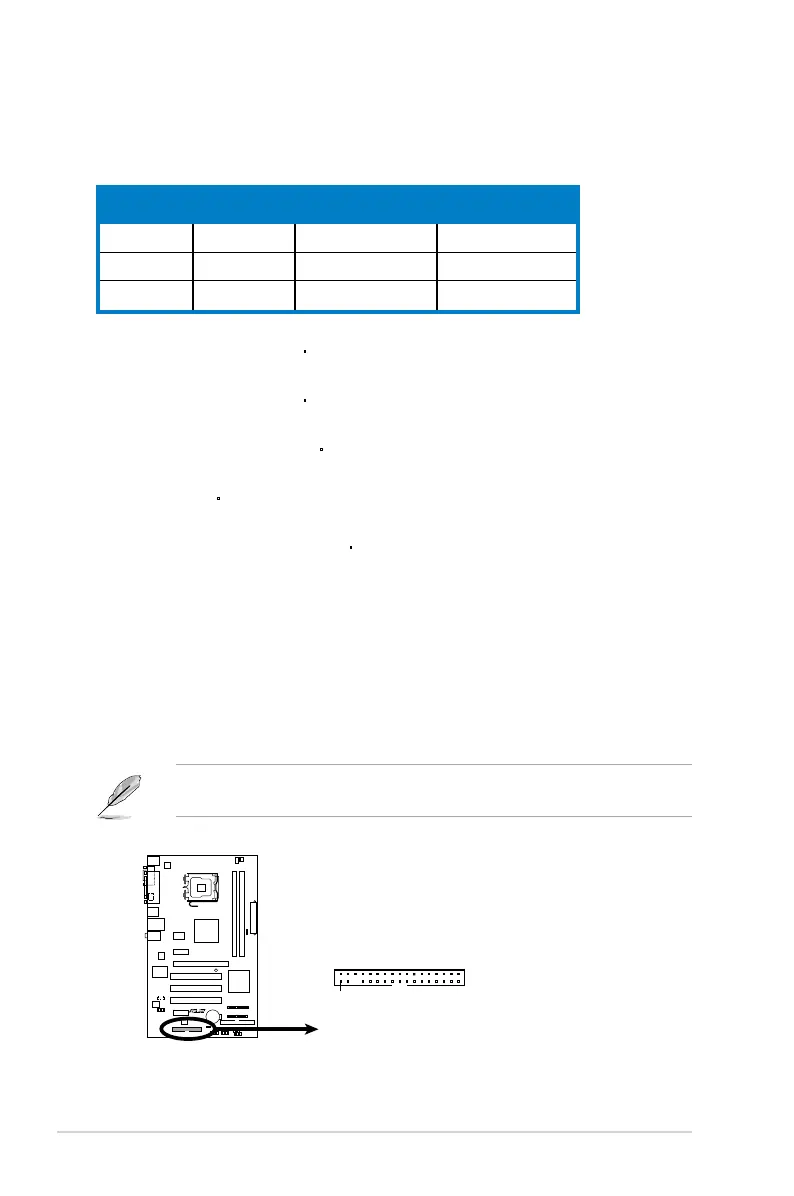

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
P5LD2-X/GBL
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY
P5LD2-X/GBL Floppy Disk Drive Connector
Port 2-channel 4-channel 6-channel
Light Blue Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In

Asus P5LD2-X GBL Specifications

General

Form Factor	ATX
CPU Socket	LGA 775
Front Side Bus	1066/800/533 MHz
Memory Type	DDR2
Maximum Memory	4 GB
Memory Slots	2 x DIMM
Memory Standard	DDR2 667/533/400
Supported CPU	Intel Pentium 4, Pentium D, Celeron D
Expansion Slots	1 x PCIe x16, 3 x PCI-E x1, 3 x PCI
Storage Interfaces	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Audio	Realtek ALC883, 6-Channel
LAN	Gigabit LAN
