Asus P5LD2 User Manual

ASUS P5LD2ASUS P5LD2
ASUS P5LD2ASUS P5LD2
ASUS P5LD2
2-32-3
2-32-3
2-3
2.2.32.2.3
2.2.32.2.3
2.2.3

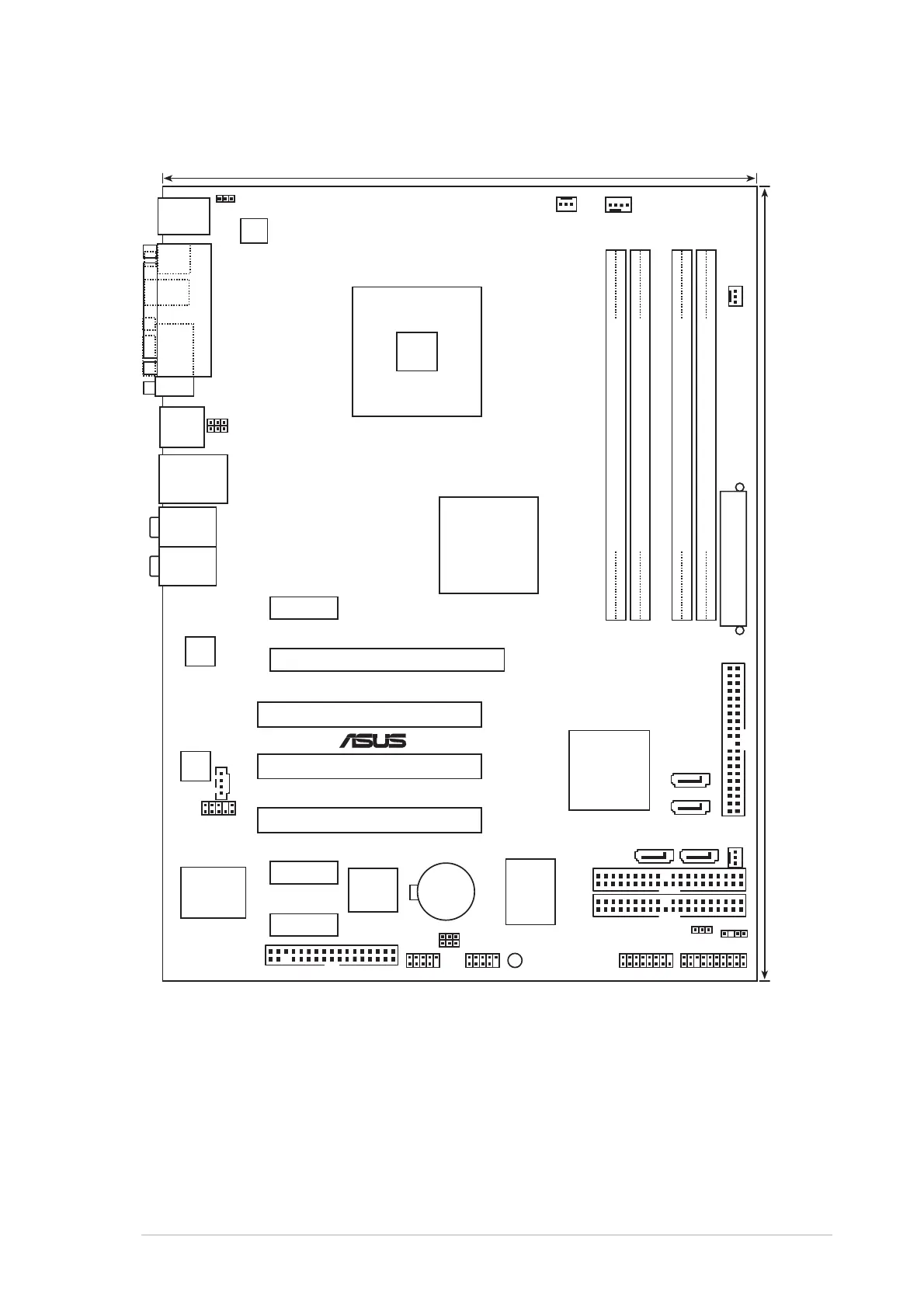

Motherboard layoutMotherboard layout
Motherboard layoutMotherboard layout
Motherboard layout
P5LD2
®
CR2032 3V
Lithium Cell
CMOS Power
CD
LPC I/O
Winbond
W83627EHF
Intel FWH
4Mbit
ATX12V
FLOPPY
AAFP
DDR2 DIMM_A1 (64 bit,240-pin module)
KBPWR
SB_PWR
23cm (9in)
30.5cm (12.0in)
PANEL
CHASSIS
GAMEUSB78
USB56
USBPW56
USBPW78
SEC_EIDE
PRI_EIDE
CLRTC
SATA1
PCIEX1_1
PCIEX1_2
PCIEX1_3
PCI2
PCI3
Intel
945P
Intel
ICH7R
DDR2 DIMM_A2 (64 bit,240-pin module)
DDR2 DIMM_B1 (64 bit,240-pin module)
DDR2 DIMM_B2 (64 bit,240-pin module)
CPU_FAN
ITE
8211F
PCIEX16
CHA_FAN1
PCI1
Marvell
88E8053
PS/2KBMS
T: Mouse
B: Keyboard
Below:Mic In
Center:Line Out
Top:Line In
Below: Bass
Center:
Side surround L/R
Top:
Back surround L/R
USB12
LAN_USB34
PARALLEL PORT
COM1
SPDIF_O1
ALC882
SATA2
SATA4
SATA3
PRI_IDE
EATXPWR
USBPW34
USBPW12
CHA_FAN2
PWR_FAN
SPDIF_O2
LGA775

Asus P5LD2 Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
CPU fan connector	Yes
USB 2.0 connectors	2
Manageability features	WOL (PME) WOR (PME) Chassis Intrusion
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	32 Mbit
Audio chip	Realtek ALC882
Audio output channels	7.1 channels
Motherboard form factor	ATX
Bundled software	Drivers ASUS PC Probe II AI Booster AntiVirus ASUS LiveUpdate
Parallel processing technology support	Not supported
RAID levels	1, 5, 10

Weight and Dimensions

Depth	23 mm
Width	30.5 mm
