Asus P5LD2 User Manual

2-102-10
2-102-10
2-10
Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware information
3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN.

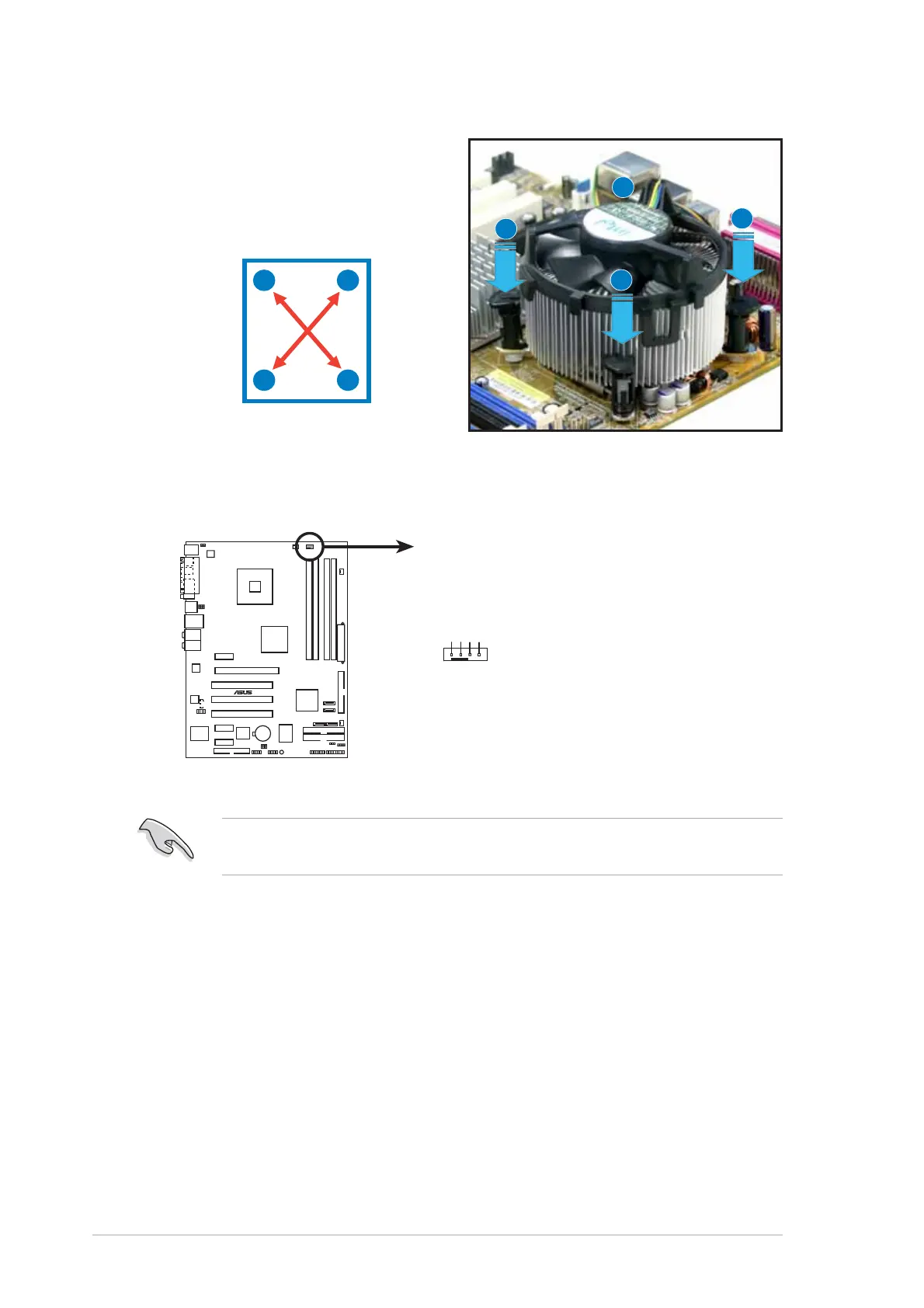

2. Push down two fasteners at a
time in a diagonal sequence to
secure the heatsink and fan
assembly in place.
B
B
A
A
A
A
B
B
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
P5LD2
®
P5LD2 CPU fan connector
CPU_FAN
GND CPU FAN PWR CPU FAN IN CPU FAN PWM

Asus P5LD2 Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
CPU fan connector	Yes
USB 2.0 connectors	2
Manageability features	WOL (PME) WOR (PME) Chassis Intrusion
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	32 Mbit
Audio chip	Realtek ALC882
Audio output channels	7.1 channels
Motherboard form factor	ATX
Bundled software	Drivers ASUS PC Probe II AI Booster AntiVirus ASUS LiveUpdate
Parallel processing technology support	Not supported
RAID levels	1, 5, 10

Weight and Dimensions

Depth	23 mm
Width	30.5 mm
