ASUS P7F-E 2-9
2.3.1 Installing the CPU
To install a CPU:

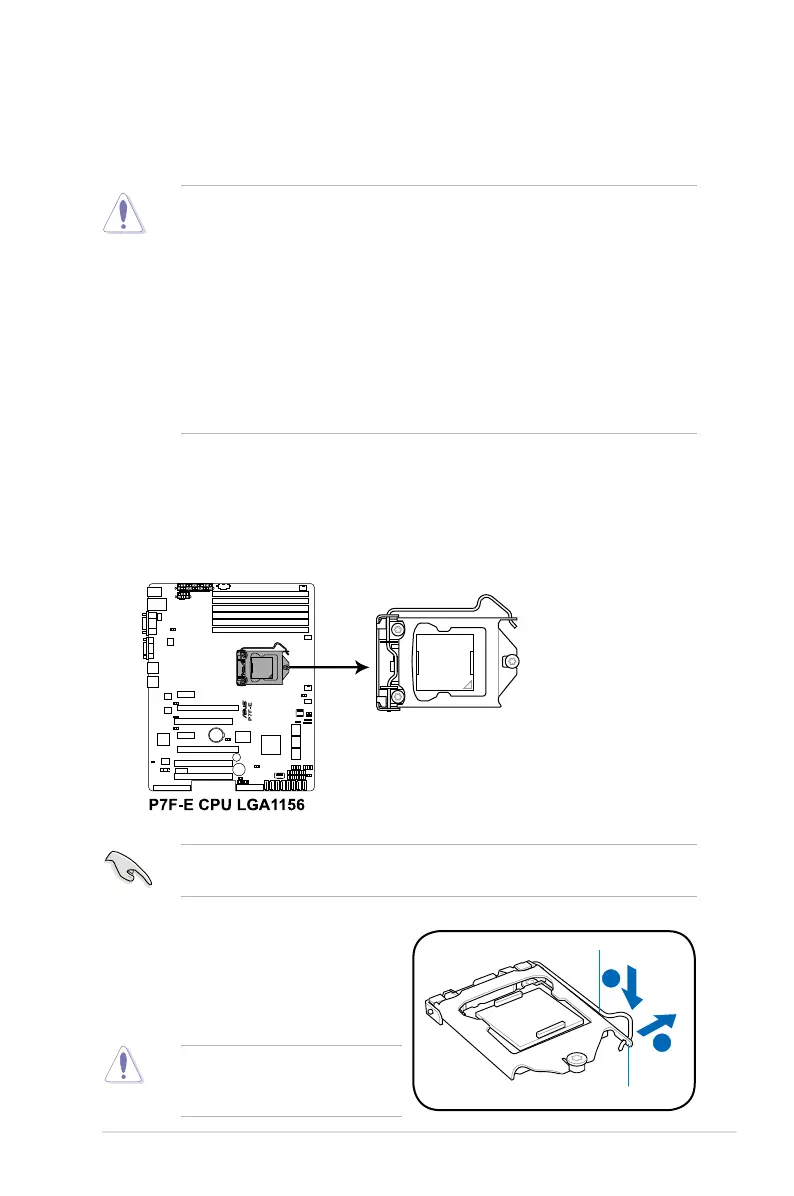

1. Locate the CPU socket on the motherboard.
Before installing the CPU, ensure that the socket box is facing toward you and
the load lever is on your left.
2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1156 socket designed for the
Intel
®
Xeon 3400 series Processors.
• Upon purchase of the motherboard, ensure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. ASUS will shoulder the cost
of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes
with the cap on the LGA1156 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.
To prevent damage to the socket
pins, do not remove the PnP cap
unless you are installing a CPU.
Load lever
Retention tab
2. Press the load lever with your
thumb (A), and then move it to the
right (B) until it is released from the
retention tab.
