2-28 Chapter 2: Hardware information
2.7.2 Internal connectors

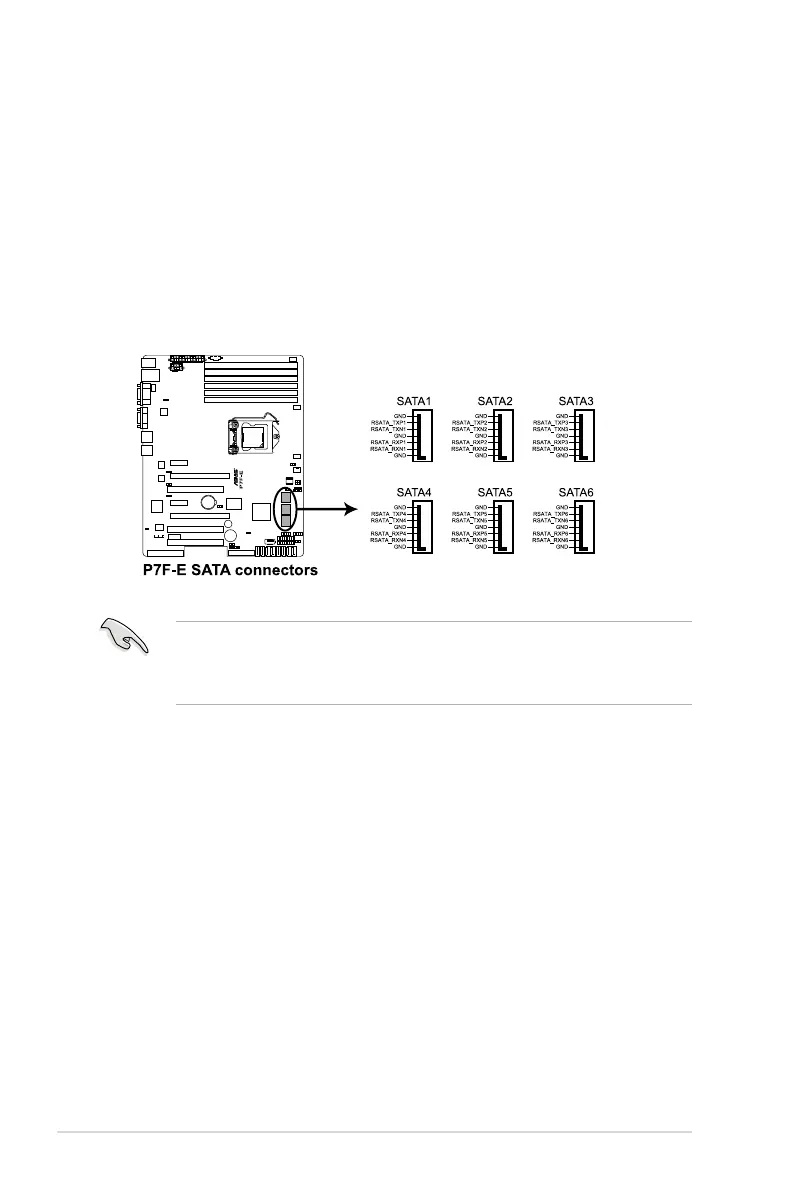

1. Serial ATA connectors
(7-pin SATA1, SATA2, SATA3, SATA4; RED)
(7-pin SATA5, SATA6; Black)
Supported by the Intel
®
3420 chipset, these connectors are for the Serial ATA
signal cables for Serial ATA hard disk drives that allows up to 3Gb/s of data
transfer rate.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1,
RAID 10, or RAID 5 conguration.
• The actual data transfer rate depends on the speed of Serial ATA hard disks
installed.
• The SATA connectors do not support SATA cables with latch.
