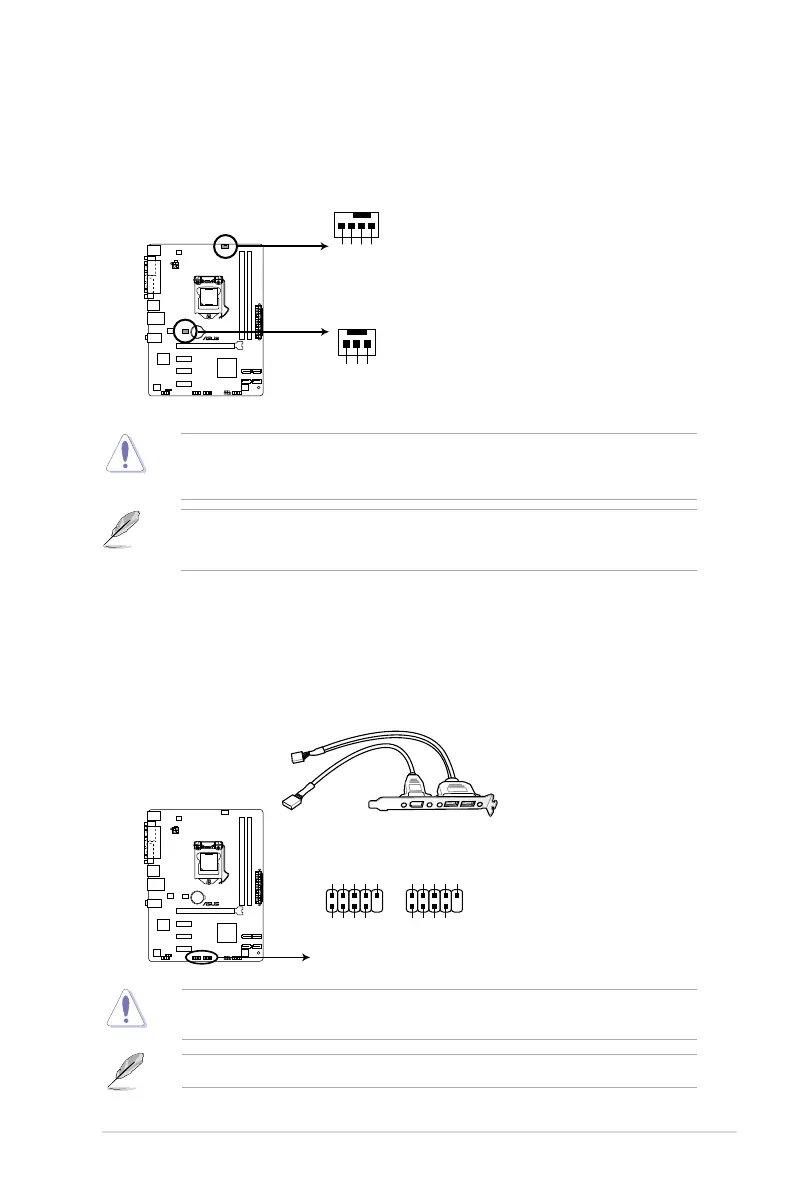

1-29Chapter 1: Product introduction
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
4. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
• Only the 4-pin CPU fan supports ASUS FanXpert feature.
5. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
Rotation
+12V
GND
P8H61-M LX R2.0
P8H61-M LX R2.0 Fan connectors
CHA_FAN
P8H61-M LX R2.0
P8H61-M LX R2.0 USB2.0 connectors
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
USB56 USB78
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND

Asus P8H61-M LX PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
PCI Express x1 slots	3
PCI Express slots version	2.0, 3.0
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
