Chapter 2: BIOS information 2-7
BIOS menu screen
The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes by pressing F7 or through the Exit/Advanced Mode button in the EZ
Mode/Advanced Mode screen.
EZ Mode

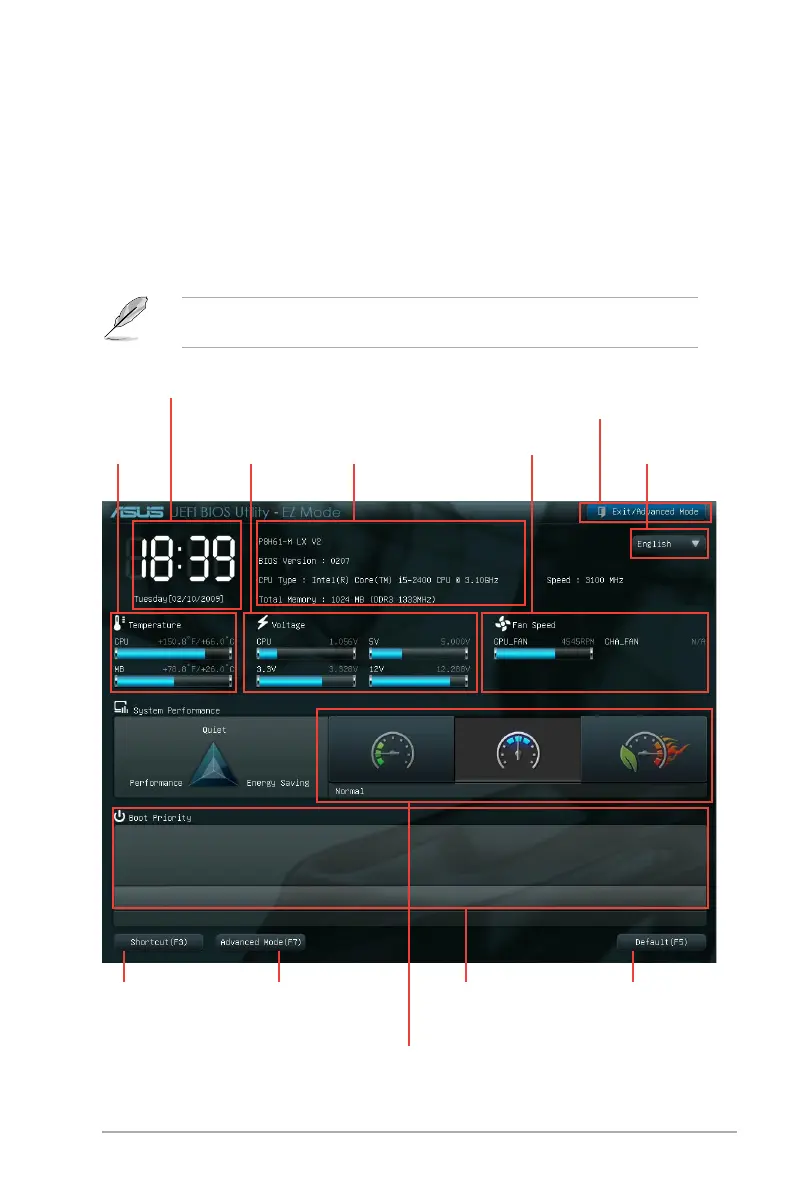

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 2.7 Boot menu for details.
Default(F5)
Loads optimized default
settings
Switches to Advanced
Mode
Displays list of
shortcuts to BIOS
functions
Displays boot
sequence and
bootable devices
Switches system performance to Quiet, Performance,
or Energy Saving
Display Exit
options or
switch to
Advanced
Mode
Selects
BIOS
interface
language
Display current
Fan Speed
Displays basic
hardware information
and BIOS version
Displays CPU/
5V/3.3V/12V
voltage output
Displays
the CPU/
motherboard
temperature
Displays system time
and date

Asus P8H61-M LX PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
PCI Express x1 slots	3
PCI Express slots version	2.0, 3.0
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
