4-10
Chapter 4: Software support
Chapter 4
3
Smart CPU Power Level - 35W
CPU power usage is limited to 35W to achieve the best digital power saving
mode.
4
OC Now!
Adjusts the CPU ratio in TurboV EVO.
5
Default (Smart DIGI+ Setting)
Sets your CPU/iGPU/DRAM power to default settings.
6
Default (Smart CPU Power Level)
Sets your power consumption to CPU default setting.
Enabling the Smart CPU Power Level may decrease the total power delivery to the
CPU, and affect the CPU performance under a heavy system load. The system
restores to its default settings on the next startup.
Only Intel
®
3rd generation processors support the Smart DIGI+ Technology feature.

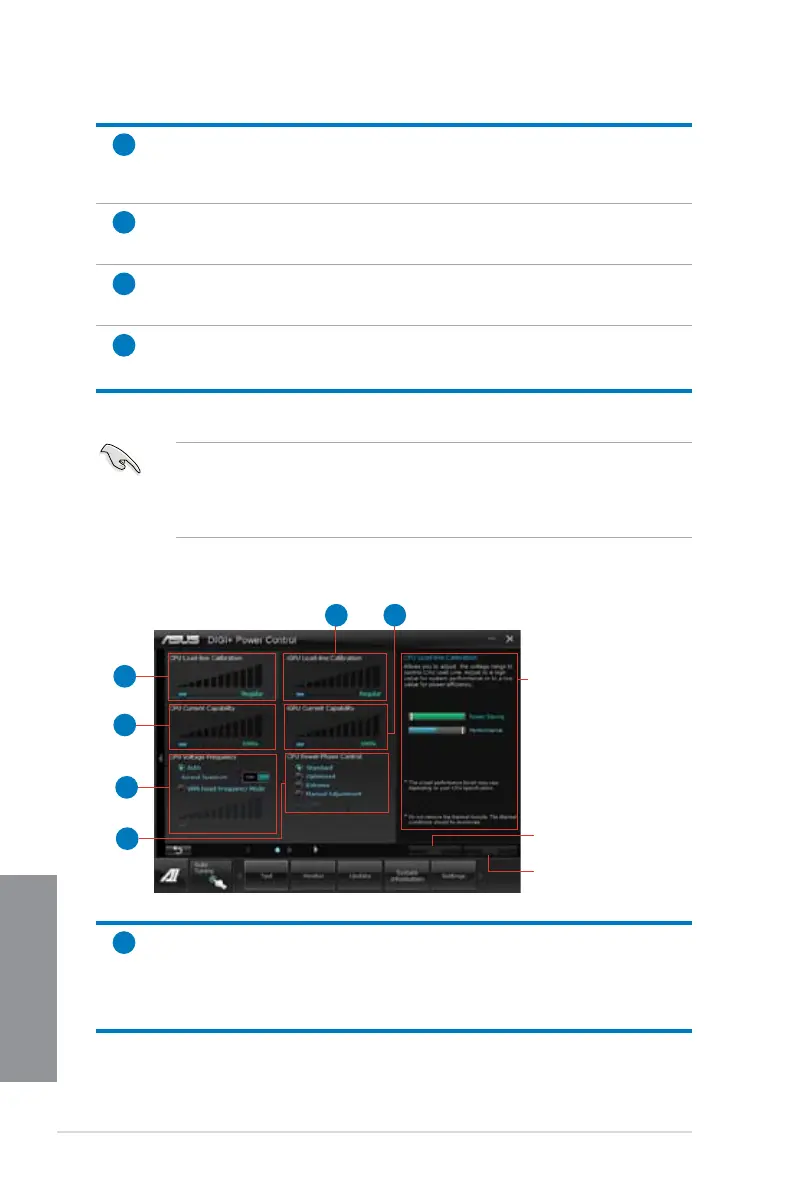

CPU Power
Application help
Applies all the changes
immediately
Undoes all the
changes
1
2
3
6
4
5
1
CPU Load-line Calibration
It allows you to adjust the voltage settings and control the system temperature.
Higher load-line calibration could get higher voltage and good overclocking
performance but increases the CPU and VRM thermal conditions.
