Chapter 3

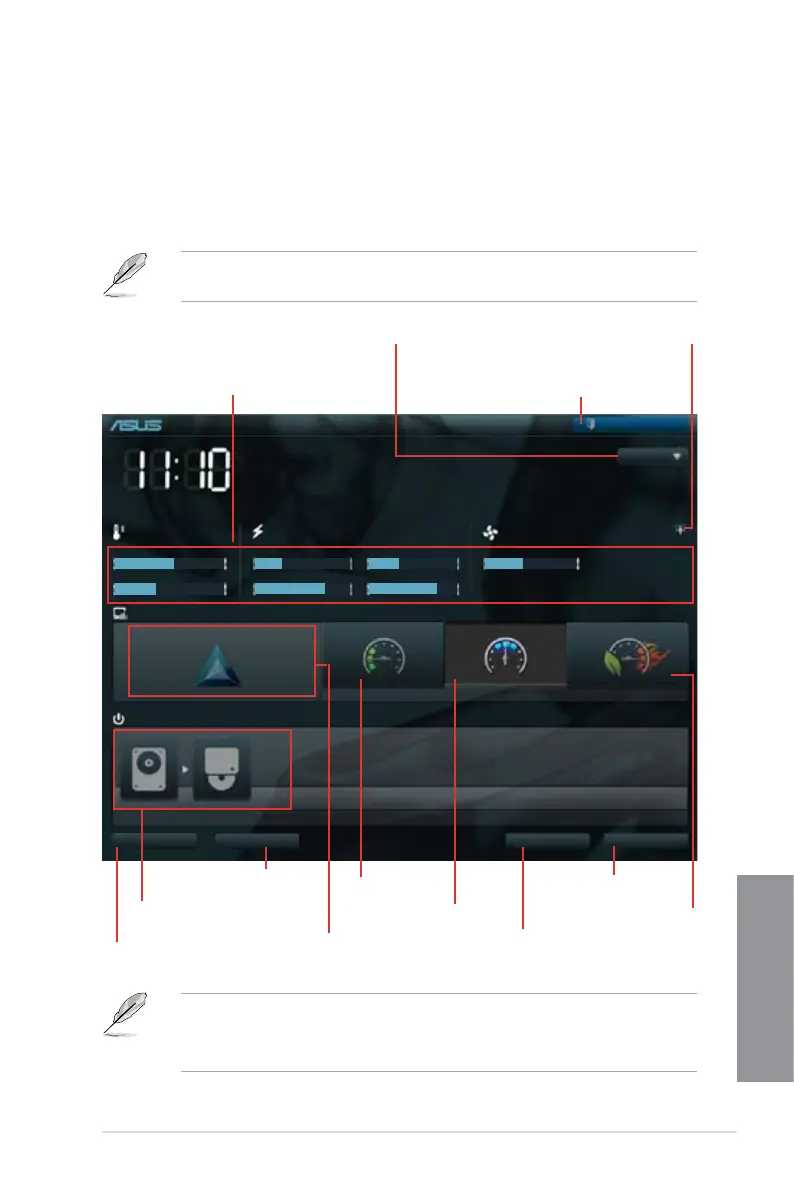

3.2.1 EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press <F7> hot
key for the advanced BIOS settings.
The default screen for entering the BIOS setup program can be changed. Refer to the
Setup Mode item in section 3.7 Boot menu for details.
• The boot device options vary depending on the devices you installed to the system.
• The
Boot Menu(F8) button is available only when the boot device is installed to the
system.
Selects the Advanced mode
functions
Exits the BIOS setup program without saving
the changes, saves the changes and resets the
system, or enters the Advanced Mode
Selects the display language of the
BIOS setup program
Displays the CPU/motherboard temperature,
CPU/5V/3.3V/12V voltage output, CPU/chassis/
power fan speed
Power Saving mode
Normal mode
ASUS Optimal mode
Loads optimized default
settings
Selects the boot device priority
Selects the boot device priority
Displays the system properties of the
selected mode on the right hand side
Click to display all fan
speeds if available
P8Z77-V PREMIUM
BIOS Version : 0202 Build Date : 11/08/2012
CPU Type : Genuine Intel(R) CPU 0 @ 3.10GHz Speed : 3400 MHz
Total Memory : 2048 MB (DDR3 1333MHz)
Exit/Advanced Mode
English
UEFI BIOS Utility - EZ Mode
Monday [03/25/2012]
Normal
Quiet
Performance Energy Saving
System Performance
Boot Menu(F8)
Default(F5)
Use the mouse to drag or keyboard to navigate to decide the boot priority.
Boot Priority
Shortcut (F3)
Advanced Mode (F7)
Displays the Advanced
mode menus
Temperature Voltage Fan Speed
CPU +113.0ºF/+45.0ºC CPU 1.248V 5V 5.160V CPU_FAN 3325RPM
CPU_OPT_FAN N/A
MB +75.2ºF/+40.0ºC 3.3V 3.344V 12V 12.248V CHA_FAN1 N/A CHA_FAN2 N/A

Asus P8Z77-V PREMIUM Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2800 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
I/O ports	1 x Thunderbolt
Controller interface type	Intel Z77
Controller 2nd interface type	Marvell PCIe 9230, ASMedia PCIe
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Cables included	SATA
LAN controller	Intel® 82579V
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
