ASUS P8Z77-V PREMIUM
1-39
Chapter 1

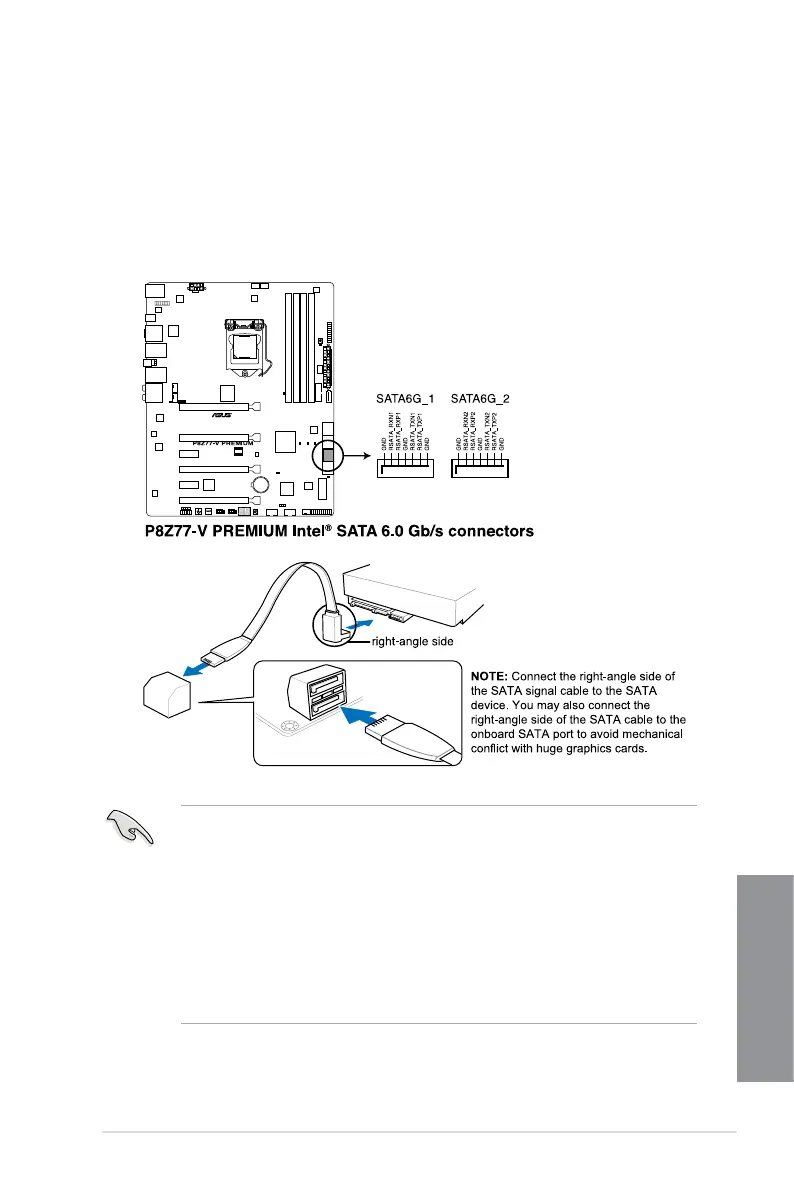

1.2.9 Internal connectors
1. Intel
®
Z77 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration with the Intel
®
Rapid Storage Technology through the onboard Intel
®
Z77
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.3 SATA Conguration for details.
• Before creating a RAID set, refer to section
5.1 RAID congurations or the manual
bundled in the motherboard support DVD.
• When using NCQ, set the SATA Mode in the BIOS to [
AHCI Mode]. Refer to section
3.5.3 SATA Conguration for details.
• You must install Windows
®
XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later versions.

Asus P8Z77-V PREMIUM Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2800 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
I/O ports	1 x Thunderbolt
Controller interface type	Intel Z77
Controller 2nd interface type	Marvell PCIe 9230, ASMedia PCIe
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Cables included	SATA
LAN controller	Intel® 82579V
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
