Chapter 3: BIOS setup
Chapter 3
3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the Advanced Mode, click Exit, then select Advanced Mode or press F7 hotkey.
Menu bar
The menu bar on top of the screen has the following main items:
Main
For changing the basic system conguration
Ai Tweaker
For changing the overclocking settings
Advanced
For changing the advanced system settings
Monitor
For displaying the system temperature, power status, and changing the
fan settings.
Boot
For changing the system boot conguration
Tool
For conguring options for special functions
Exit
For selecting the exit options and loading default settings
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled Bluetooth Controller
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Conguration >

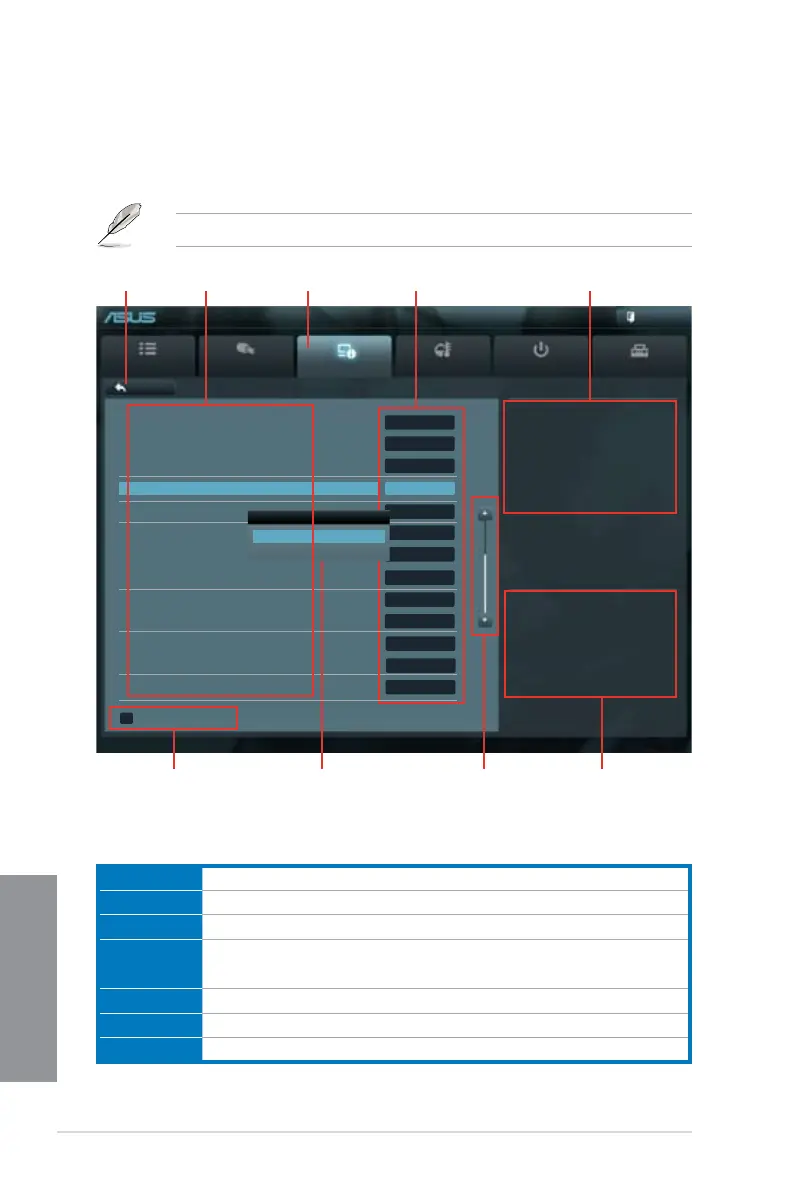

UEFI BIOS Utility - Advanced Mode
Navigation keys
General help
Menu bar
Submenu item
Conguration elds
Menu items
Scroll bar
Pop-up window
Back button
HD Audio Controller Enabled
Front Panel Type HD
SPDIF Out Type SPDIF
Bluetooth Controller Enabled
Wi-Fi Controller AUTO
Marvell Storage Controller Enabled
Marvell Storage OPROM Enabled
Marvell Storage Firmware Check and Update Enabled
ASM1061 Storage Controller (Rear) Enabled
ASM1061 Storage OPROM Enabled
Asmedia USB 3.0 Controller (USB3_E12) Enabled
ASMedia USB 3.0 Battery Charging Support Disabled
Intel LAN Controller Enabled
Bluetooth Controller
Disabled
Enabled

Asus P8Z77-V PREMIUM Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2800 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
I/O ports	1 x Thunderbolt
Controller interface type	Intel Z77
Controller 2nd interface type	Marvell PCIe 9230, ASMedia PCIe
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Cables included	SATA
LAN controller	Intel® 82579V
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
