Chapter 4: Software support
Chapter 4
B. Realtek HD Audio Manager for Windows
®
XP
• Refer to the software manual in the support DVD or visit the ASUS website at www.
asus.com for detailed software conguration.
• Due to Intel
®
Z77 platform does not support Windows
®
Vista™, Realtek HD Audio
driver is only supported by Windows® 7™/Windows
®
XP™.
• To play Blu-Ray disc, make sure to use an HDCP compliant monitor.

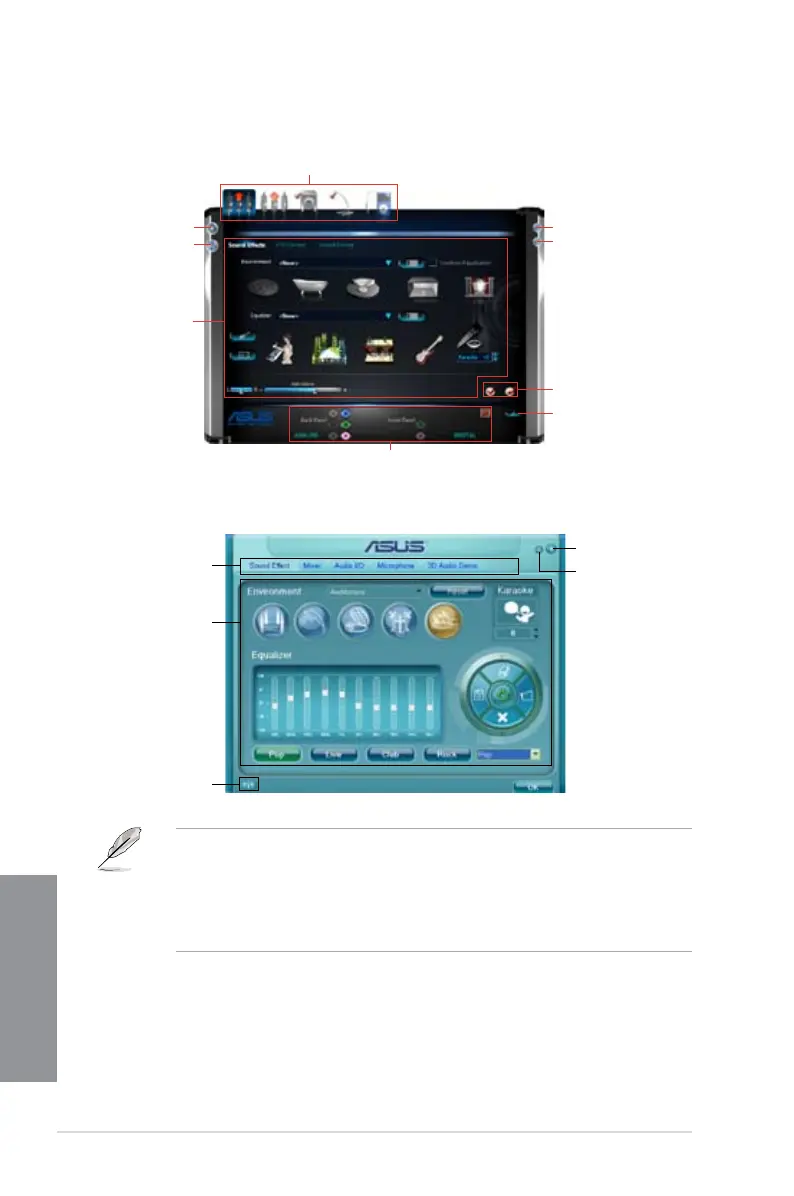

A. Realtek HD Audio Manager with DTS UltraPC II for Windows
®
7
Conguration option tabs (vary with the audio devices connected)
Analog and digital connector status
Control settings
Device advanced
settings
Information button
Exit button
Minimize button
Connector settings
Set default device buttons
Control settings
window
Conguration
options
Information button
Exit button
Minimize button

Asus P8Z77-V PREMIUM Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2800 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of SATA II connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
I/O ports	1 x Thunderbolt
Controller interface type	Intel Z77
Controller 2nd interface type	Marvell PCIe 9230, ASMedia PCIe
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC898
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Cables included	SATA
LAN controller	Intel® 82579V
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
