Asus RT-N10E User Manual

31
Chapter 5: Installing the utilities RT-N10E

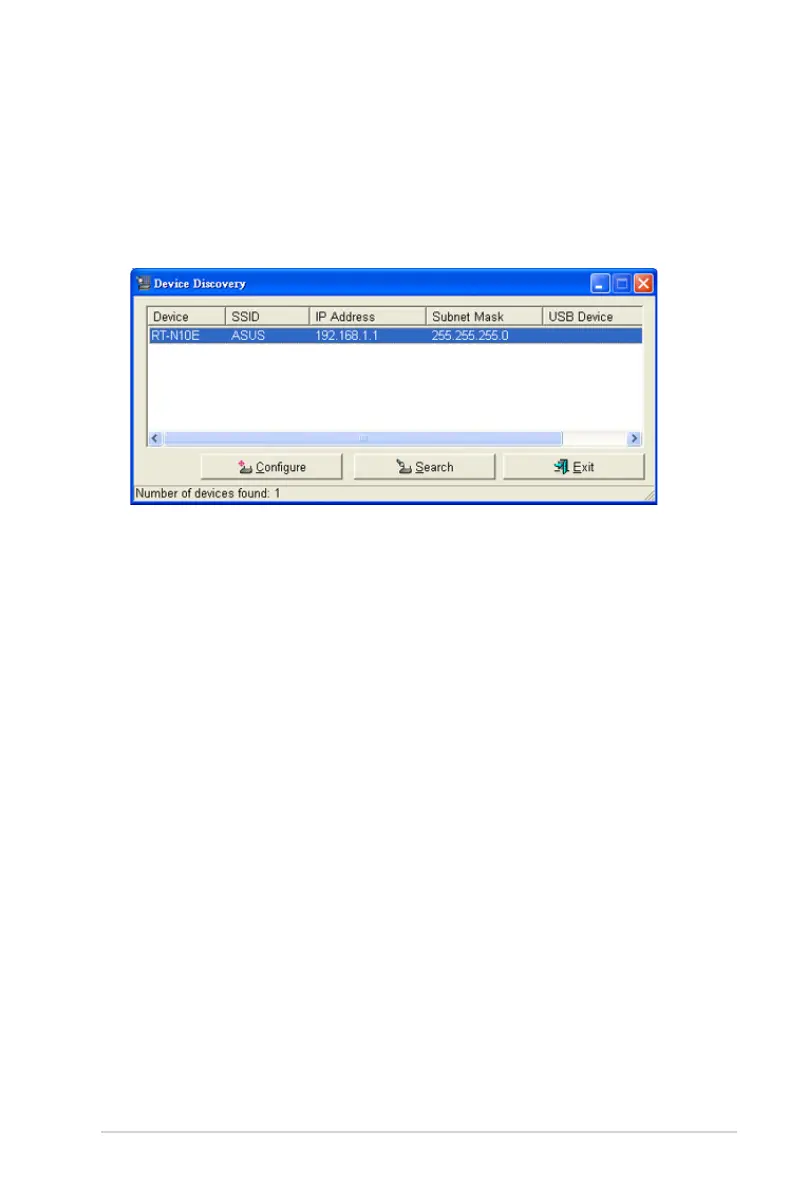

Device Discovery
Device Discovery is an ASUS WLAN utility that detects an ASUS wireless router
and enables you to congure the device.
To launch the Device Discovery utility:
From your computer’s desktop, click Start > All Programs > ASUS Utility >
RT-N10E Wireless Router > Device Discovery.
• Click Congure to access the main page congure the wireless router.
• Click Search to search for ASUS wireless routers within range.
• Click Exit to exit the application.

Asus RT-N10E Specifications

General

Frequency Band	2.4 GHz
Max Data Rate	150 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Operating Temperature	0 °C to 40 °C
Wireless Standard	IEEE 802.11b/g/n
Security	64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Firewall	SPI Firewall
Storage Temperature	-20°C to 70°C
Antenna	1 external antenna
Storage Humidity	5% to 90% non-condensing
