Asus RT-N13 User Manual

27
Chapter 5: Installing the utilities RT-N13

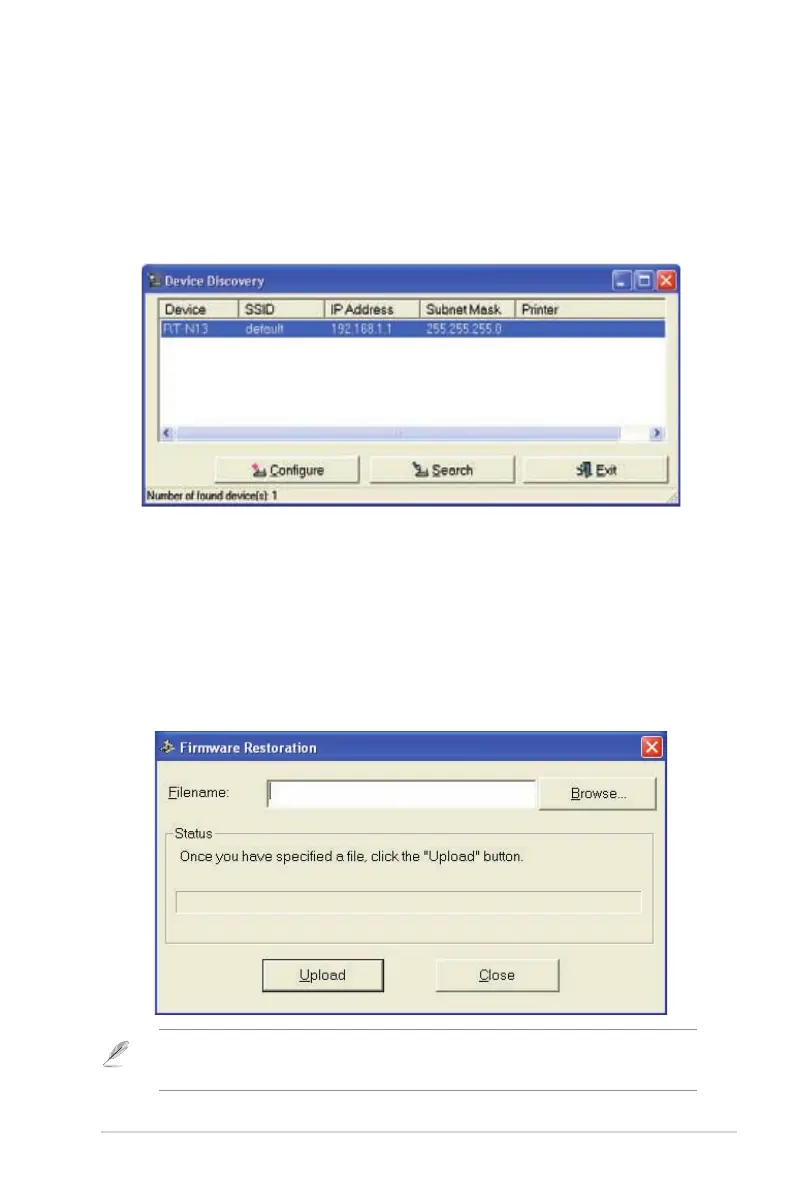

Device Discovery
Device Discovery is an ASUS WLAN utility which detects an ASUS Wireless

To launch the Device Discovery utility:
  Start > All Programs > ASUS Utility
> Device Discovery.
Firmware Restoration
Firmware Restoration is a utility that searches for an ASUS Wireless Router that


To launch the Firmware Restoration utility:
  Start > All Programs > ASUS Utility
> Firmware Restoration.
Note
Chapter 4:
Conguring via the web GUI for more details.

Asus RT-N13 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Supports ISDN connection	No
Ethernet LAN interface type	Fast Ethernet
Input voltage	100 - 240 V
Frequency range	2.4 - 2.5 GHz
Input frequency	50 / 60 Hz
Dimensions (WxDxH)	- mm
Power requirements	5V DC, 2.5A
Networking features	Fast Ethernet, WLAN, WAN
Filtering description	URL
Output power description	15.5~16.5dBm(g), 15.8~19.5dBm(b), 15.8~19.5dBm(n)
Supported data transfer rates	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300Mbps
WLAN data transfer rates supported	300 Mbit/s
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
Product color	White
Supported network protocols	PPTP, PPPoE, L2TP
Antenna gain level (max)	15.8 dBi

Weight and Dimensions

Weight	- g
