Asus TUF X470-PLUS GAMING User Manual

ASUS TUF X470-PLUS GAMING
2-11
Chapter 2

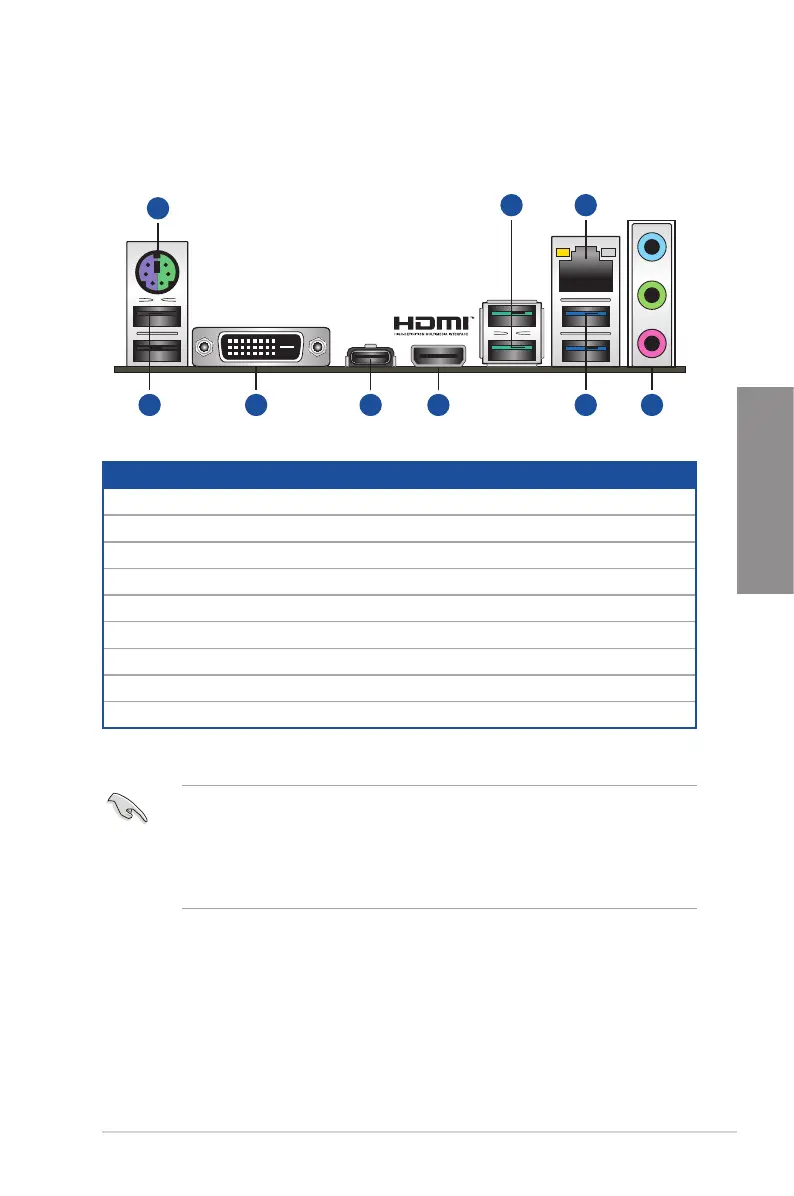

2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
*and**:RefertothetablesonthenextpageforLANportLEDs,andaudioportdenitions.
Rear panel connectors
1. PS/2 keyboard/ mouse combo port
2. USB 3.1 Gen 2 (up to 10Gbps) ports
3. LAN (RJ-45) port*
4. Audio I/O ports**
5. USB 3.1 Gen 1 (up to 5Gbps) ports
6. HDMI port
7. USB 3.1 Gen 1 (up to 5Gbps) port (Type-C)
8. DVI-D port
9. USB 2.0 ports
3
59 78 6 4
2
1
 USB3.1Gen2/Gen1devicescanonlybeusedfordatastorage.
 DuetothedesignofAMDAM4serieschipset,allUSBdevicesconnectedtotheUSB
2.0 and USB 3.1 Gen 1 / Gen 2 ports are controlled by the xHCI controller.
 WestronglyrecommendthatyouconnectUSB3.1Gen2devicestoUSB3.1Gen2
ports for faster and better performance from your USB 3.1 Gen 2 devices.

Asus TUF X470-PLUS GAMING Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200 MHz
Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	32 Mbit
System Management BIOS (SMBIOS) version	3.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD X470
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64
Cables included	SATA

Weight and Dimensions

Depth	244 mm
Width	305 mm
