ASUS Z87-WS
4-7
Chapter 4

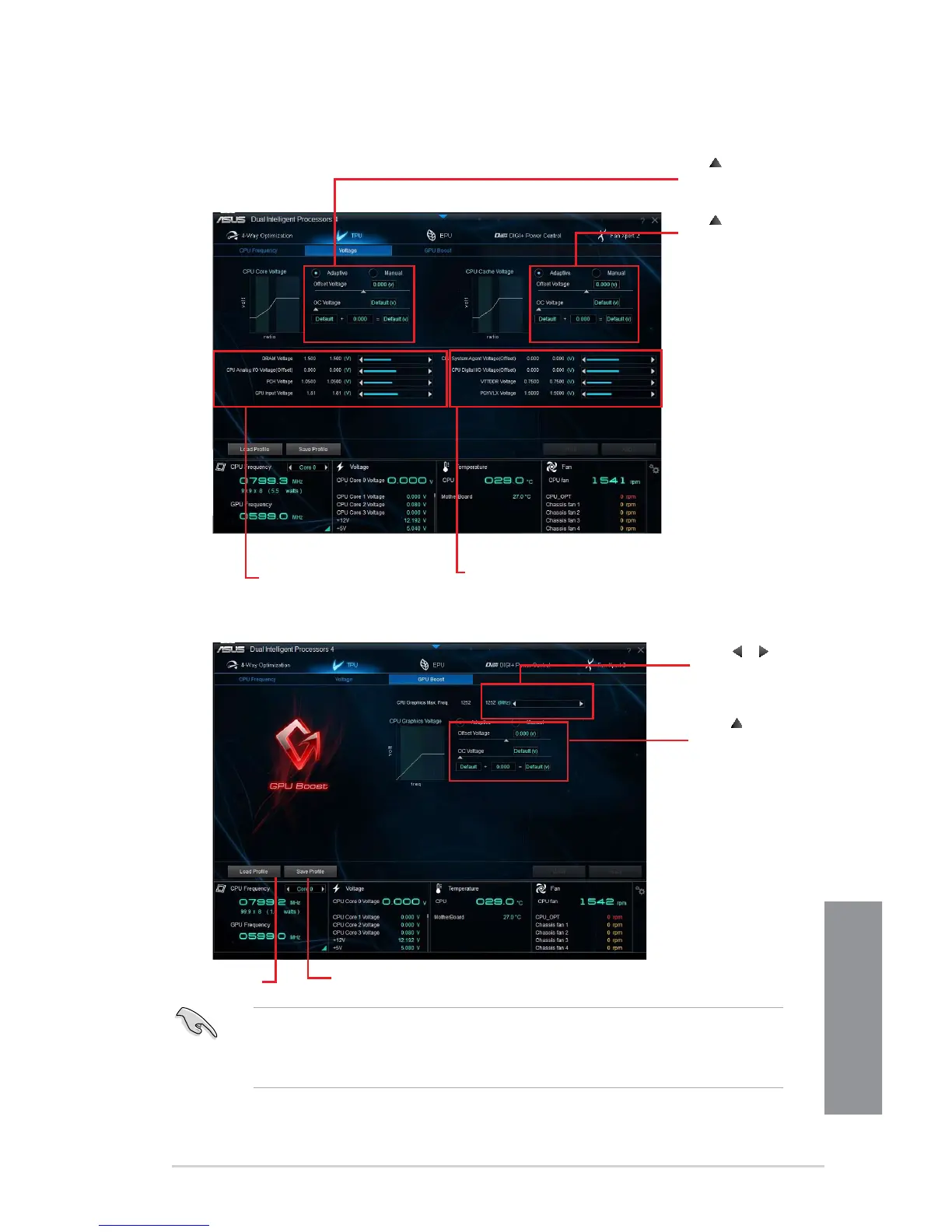

Voltage
Drag the slider to adjust
DRAM, CPU Analog I/O,
PCH, and CPU Input
voltages
Drag the slider to adjust CPU System
Agent, CPU Digital I/O, VTTDDR, and
PCHVLX voltages
Drag to adjust
Offset Voltage and
OC Voltage offset
Drag to adjust
Offset Voltage and
OC Voltage offset
GPU Boost
Click to save settings
as a prole
Click to load a
saved prole
• Overclocking results vary with the CPU model and the system conguration.
• We recommend that you set up a better thermal environment to prevent overheating
from damaging the motherboard.
Click or to
adjust the CPU
Graphics Max
Frequency
Drag to
adjust Offset
Voltage and
OC Voltage
offset

Asus Z87-WS Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of EATX power connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 4x8
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
