4.3.15 ASUS Dr. Power Utility
ASUS Dr. Power is a monitoring utility that provides notications when the power supply
is unable to provide sufcient power to the system. You can choose to allow continuous
notications or stop messages from appearing until the next time you reboot your computer.
The utility is used to monitor changes in the power supplied to the system that may affect
performance and system stability.
ASUS Dr. Power Utility runs on your system only when the Dr. Power switch is enabled.
(Please refer to 1.2.6 Onboard buttons and switches for additional details). If the switch
is disabled, the Dr. Power icon will not be available on the Windows
®
notication area.
Installing Dr. Power Utility
To install Dr. Power on your computer:
1. Place the support DVD in the optical drive. The setup window will be displayed if
Autorun is enabled on your system.
2. Click the
Drivers tab and then click ASUS Dr. Power.
3. Follow the instructions to complete installation.

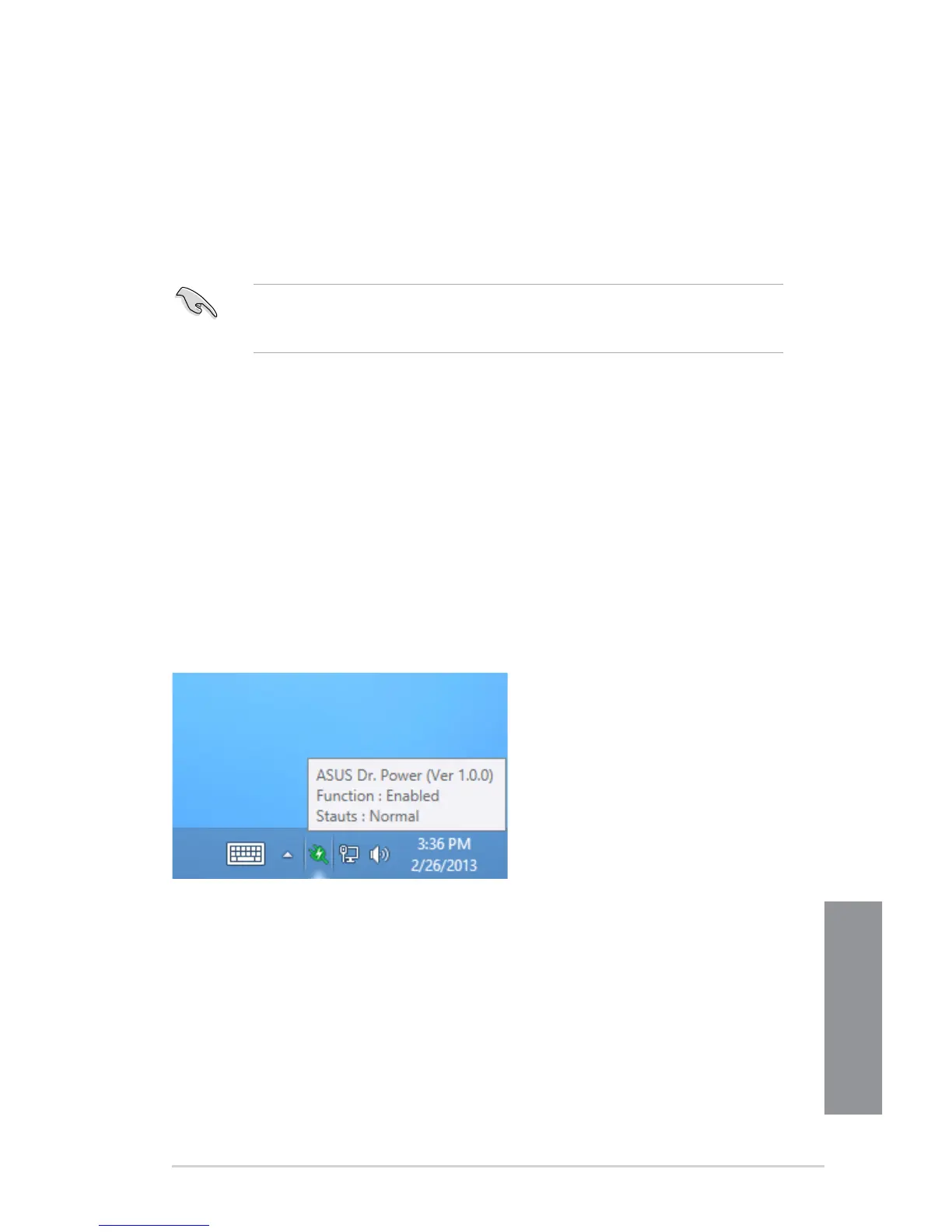

Using Dr. Power
After you complete installation, ASUS Dr. Power Utility will appear on the Windows
®
notication area. Place your mouse pointer over the Dr. Power icon to display current power
status.
Right-click on the Dr. Power icon on the notication area and click Event Notication to
disable or enable messages from the utility.

Asus Z87-WS Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of EATX power connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 4x8
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
