Chapter 6: Multiple GPU technology support
Chapter 5
6.1.3 Installing two CrossFireX™ graphics cards
The following pictures are for reference only. The graphics cards and the motherboard
layout may vary with models, but the installation steps remain the same.

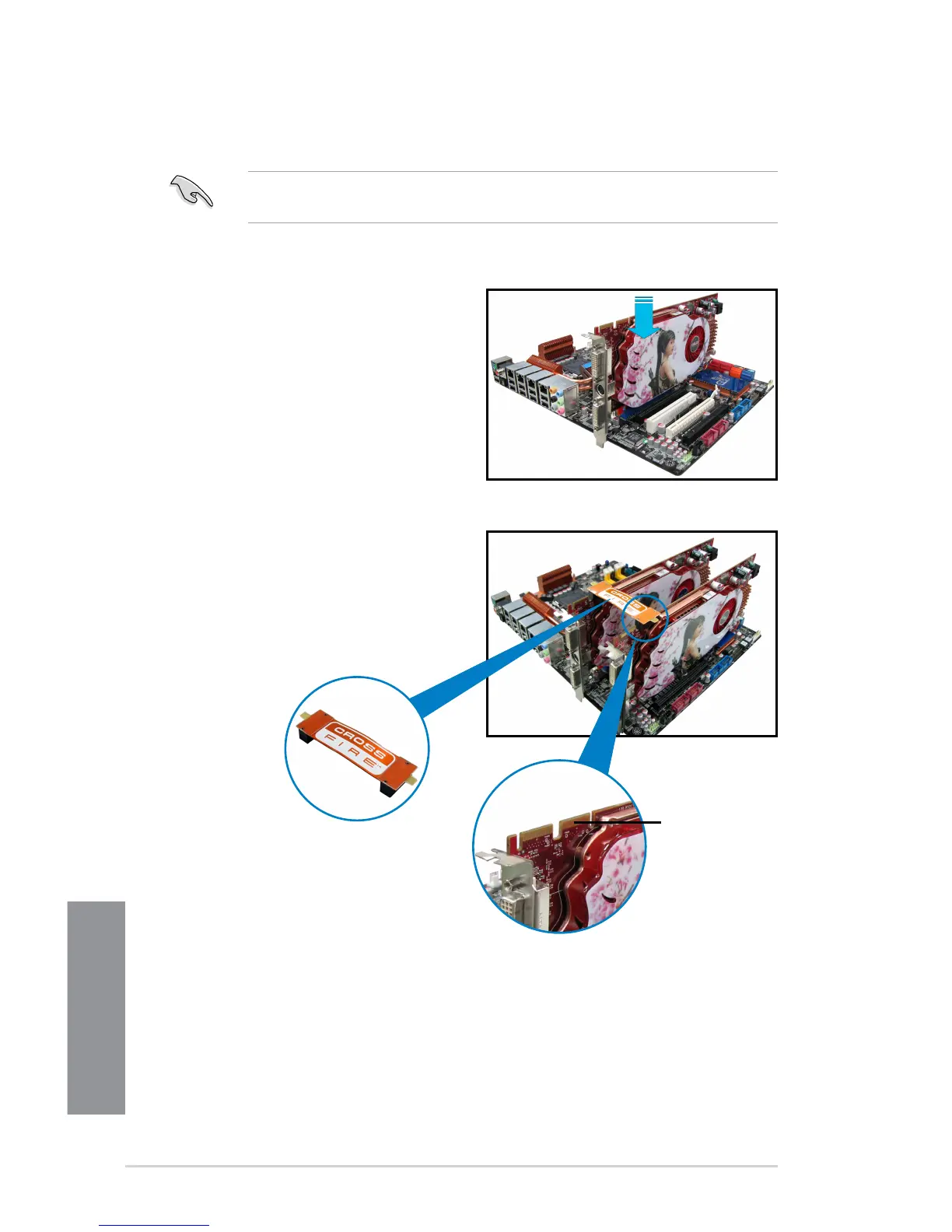

1. Prepare two CrossFireX-ready graphics cards.
Goldngers
CrossFireX bridge
(bundled with
graphics cards)
2. Insert the two graphics cards into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 1 in this user manual
for the locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.
4. Align and rmly insert the CrossFireX
bridge connector up to the goldngers
on each graphics card. Ensure that the
connector is rmly in place.

Asus Z87-WS Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of EATX power connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 4x8
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
