2.4 Condensate system

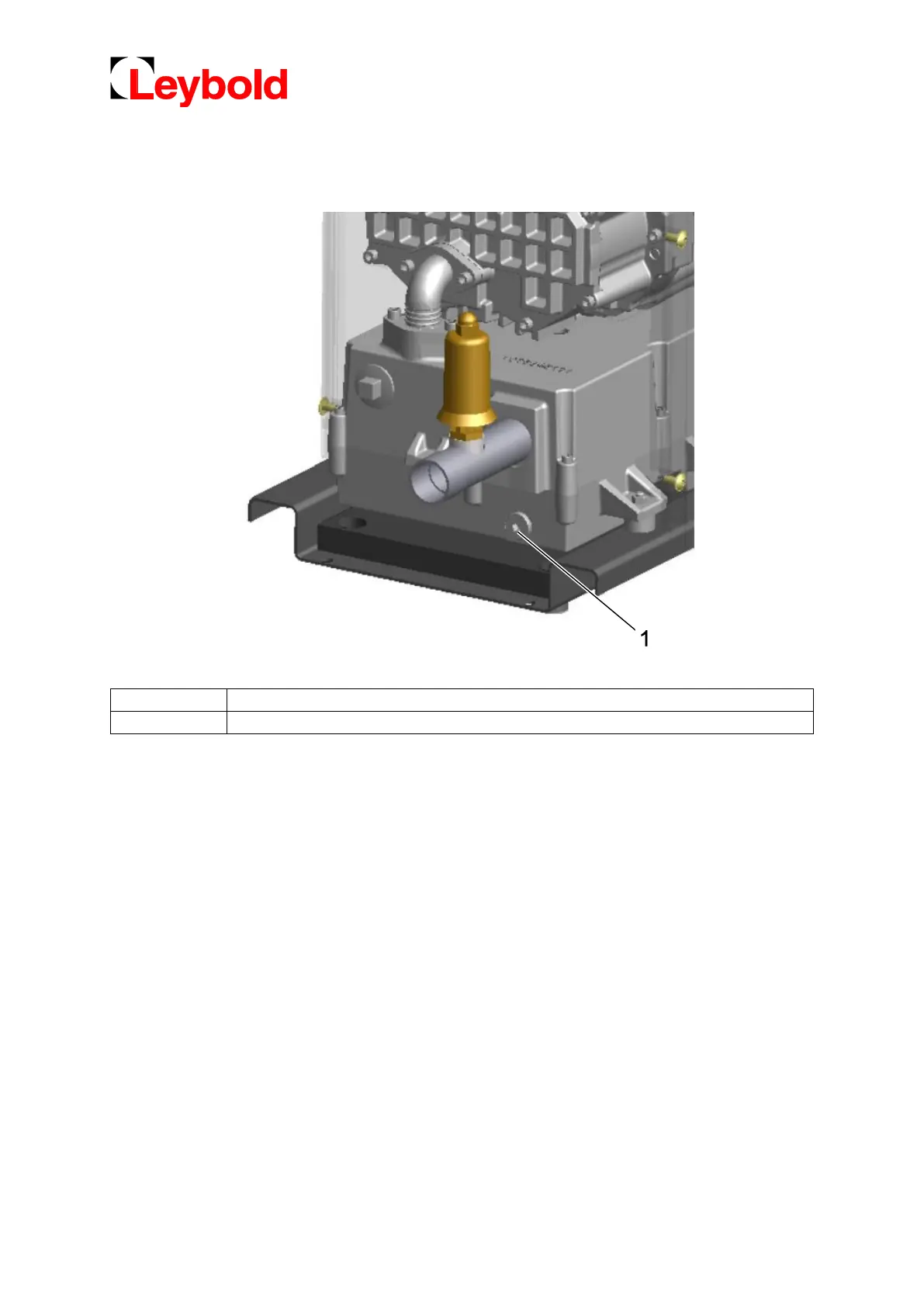

Figure 8 – Position of Drain port
A port (1) at the base of the exhaust silencing chamber allows draining of the condensate.
Humid versions of this vacuum pump may have a manual drain valve / tap installed to facilitate easy
draining.
From factory this drain point is sealed with a threaded plug, but can be exchanged by a connector with
tube to drain the condensate.
Consult local regulations which are applicable for water drainage.
