Atlas Copco FX 41N User Manual

ENGLISH
Cod. 9828093398 00 - Edition 10/2020 - 11
15.0 PARTIAL ROUTINE MAINTENANCE
BEFORE CARRYING OUT ANY MAINTENANCE JOBS IT IS OBLIGATORY TO STOP THE MACHINE AND DISCONNECT IT FROM THE
POWER MAINS AND FROM THE COMPRESSED AIR DISTRIBUTION NETWORK.
15.1 MAINTENANCE SCHEDULE
These maintenance intervals are recommended for work environments that are not dusty and are will ventilated. For
particularly dusty environments, double the frequency of controls.
Each Week
Condensate drain: Clean the filter of the steam trap
Each Monthly
Condenser: Clean the condenser fins to remove eventual dust.

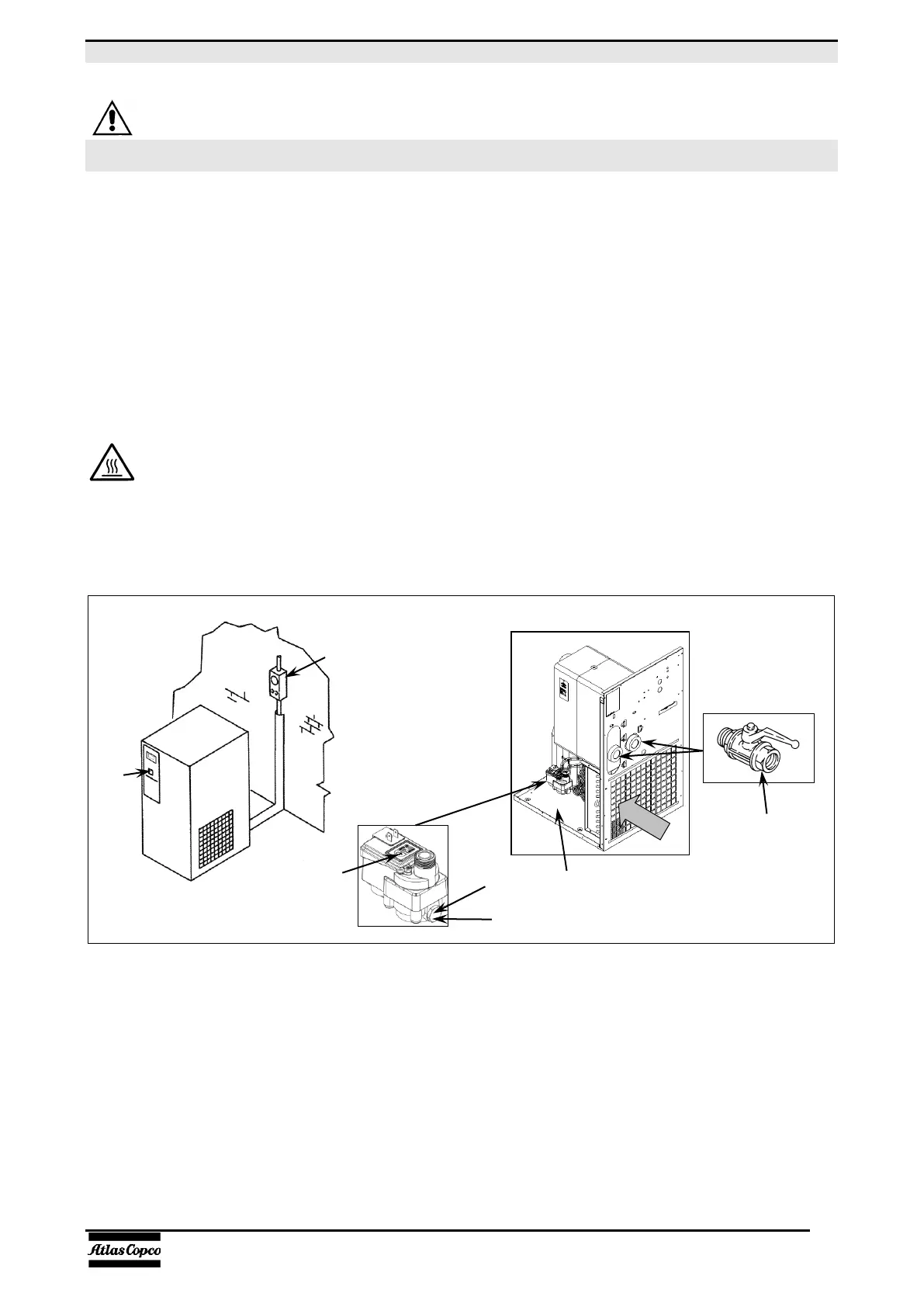

15.2 CLEANING OF THE AUTOMATIC CONDENSWATER DISCARGER FILTER (Fig. 10)
Clean the filter of the steam trap.
Proceed as follows:
- Close the valve Ref. 1 Fig. 10
- Release the pressure in the dryer by pressing the condensate drain “TEST” pushbutton locate on the steam trap
Ref. 2 Fig. 10.
- Switching the rocker switch in “0” position Ref. 3 Fig. 10
- Turn off the supply (see disconnector switch Ref. 4 Fig. 10)
HOT PARTS INSIDE
- Remove the panels Ref. 5
- Remove the stopper Ref. 6
- Remove the filter Ref. 7
- Clean the filter Ref. 5 with a jet of air, working from inside to outside
- Install the filter, fix the plug Ref. 7 - 6
- Close the panels Ref. 5
15.3 CLEANING THE CONDENSER (Fig. 10)
The condenser must be cleaned every month.
Proceed as follows:
- Switching the rocker switch in “0” position Ref. 3 Fig. 10
- Turn off the supply (see disconnector switch Ref. 4 Fig. 10)
- Remove the panels Ref. 5 Fig. 10
- Clean the condenser fins Ref. 1 with compressed air (Fig. 10) DO NOT USE WATER OR SOLVENTS
- Close the panels Ref. 5 Fig. 10
1
FIG. 10
6
7
3
4
2
5

Atlas Copco FX 41N Specifications

General

Brand	Atlas Copco
Model	FX 41N
Category	Dryer
Language	English
