12.0 INSTALLATION
12.1 POSITIONING
After unpacking the equipment and preparing the dryers room, put the machine into position, checking the following
items:

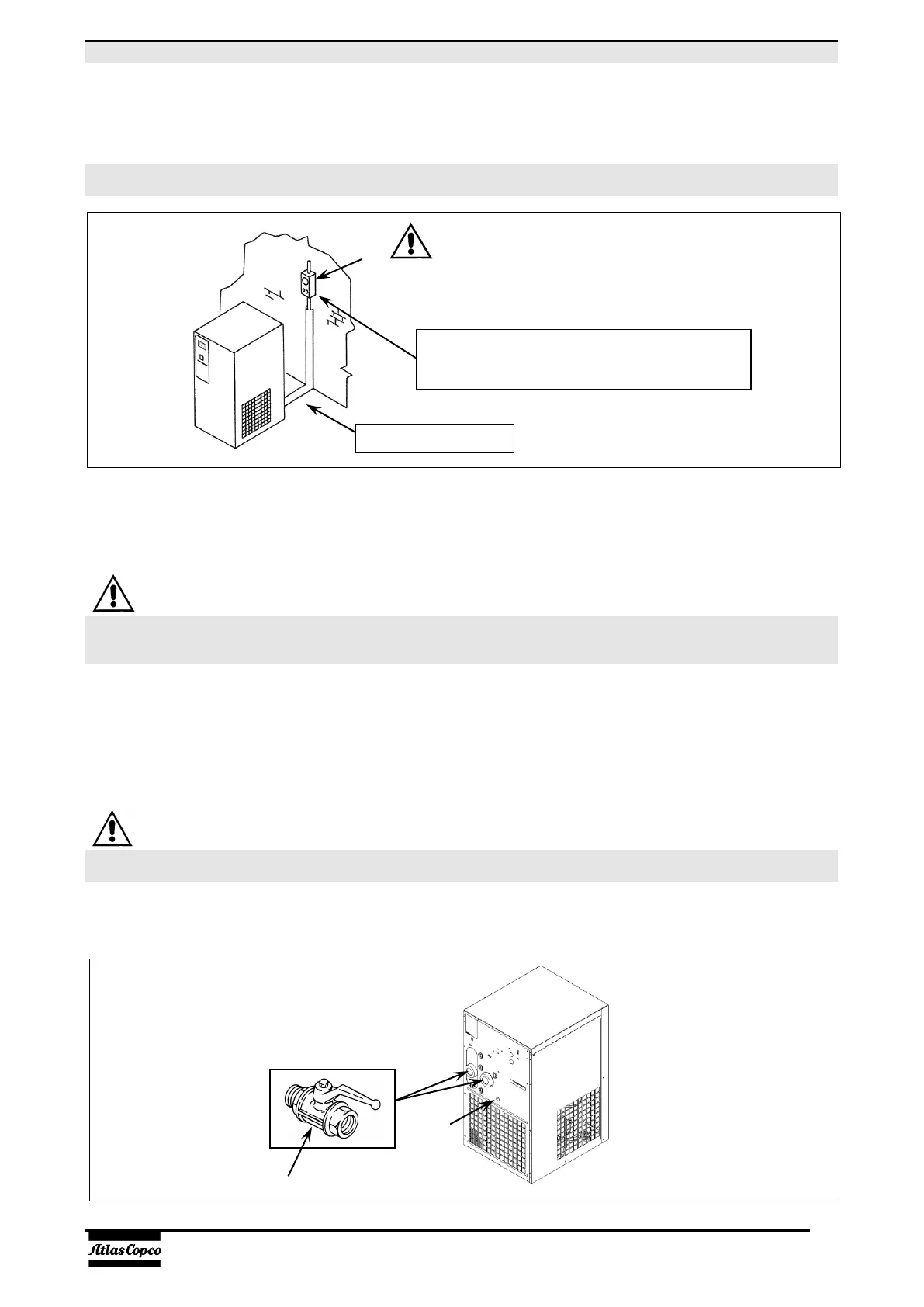

⚫ ensure that there is sufficient space around the machine to allow maintenance (see Fig. 6).
ENSURE THAT THE OPERATOR CAN SEE THE WHOLE MACHINE FROM THE CONTROL PANEL AND CHECK THE PRESENCE OF ANY
UNAUTHORIZED PERSONS IN THE VICINITY OF THE MACHINE.
12.2 ELECTRICAL CONNECTION
⚫ Check that the supply voltage is the same as the value indicated on the machine data plate.
⚫ Check the condition of the line leads and ensure that there is an efficient earth lead.
⚫ Ensure that there are disconnector switch Ref. 1 Fig. 6 and fuses upstream the machine. For details (size and
type) see wiring/service diagram.
ONLY PROFESSIONALLY SKILLED PERSONNEL MAY HAVE ACCESS TO THE ELECTRIC PANEL. SWITCH OFF THE POWER BEFORE
OPENING THE DOOR OF THE ELECTRIC PANEL. COMPLIANCE WITH THE REGULATIONS IN FORCE CONCERNING ELECTRIC PLANTS
IS FUNDAMENTAL FOR OPERATOR SAFETY AND FOR THE PROTECTION OF THE MACHINE.
12.3 CONNECTION TO THE COMPRESSED AIR NETWORK
Fit a manual interception valve Ref. 1 between the machine and the compressed air network so that the dryer may be
isolated during maintenance operations (see figure 7 ).
Drainage of condensate Rif. 2 Fig. 7 (automatic) are led outside the machine with a flexible pipe that may be inspected.
Drainage must comply with the local regulations in force.
⚫ All refrigerant dryers shall be equipped with proper pre-filter at closest position to dryer air inlet (to be replaced
according to service plan: once per year or even before in case of particular high humidity ambient conditions).
ALL DAMAGE DUE TO THE FAILURE TO COMPLY WITH THESE NDICATIONS CANNOT BE ATTRIBUTED TO THE MANUFACTURER AND
MAY CAUSE INVALIDITY OF THE GUARANTEE CONDITIONS.
12.4 STARTING UP
See part B of this manual, Chpter 18.0
