13.0 DIMENSIONS AND TECHNICAL DATA
TYPE
Weight
Kg. (lb)
Freon R410A
Kg. (lb)
Nominal
Power W (hp)
bar (psi)
MAX.
230/60 Hz
115/60 Hz
230/60 Hz
115/60 Hz
230/60 Hz
115/60 Hz
230/60 Hz
115/60 Hz
FX 41N
62 (137)
0,6 (1,32)
0,6 (1,32)
849 (1,13)
880 (1,18)
95 (0,13)
105 (0,14)
944 (1,26)
985 (1,32)
bar 14 (203)
FX 48N
62 (137)
0,6 (1,32)
0,6 (1,32)
849 (1,13)
880 (1,18)
95 (0,13)
105 (0,14)
944 (1,26)
985 (1,32)
bar 14 (203)
FX 61N
60 (132)
-
0,6 (1,32)
-
892 (1,96)
-
105 (0,14)
-
997 (1,34)
bar 14 (203)
FX 69N
62 (137)
0,6 (1,32)
0,6 (1,32)
1400 (1,88)
1395 (1,87)
100 (0,13)
105 (0,14)
1500 (2,01)
1500 (2,01)
bar 14 (203)
FX 86N
82 (181)
0,8 (1,76)
-
1444 (1,94)
-
190 (0,26)
-
1634 (2,20)
-
bar 14 (203)
FX 108N
82 (181)
0,75 (1,65)
0,75 (1,65)
1762 (2.37)
-
190 (0,26)
-
1952 (2,62)
-
bar 14 (203)
Reference conditions:
Limit conditions:
Ambient temperature 25 °C (77°F)
Max. ambient temperature 43 °C (110°F)
Inlet air temperature 35 °C (95°F)
Min. ambient temperature 5 °C (41°F)
Working pressure 7 bar (101,5 psi)
Max. inlet air temperature 55 °C (131°F)
Max. working pressure 14 bar (203 psi)

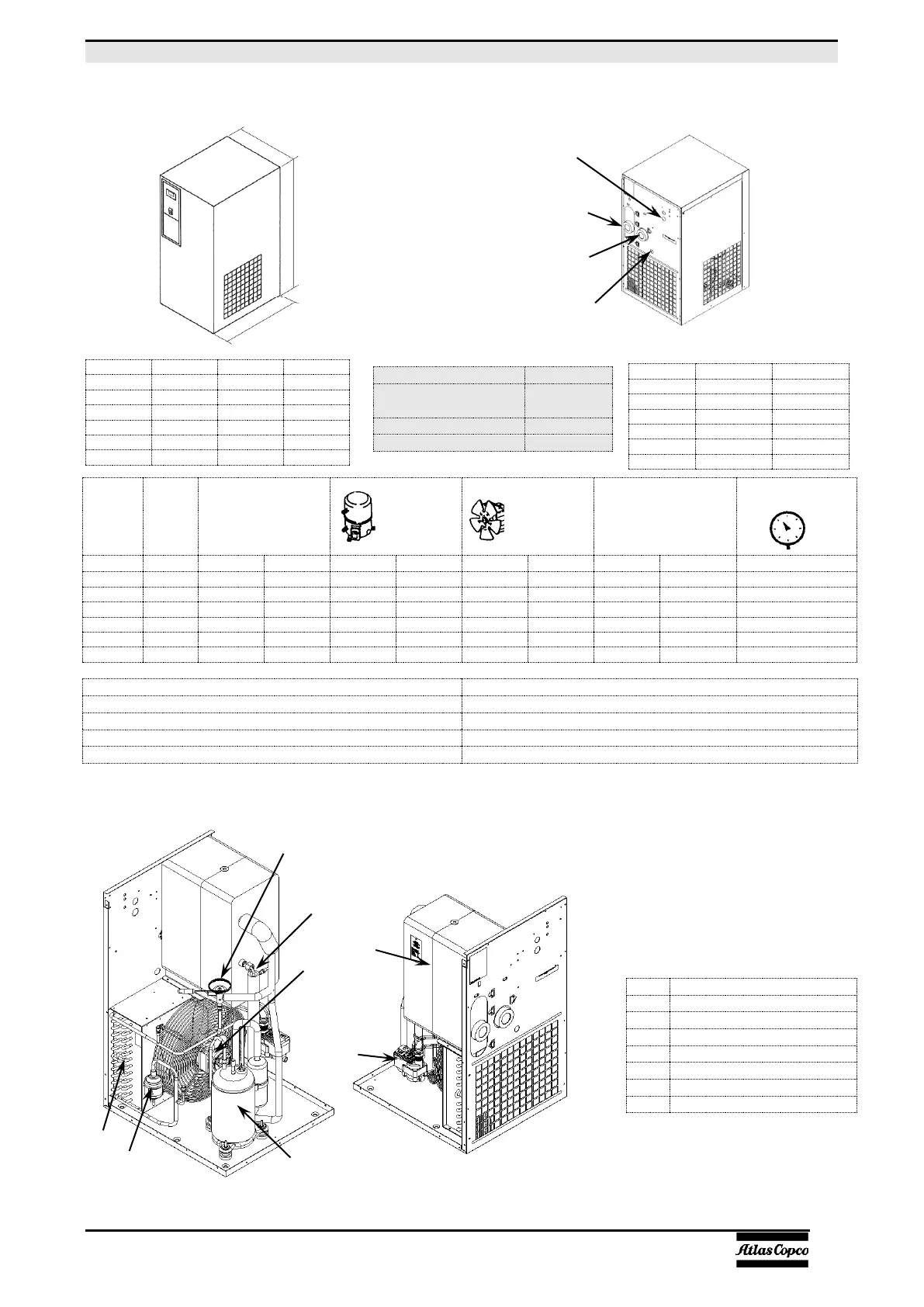

14.0 MACHINE ILLUSTRATION
14.1 GENERAL LAY-OUT
Nominal
Power
W (hp)
TYPE
A
B
FX 41N
1”1/2 GAS F.
1”1/2 GAS F.
FX 48N
1”1/2 GAS F.
1”1/2 GAS F.
FX 61N
1”1/2 GAS F.
1”1/2 GAS F.
FX 69N
1”1/2 GAS F.
1”1/2 GAS F.
FX 86N
1”1/2 GAS F.
1”1/2 GAS F.
FX 108N
1”1/2 GAS F.
1”1/2 GAS F.
TYPE
L
W
H
FX 41N
460 (18,11)
557 (21,93)
789 (31,06)
FX 48N
460 (18,11)
557 (21,93)
789 (31,06)
FX 61N
460 (18,11)
557 (21,93)
789 (31,06)
FX 69N
460 (18,11)
557 (21,93)
789 (31,06)
FX 86N
580 (22,83)
557 (21,93)
899 (35,39)
FX 108N
580 (22,83)
557 (21,93)
899 (35,39)
Nominal
Power
W (hp)
Refrigerant gas
(1)
GWP
100
(2)
R-410A
2088
(1)
According to ISO 817
(2)
According to EN-378-1
(A) AIR INLET
(B) AIR OUTLET
ELECTRICAL CABLE
CONDENSATE
DRAINING
H
W
L
FIG. 8
6
4
5
2
7
8
1
3
1
Refrigerant compressor
2
Condenser
3
Motor fan
4
Evaporator
5
Condensate drain
6
Hot gas by-pass valve
7
Refrigerant filter
8
Expansion capillary tube
