3.2 Control panel
Elektronikon regulator

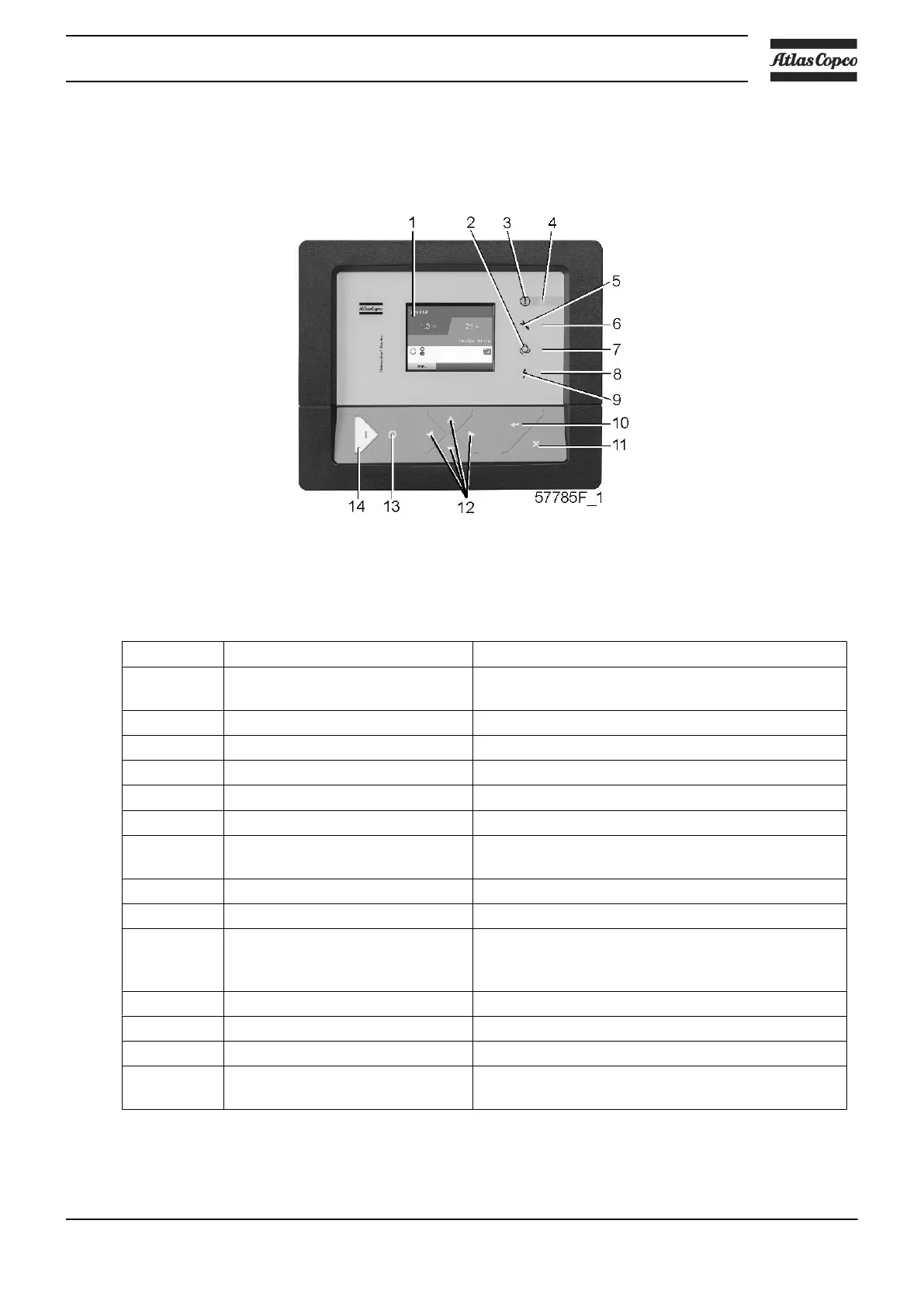

Control panel
Parts and functions
Reference Designation Function
1 Display Shows the compressor operating condition and a
number of icons to navigate through the menu.
2 Pictograph Automatic operation
3 Pictograph General alarm
4 General alarm LED Flashes if a shut-down warning condition exists.
5 Pictograph Service
6 Service LED Lights up if service is needed
7 Automatic operation LED Indicates that the regulator is automatically controlling
the compressor.
8 Voltage on LED Indicates that the voltage is switched on.
9 Pictograph Voltage on
10 Enter key Key to select the parameter indicated by the horizontal
arrow. Only the parameters followed by an arrow
pointing to the right can be modified.
11 Escape key To go to previous screen or to end the current action
12 Scroll keys Keys to scroll through the menu.
13 Stop button Button to stop the compressor. LED (7) goes out.
14 Start button Button to start the compressor. LED (7) lights up
indicating that the Elektronikon regulator is operative.
Instruction book
2920 7104 10 21
