2.6 Control panel

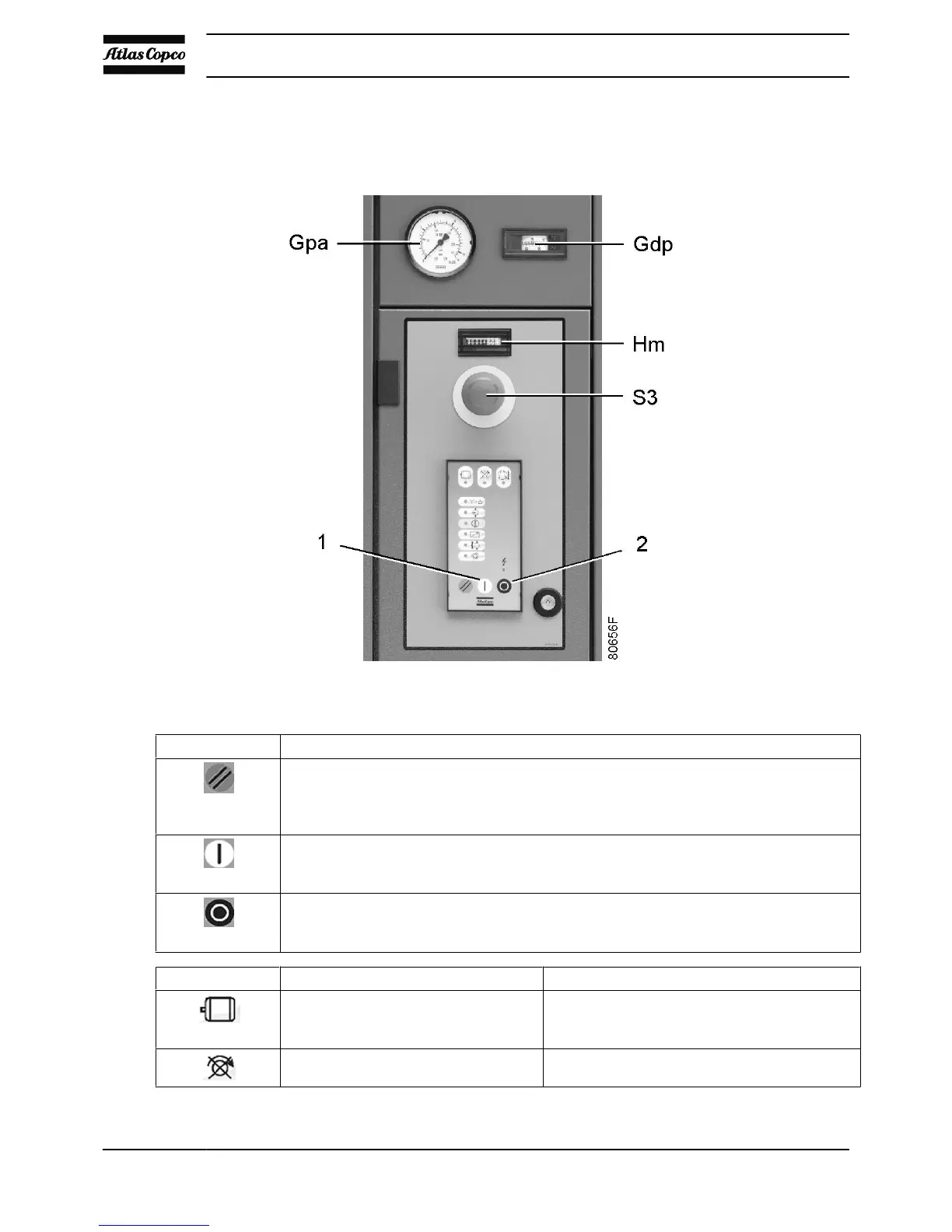

Control panel GX 7 and GX 11
Symbol Description
RESET button.
Pressing the button cancels the stored alarm indication.
When pressing the button during more than 3 seconds, the central control unit is tested:
all the LEDs must be on.
START button.
Pressing the button switches on the compressor. The motor starts 25 seconds after the
button is pushed.
STOP button.
Pressing the button starts the compressor switch-off phase: the compressor runs idle
during 120 seconds (2 minutes) before stopping.
Symbol Led flashing Led on
The motor overload (FM1) has switched
off the motor. The NC contact of FM1 is
open.
The NC contact of motor overload (FM1) is
closed again, but the fault is not yet reset.
Not applicable Not applicable
Instruction book
18 2920 7054 00
