2.2 Air flow

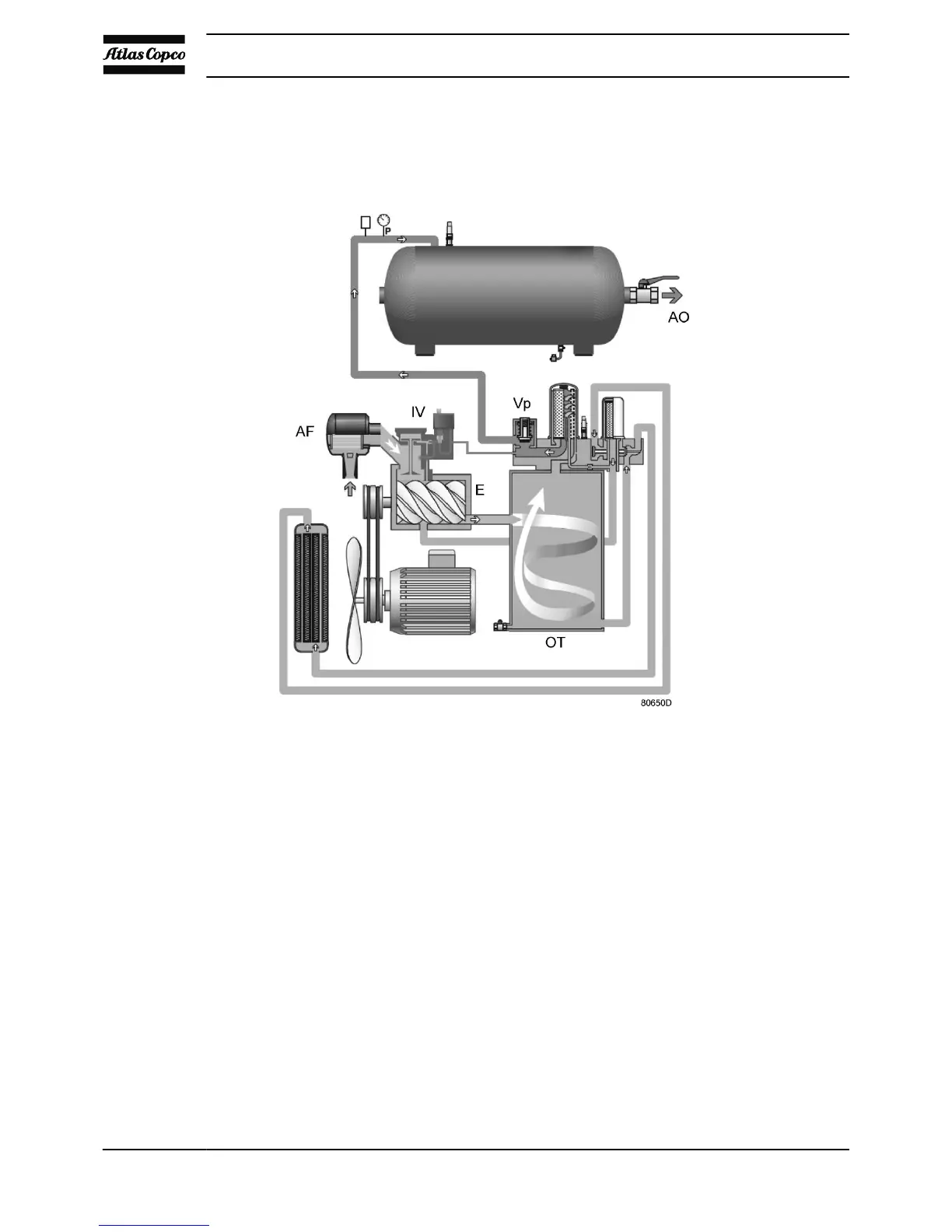

Flow diagram
Air flow, GX 7 and GX 11 Pack (tank-mounted)
Air flow (Pack version):
Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is compressed.
Compressed air and oil flow into oil separator/tank (OT). The air is discharged via minimum pressure valve
(Vp) towards the air outlet (AO).
Instruction book
12 2920 7054 00
