General instructions
Step Action
1 Ensure that the supply voltage matches the voltage on the data plate.
2 Install an isolating switch near the compressor.
For Full-Feature compressors: fit an isolating switch near the dryer.
3 Fit fuses in the incoming wiring. Check the condition of all incoming wiring and make
connections. See Electrical diagrams.

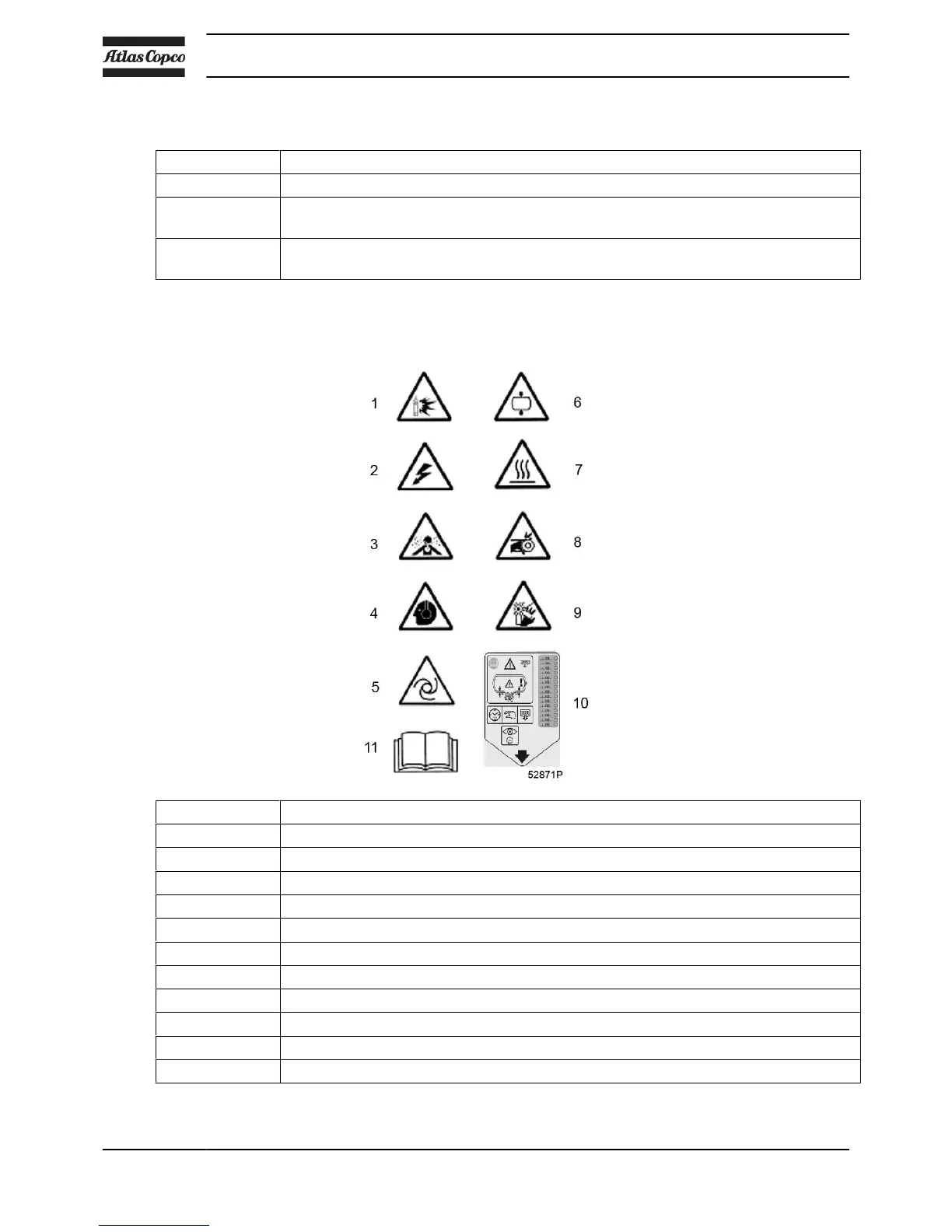

3.4 Pictographs
Ref. Description
1 Warning: possible air/fluid discharge
2 Warning: voltage
3 Warning: air must not be inhaled
4 Warning: wear ear protectors
5 Warning: machine may start automatically
6 Warning: pressure
7 Warning: hot parts
8 Warning: moving parts
9 Warning: rotating fan
10 Drain the condensate daily and inspect the vessel yearly. Note down the inspection dates.
11 Read the instruction manual
Instruction book
38 2920 7105 31
