Atlas Copco HB Series User Manual

Automatic lubrication
The hydraulic breaker is lubricated automatically by
the ContiLube
®
II.
The ContiLube
®
II has been installed near the service
opening in the upper section of the breaker box.
Instructions on how to operate and maintain the
ContiLube
®
II is described in a seperate
documentation.
♦
If you have questions how to use the ContiLube
®
II,
contact the Atlas Copco Customer Center/dealer
in your area.

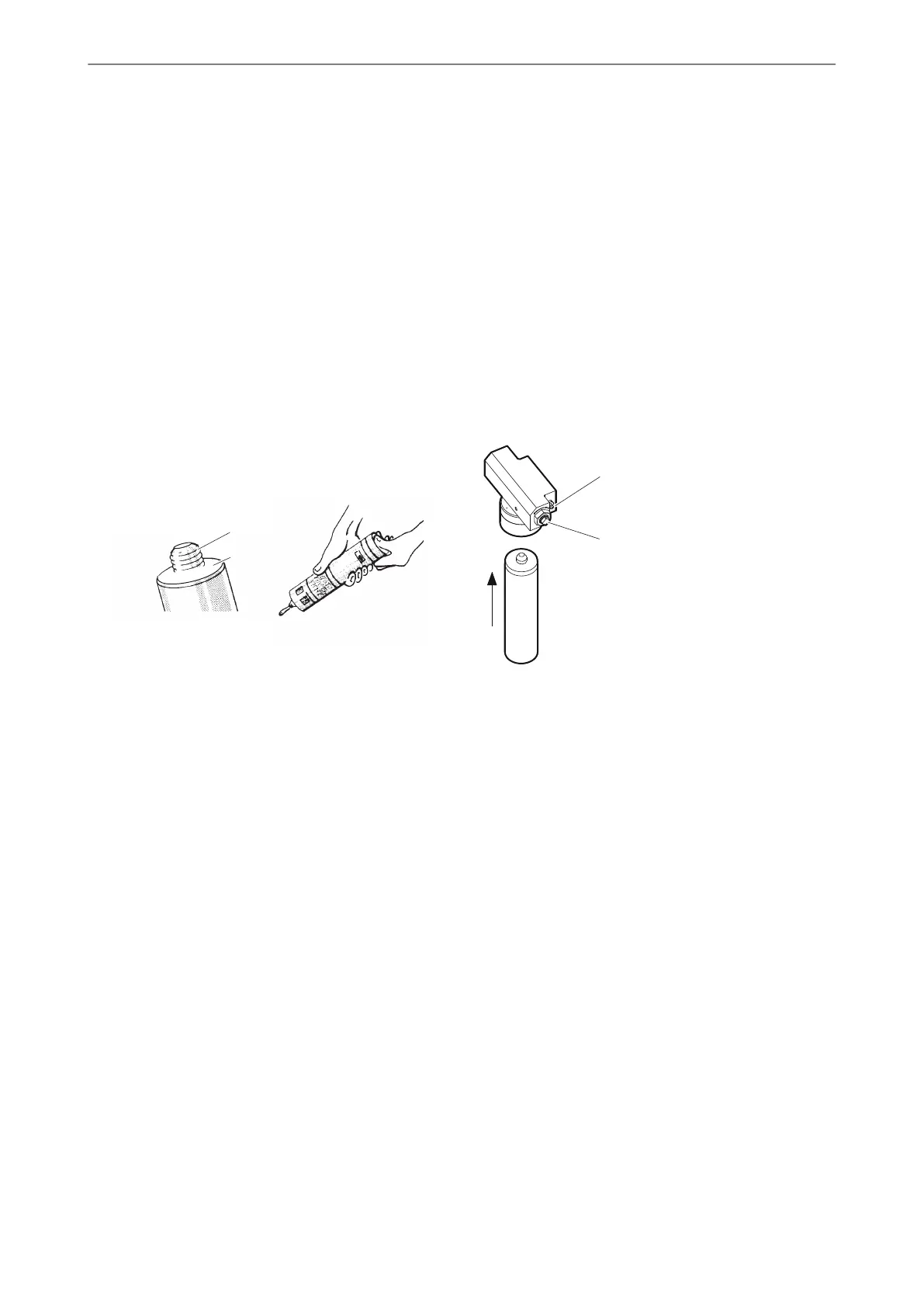

Replacing the lubricant cartridge
♦
Unscrew and remove the empty lubricant cartridge
and the old seal by turning counter clockwise.
♦
Remove the cover from the new cartridge. Make
sure not to damage the sealing cone (A).
♦
Place the seal (B) on the cartridge.
A
B
♦
Use your thumb to push the cartridge piston down
until lubricant escapes from the screw thread.
♦
Screw the cartridge until the stop into the guide
hole of the grease pump.
The ContiLube
®
II is ready for use.
ContiLube
®
II operation
Please remember the following:
● The ContiLube
®
II is self-venting, i.e. the system
does not require you to vent it.
● The filling level of the transparent cartridge of
recyclable PE plastic can always be checked from
the cab by looking at the position of the red piston.
● The piston side of the cartridge must never be
sealed since no grease supply is possible then.
● You can change the supply volume per stroke by
adjusting the metering screw (A), depending on
the actual use.
● Tighten the screw clockwise = less grease
● Loosen the screw counter-clockwise = more
grease
B
A
The pump unit must always be sealed to prevent
water and dust penetrating it.
♦
Use a dust cover or leave the empty cartridge in
the pump until a new cartridge is available.
♦
Check the tightness of the connections of all hoses
for the ContiLube
®
II operation once a week.
Emergency lubrication is possible via the grease
nipple (B) on the rear of the ContiLube
®
II.
45© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
MAINTENANCEHB 5800, 5800 DP, 7000, 7000 DP, 10000 DP
