It
is highly
recommended to
replace the
valve discs,
O-rings
and gaskets
if
disassembling the
cylinder heads.

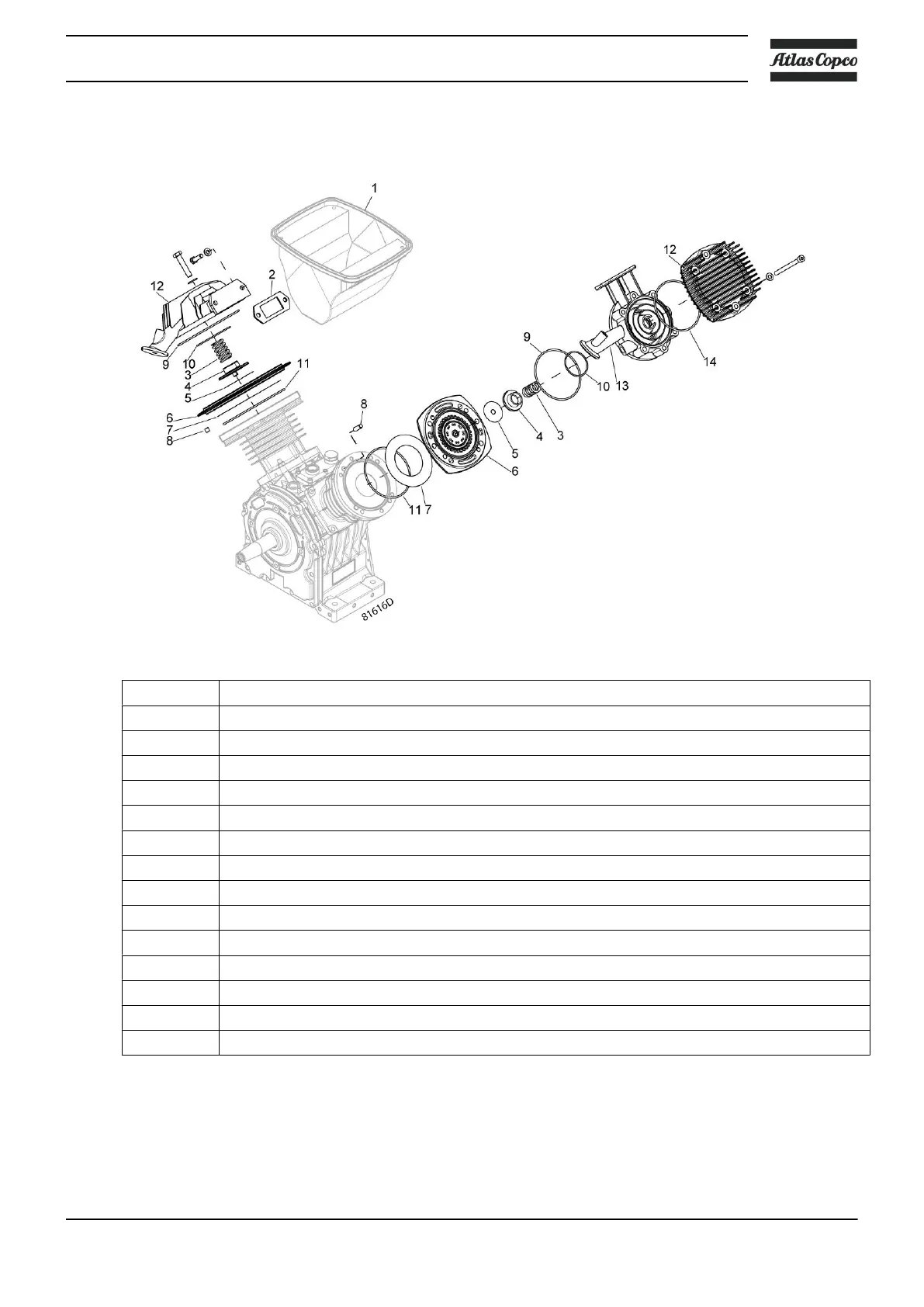

Cylinder heads, high pressure variants
Reference
Description
1
Air inlet silencer
2
Gasket
3
Spring
4
Outlet valve guard
5
Outlet valve disc
6
Valve seat
7
Inlet valve disc
8
Guide pin
9
O-ring
10
O-ring
11
O-ring
12
Cylinder head cover
13
Cylinder cap
14
O-ring
Replacement of valve discs
Operation sequence
Instruction book
2920 7089 90
57
58
60
Table of Contents
Table of Contents
4
Safety Precautions
6
Safety Icons
6
Safety Precautions, General
6
Safety Precautions During Installation
6
Safety Precautions During Operation
8
Safety Precautions During Maintenance or Repair
9
General Description
11
Eneral Description
11
Options
16
Air Flow
17
Regulating System
22
Installation
24
Dimension Drawings
24
Installation Instruction
41
Electrical Connections
46
Settings of Overload Relay and Fuses
47
Cable Sizes
50
Pictographs
50
Operating Instructions
51
Initial Start-Up
51
Starting
51
Stopping
53
Taking out of Operation
54
Storage after Installation
54
Maintenance
55
Petrol Engine Maintenance
55
Preventive Maintenance Schedule
55
Lubrication of Compressors
56
Service Kits
56
Disposal of Used Material
57
Servicing and Adjustment Procedures
58
Unloader or Check Valve
58
Valves
58
Air Filter
60
Adjustment Mdr4 Pressure Switch
61
Adjustment of Mdr3 Pressure Switch
62
Adjustment of Pilot Valve on Trolley
64
Safety Valve
65
Relief Valve
66
Problem Solving
67
Technical Data
69
Reference Conditions
69
Limitations
69
Compressor Data
69
Instructions for Use
75
Pressure Equipment Directive (PED)
76
Declaration of Conformity
77
