Atlas Copco MINI-REG-1/4-BSP User Manual

MINI-REG, MIDI-REG, MAXI-REG EN Operation
© Atlas Copco Industrial Technique AB - 9839 1513 01
11

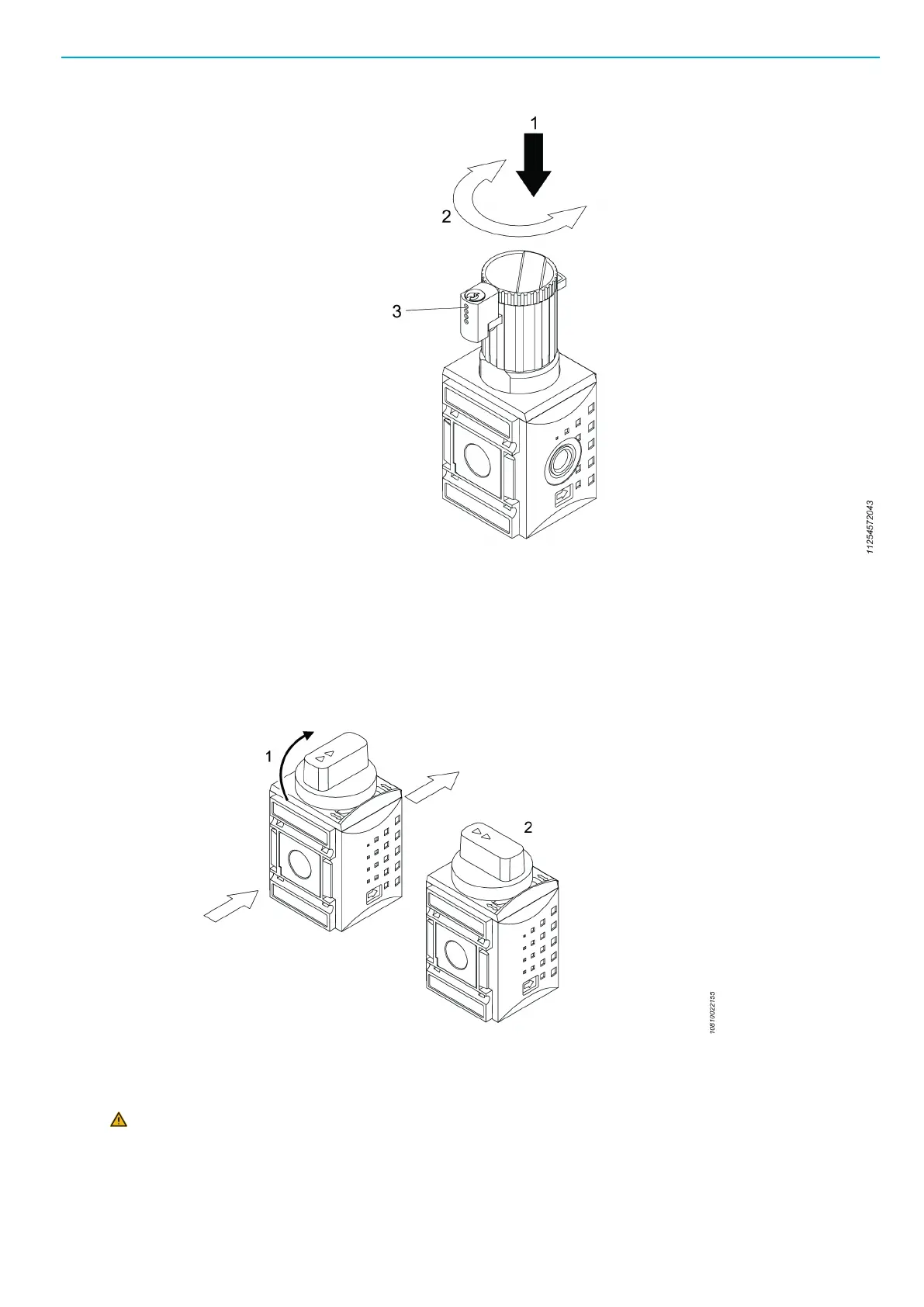

Shutting off the pressure
This section describes how to shut off the pressure using the optional ball valve module:
1. Turn the knob 90° clockwise.
2. The pressure is now shut off and the air is exhausted from the module through the G3/4" connection.
Checking the system before start-up
WARNING Risk of Injury
The system is operating under pressure. Incorrect installation could damage the unit and cause seri-
ous injury.
► Before start-up, check that all connections, ports, and modules have been correctly installed.
Before start-up:

Atlas Copco MINI-REG-1/4-BSP Specifications

General

Brand	Atlas Copco
Model	MINI-REG-1/4-BSP
Category	Controller
Language	English
