MINI-REG, MIDI-REG, MAXI-REG EN Installation

Installation

Installation requirements

Compressed air connection

WARNING Risk of severe injury

Air under pressure can cause injury.

► Always shut off the air supply when not in use or before any adjustments.

► Drain the hose of air pressure and disconnect the tool from air supply when not in use or before

any adjustments.

► Always use the correct hose size and air pressure for the tool.

WARNING Compressed Air

High air pressure can cause severe damage and bodily injury.

► Do not exceed maximum air pressure.

► Make sure that there are no damaged or loose hoses or fittings.

Make sure that the hose and couplings are clean and free from dust before connecting to the tool.

Installation instructions

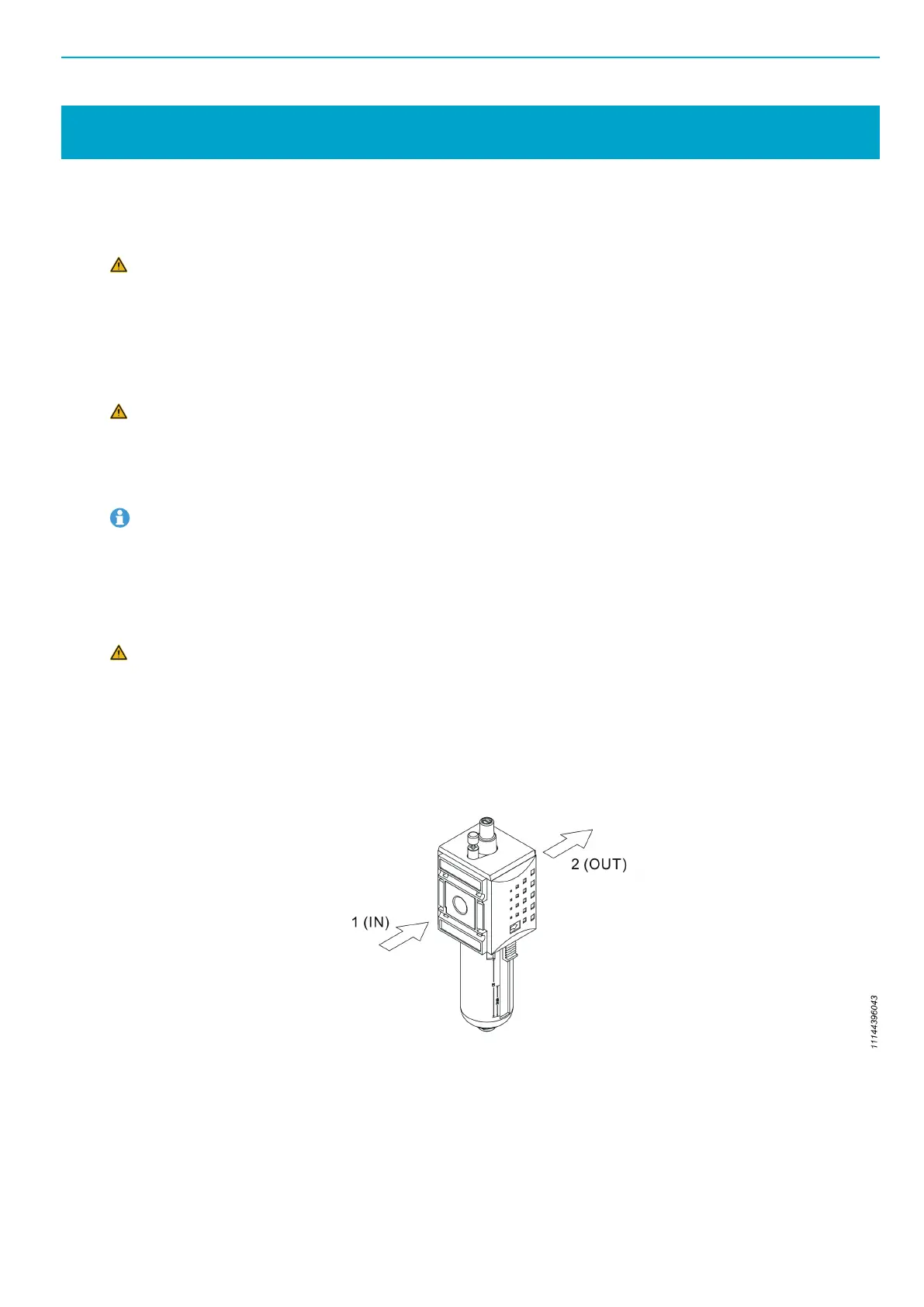

Assembly direction

WARNING Risk of Injury

Wrong installation and flow direction are potentially hazardous.

► Install filters, regulators, and lubricators in vertical position only.

► Adhere to the flow direction marked on each module.

■ Inlet: 1 (IN)

■ Outlet: 2 (OUT)

Assembling the coupling kit

If single modules are assembled into combinations, coupling kits must be used between the individual

modules.

To assemble a coupling kit:

1. Insert the sealing ring.
