Operation EN MINI-REG, MIDI-REG, MAXI-REG
12
© Atlas Copco Industrial Technique AB - 9839 1513 01
■ Check all connections for secure fit.
■ Check all modules for proper assembly.
■ Check the oil-mist lubricator (if existing) for sufficient oil and correct oil amount setting.
■ Check the pressure regulator for correct setting.
■ Check the filter module for properly equipped filters.

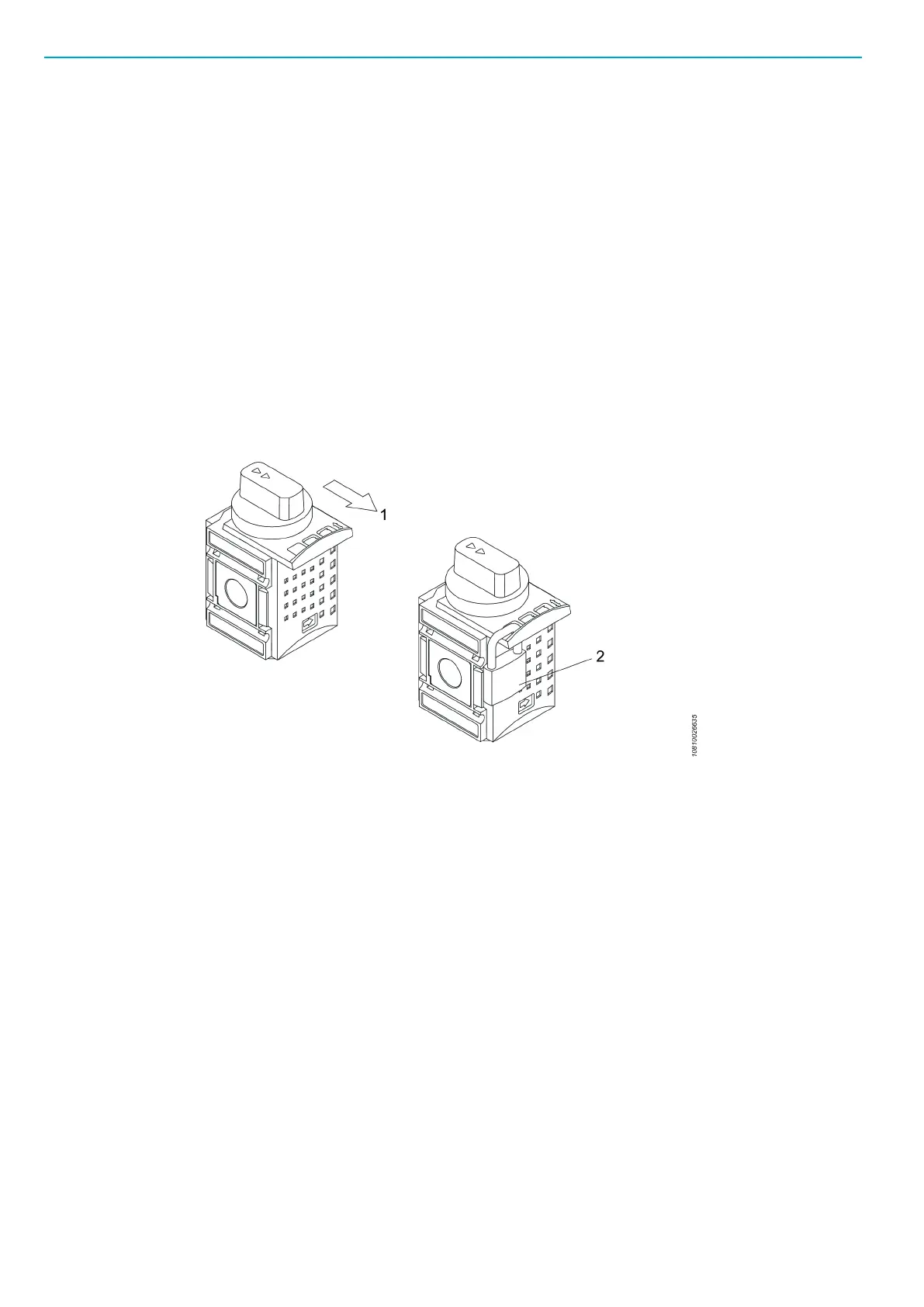

Locking the ball valve
This section describes the optional ball valve module.
To prevent unauthorized opening of the ball valve, the knob can be secured with a lock.
To lock the ball valve:
1. In models of type MIDI or MAXI: Pull out shut-off plate.
In models of type MINI: Press the film hinge downwards.
2. Attach the padlock. Up to three locks can be used.

Atlas Copco MINI-REG-1/4-BSP Specifications

General

Brand	Atlas Copco
Model	MINI-REG-1/4-BSP
Category	Controller
Language	English
