42
XAVS 136 Dd - XAHS 146 Dd - XATS 156 Dd - XA(S) 186 Dd - XAHS 186 Dd
1) With filter change.
2) Air required for engine and compressor cooling, combustion and for compression.
Unit dimensions
with brakes towbar
fixed adjustable
Length mm 3941 4356
Width mm 1716 1716
Height mm 1661 1661
Weight (ready to operate) kg 1800 1825
8.4 CONVERSION LIST OF SI UNITS INTO BRITISH
UNITS
1 bar = 14.504 psi
1 g = 0.035 oz
1 kg = 2.205 lb
1 km/h = 0.621 mile/h
1 kW = 1.341 hp (UK and US)
1 l = 0.264 US gal
1 l = 0.220 Imp gal (UK)
1 l = 0.035 cu.ft
1 m = 3.281 ft
1 mm = 0.039 in
1 m
3
/min = 35.315 cfm
1 mbar = 0.401 in wc
1 N = 0.225 lbf
1 Nm = 0.738 lbf.ft
t °F = 32 + (1.8 x t °C)
t °C = (t °F- 32)/1.8
– A temperature difference of 1 °C = a temperature difference of 1.8 °F

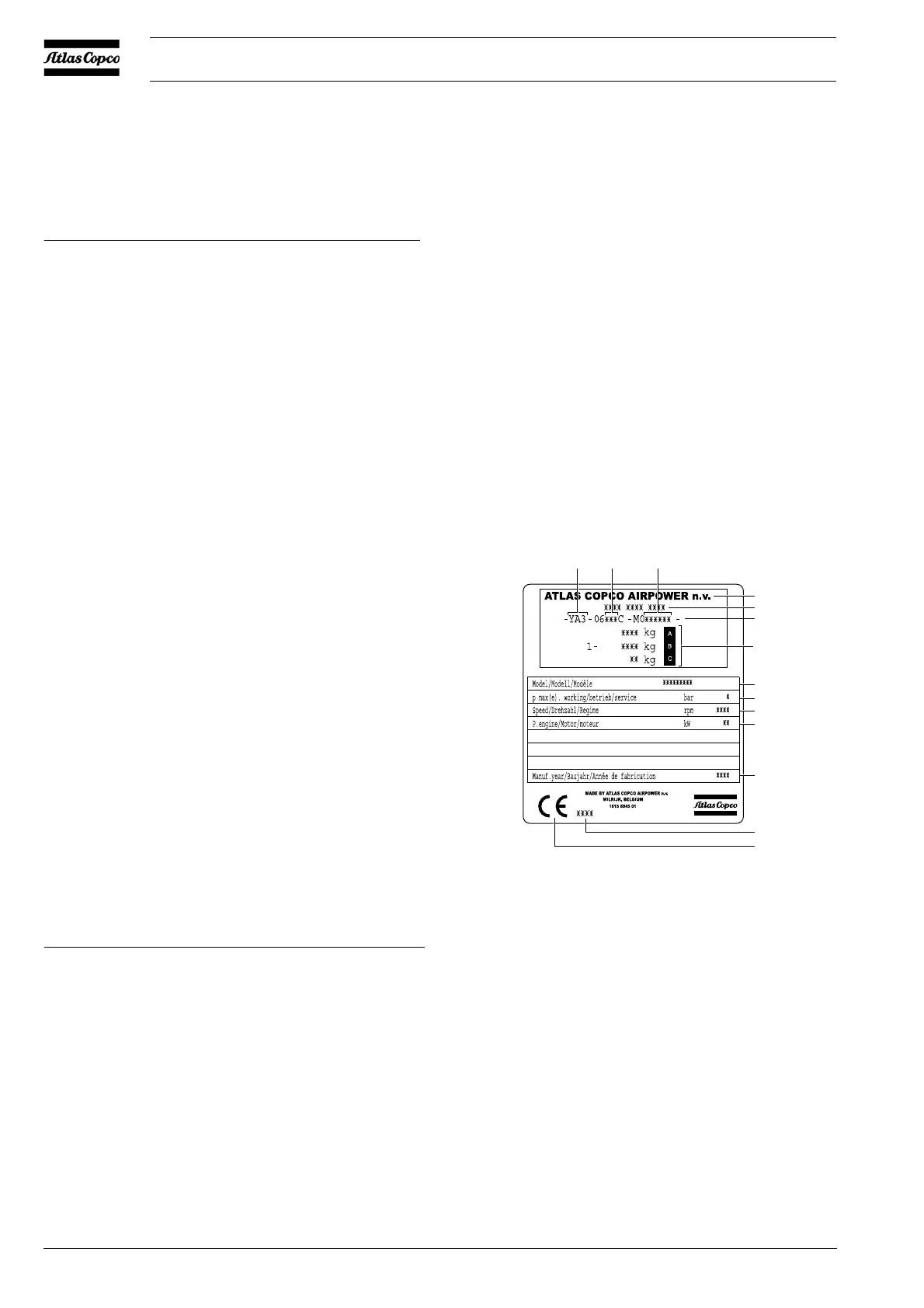

9. DATA PLATE
1. Company code
2. Product code
3. Unit serial number
4. Name of manufacturer
5. EEC or national type approval number
6. Vehicle identification number
7. A Maximum permitted laden weight of the vehicle
B Maximum permitted road weight of the vehicle
C Maximum permitted laden weight of the towing eye
8. Model
9. Working pressure
10. Speed
11. Engine power
12. Manufacturing year
13. CE-mark in accordance with Machine Directive 89/392 EEC
14. Register number or number of notified body
Compressor type XAVS 136 Dd
XAHS 186 Dd
XAHS 146 Dd
XATS 156 Dd
XA(S) 186 Dd
Designation Unit
Design data
Compressor
1. Number of compression
stages 1 1
Engine
1. Make Deutz Deutz
2. Type
BF4M2012C BF4M1013EC
3. Coolant Liquid Liquid
4. Number of cylinders 4 4
5. Bore mm 101 108
6. Stroke mm 126 130
7. Swept volume l 4.038 4.764
8.
Output according to SAE
J1995 at normal shaft speed
kW 90 107
- Load factor % 70 70
9. Capacity of oil sump:
- Initial fill l 9 12
- Refill (max.)
1)
l 8.5 11.5
10.
Capacity of cooling system l1416
Unit
1. Capacity of compressor
oil system l 24 24
2. Net capacity of air
receiver l 42 42
3. Capacity of fuel tank l 175 175
4. Air volume at inlet
grating (approx.)
2)
m
3
/s 3.9 3.9
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(14)
(13)
(1) (2) (3)
