7.1.2 Configuring IPSec with GRE
This example includes IPSec with GRE where two devices are connected back to back via
the Gigabit Ethernet 0/0 interface. Only GRE traffic that is being "caught" by the access list
permit gre any any, between the Gigabit Ethernet interfaces is encrypted.

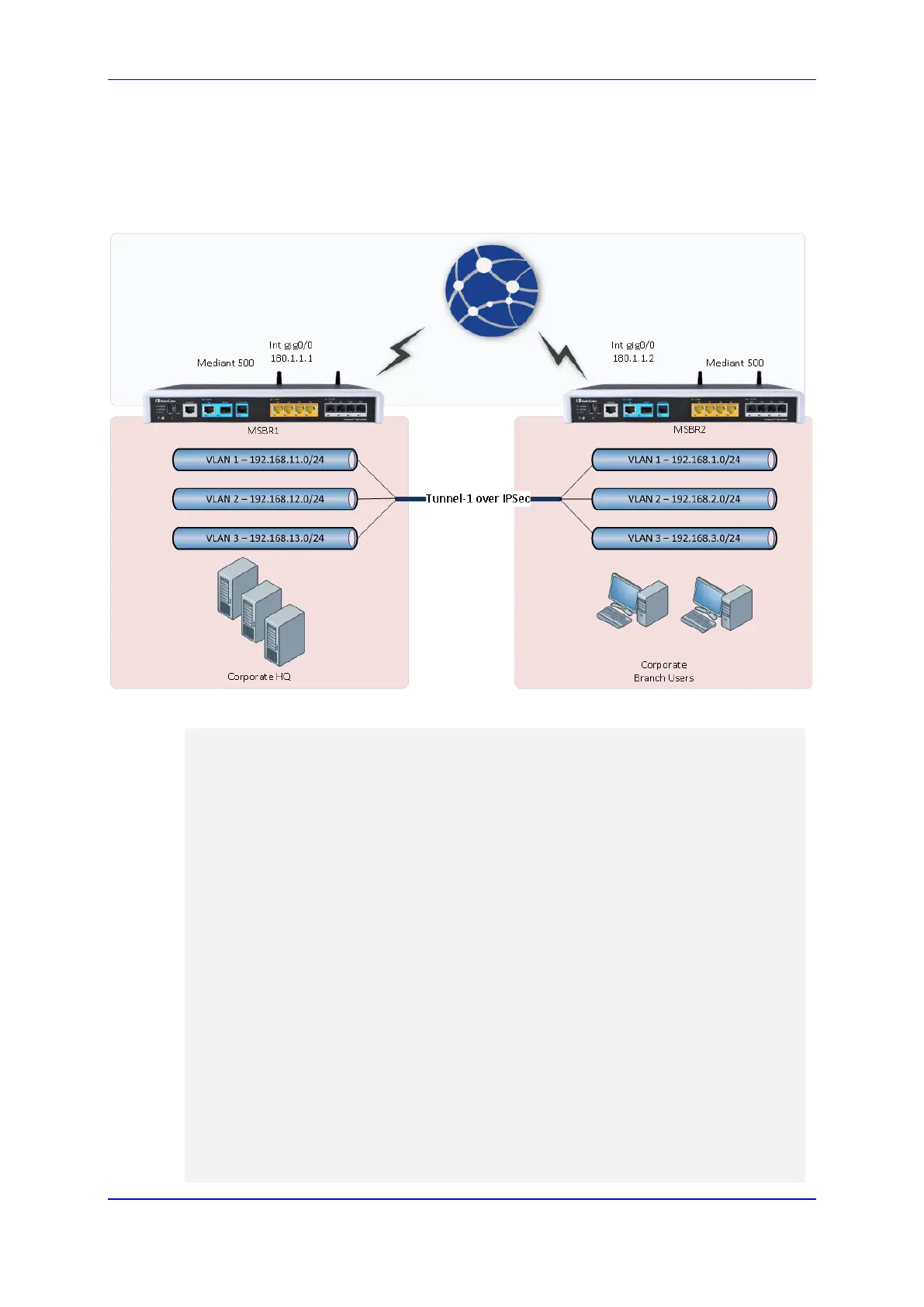

Figure 7-3: GRE over IPSec
The following shows the MSBR1 configuration:
conf d
int gigabitethernet 0/0
ip address 180.1.1.1 255.255.255.0
no firewall enable
exit
int vla 1
ip address 192.168.11.1 255.255.255.0
exit
int vla 2
ip address 192.168.12.1 255.255.255.0
no shutdown
exit
int vla 3
ip address 192.168.13.1 255.255.255.0
no shutdown
exit
interface gre 1
ip address 1.1.1.1 255.255.255.0
tunnel destination 180.1.1.2
no shutdown
exit
ip route 0.0.0.0 0.0.0.0 180.1.1.2 gigabitethernet 0/0
