CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
3 Physical Description
This chapter provides a description of the device.
Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the following table.
Table 3-1: Physical Dimensions and Operating Environment
Item Description
Enclosure 1U chassis
Dimensions (H x W x D) 1U x 444 mm (17.5 in.) x 355 mm (14 in.)
Weight Approx. 4.4 kg (9.7 lbs.)
Operating Environment ■ Operational: 0 to 40°C (32 to 104°F)
■ Storage: -20 to 70°C (-4 to 158°F)
■ Relative Humidity: 10 to 85% non-condensing
Front Panel Description
The device's front panel is shown in the following figure and described in the subsequent table.

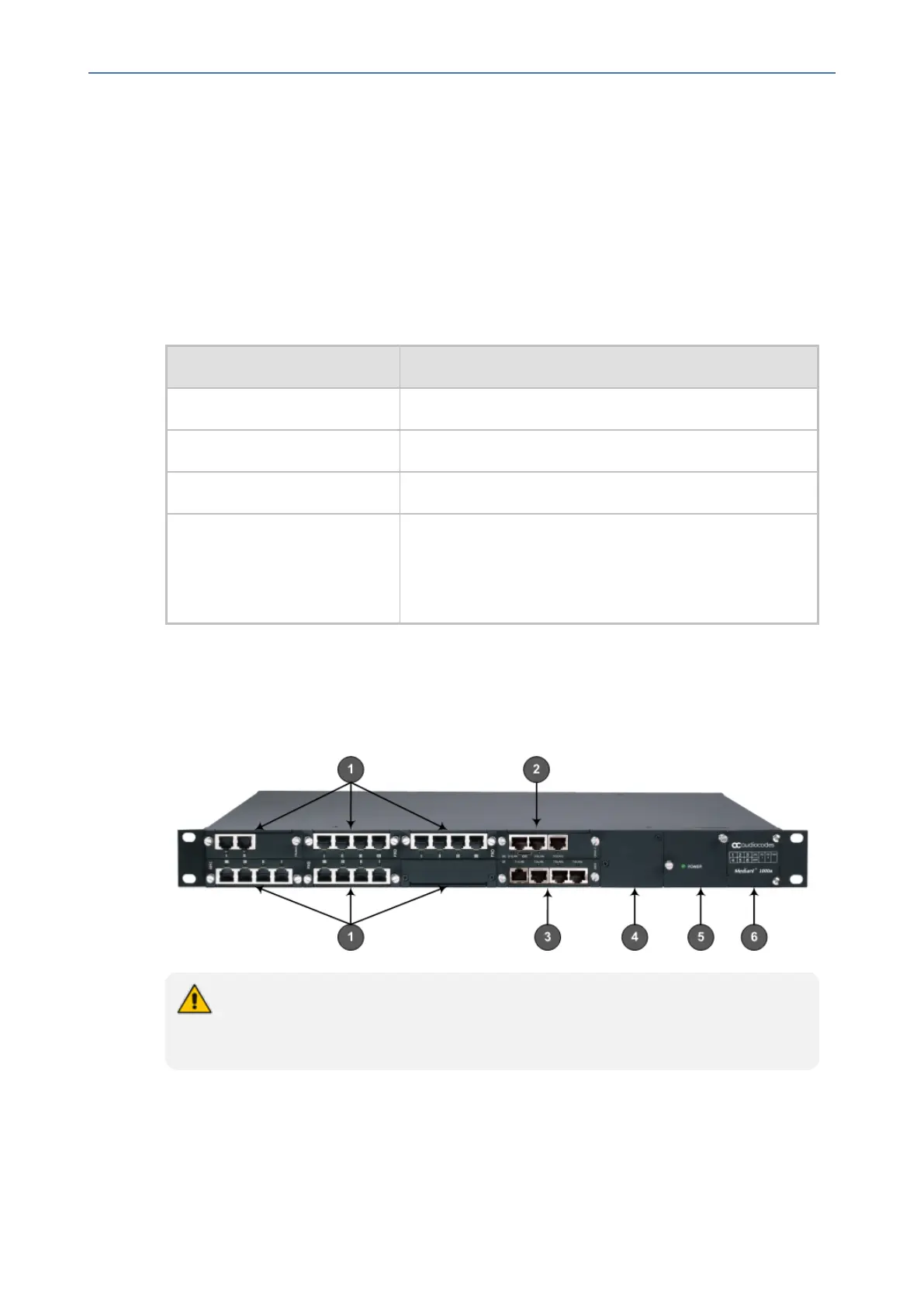

Figure 3-1: Front Panel of Mediant 1000B SBC and Gateway
● The previous figure is used only as an example. The number and type of
interface modules depend on the ordered configuration.
● For module slot assignment, see Chassis Slot Assignment for Modules.
- 3 -
