CHAPTER3 Physical Description
Mediant 1000 Gateway & E-SBC | Hardware Installation Manual
When using only one Power Supply module, the second AC power socket on the rear
panel is covered by a plastic sticker. Please do not remove the sticker and connect
anything to this power socket. Remove the sticker only when two Power Supply
modules are used.
Rear Panel Description
The device supports up to eight single and mid- sized Advanced Mezzanine Card (AMC) /
AdvancedMC form-factor modules on its rear panel, used for the OSN server platform. The
chassis front panel is displayed in the following figure and described in the subsequent table.

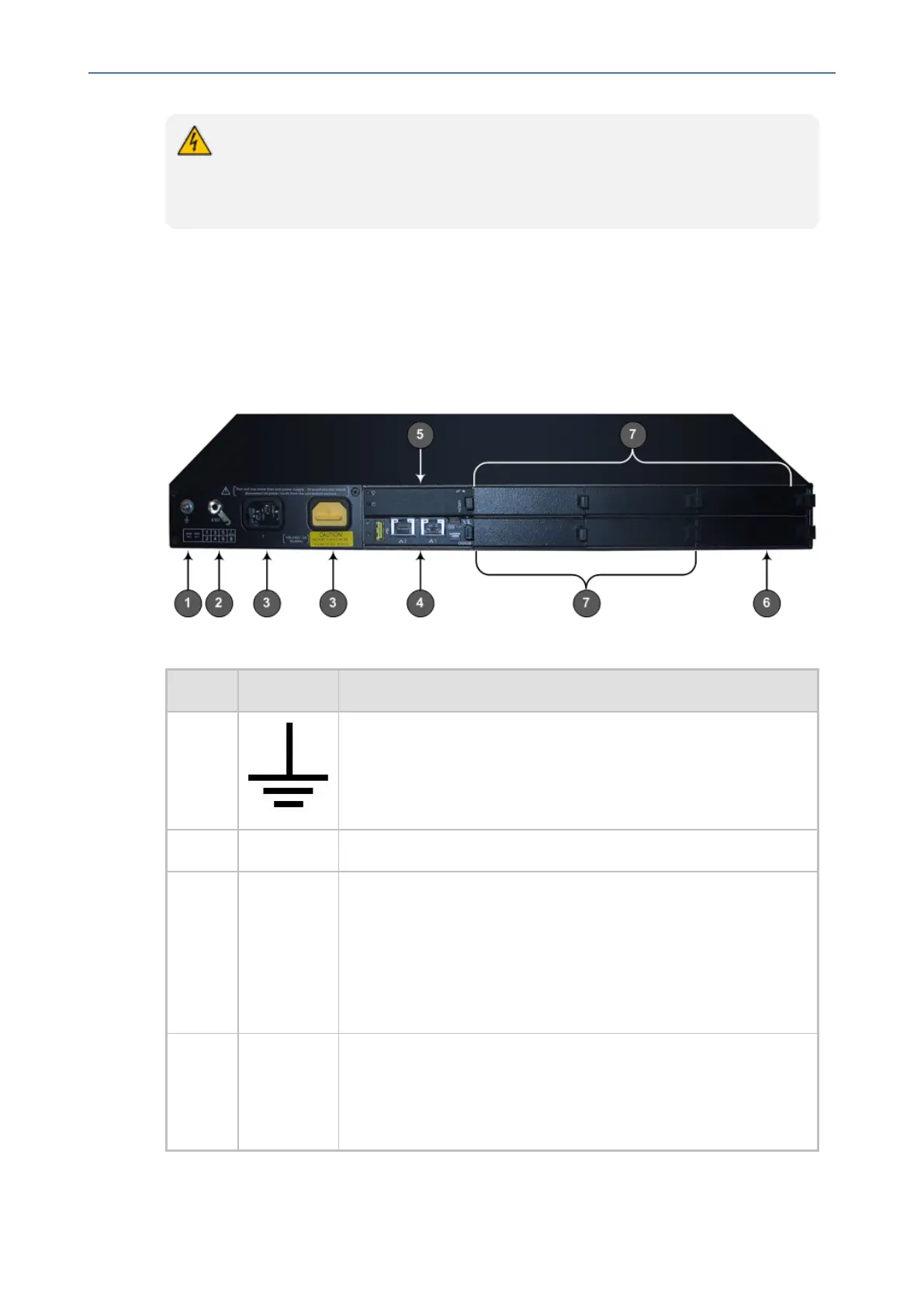

Figure 3-11: Rear Panel
Table 3-12: Rear-Panel Description
Item # Label Description
1 Protective earthing screw.
2 ESD Electrostatic Discharge (ESD) socket.
3 100-
240V~1A
Dual AC Power Supply Entries.
Note: When using only one Power Supply module, the second AC
power socket on the rear panel is covered by a plastic sticker.
Please do not remove the sticker and connect anything to this
power socket. Remove the sticker only when two Power Supply
modules are used.
4 OSN4B OSN module for OSN server platform.
Note: The AMC chassis slots must only be installed with AMC
modules that have been approved and homologated by
AudioCodes.
- 17 -
