2. Connections

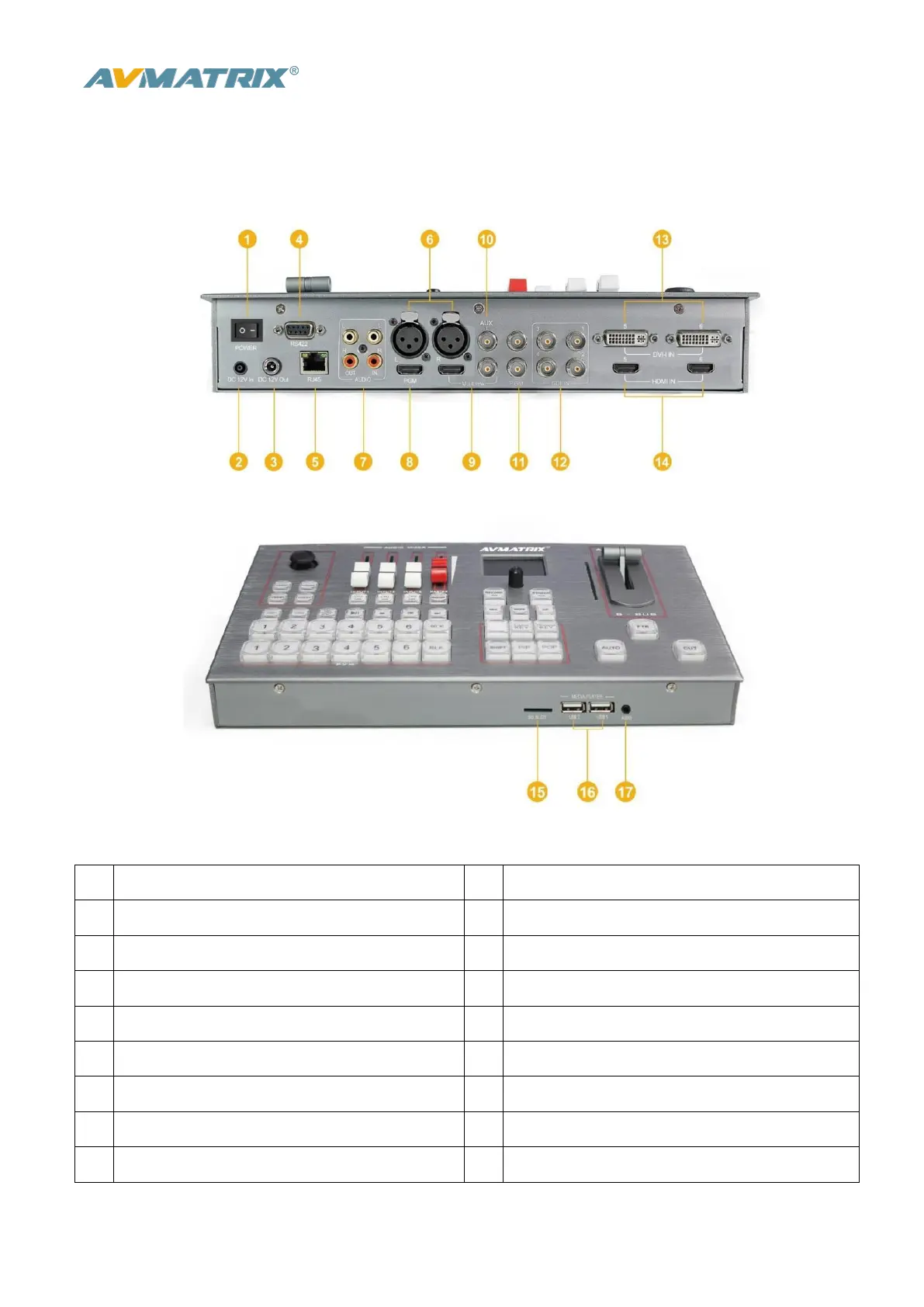

2.1 Interfaces
1
Power Switch
10
1×SDI AUX Output
2
12V DC Power Input
11
2×SDI PGM Outputs
3
12V DC Power Output
12
4×SDI Inputs
4
RS422 for Camera Remote Control
13
2×DVI-I(VGA) Input
5
RJ45 For Sync Time & Firmware Upgrade
14
2×HDMI Input
6
XLR Balanced Audio(L/R) Input
15
1×SD Slot for Record
7
RCA Stereo Audio(L/R) Input/ Output
16
2×USB INPUT for Video/ Image Media Player
8
1×HDMI PGM Output
17
Earphone
9
1×HDMI and 1×SDI Multiview Output

AVMATRIX PVS0605 Specifications

General

Brand	AVMATRIX
Model	PVS0605
Category	Switch
Language	English
