BAC XES15E-1285-06 Series User Manual

WWW.BALTIMOREAIRCOIL.COM
9
Rigging & Assembly
Multi-Cell Installation
Positive Closure Plate
Installation
Motor Location and Conduit
Installation
Optional Accessories and
Equipment

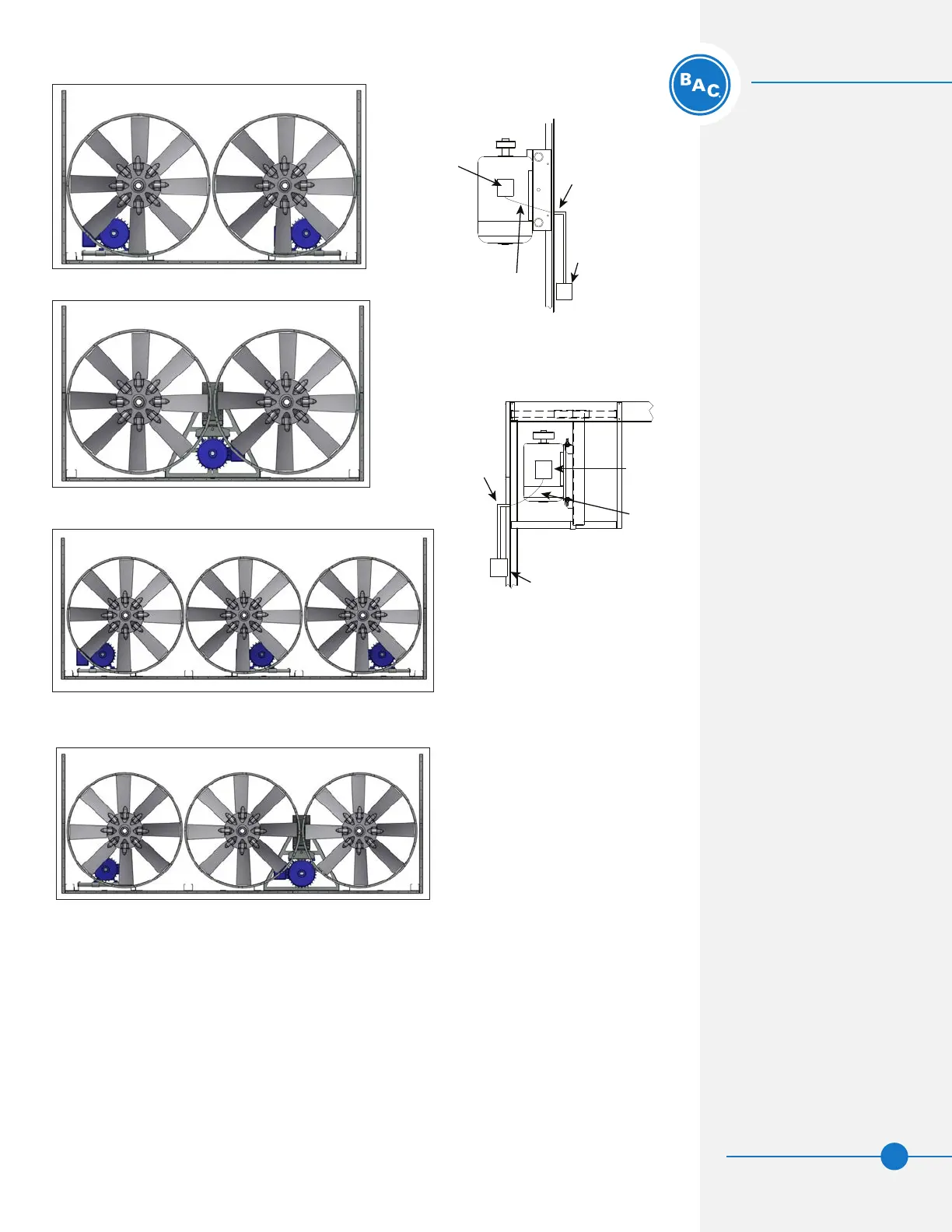

Figure 12. S15E/XES15E-1212-x Dual Drive Motor Location (Optional)
Figure 11. S15E/XES15E-1212-x Independent Drive Motor Location
Figure 14. S15E/XES15E-1218-x Dual Drive Motor Location (Optional)
Figure 13. S15E/XES15E-1218-x Independent Drive Motor Location
Adjustable
Motor
Base
Standard Motor
Location
Conduit
Box
Flexible Conduit (Allow
Sufficient Slack for
Belt Tensioning)
Rigid Conduit Outside
Tower Turned Down to
Junction Box or Safety
Switch
Disconnect/Safety Switch
in Weatherproof Enclosure
Must be Rated for Proper
Voltage and Horsepower
of Fan Motor
A
A
Optional
BALTIGUARD™
Fan System Motor
Standard Motor
Location
Plan View
Hole in casing panel should be
large enough to accommodate conduit.
Seal hole with waterproof sealant.
B
B
Optional
BALTIGUARD™
Fan System Motor
Side View
Figure 15. Independent Drive Motor
A
A
Optional
BALTIGUARD™
Fan System
Motor
Standard
Motor
Location
Hole in casing panel should be
large enough to accommodate conduit.
Seal hole with waterproof sealant.
Adjustable Motor Base
B
Standard
Motor
Location
Conduit
Box
Flexible
Conduit (Allow
Sufficient
Slack for
Belt
Tensioning)
Rigid Conduit Outside
Tower Turned Down to
Junction Box or Safety
Switch
Disconnect/Safety Switch
in Weatherproof Enclosure Must
be Rated for Proper Voltage and
Horsepower of Fan Motor
Adjustable Motor Base
Optional
BALTIGUARD™
Fan System Motor
Plan View
Side View
Figure 16. Dual Drive Motor
