Fan Guard Installation
As standard, the fan guard ships installed on all Series 1500 units except units with
the optional Whisper Quiet Fan and units with fan cowl extensions. However, due to
height limitations on specific truck shipments, the fan guard for other models may ship
unmounted.
One-Piece Fan Guard
Mount the fan guard to the unit as illustrated in Figure 17, Detail A.
DANGER: Fan guard must be
securely in place before the cooling
tower is placed in operation. Never
step or walk on fan guard. Failure to
follow these instructions may result
in serious injury or death.

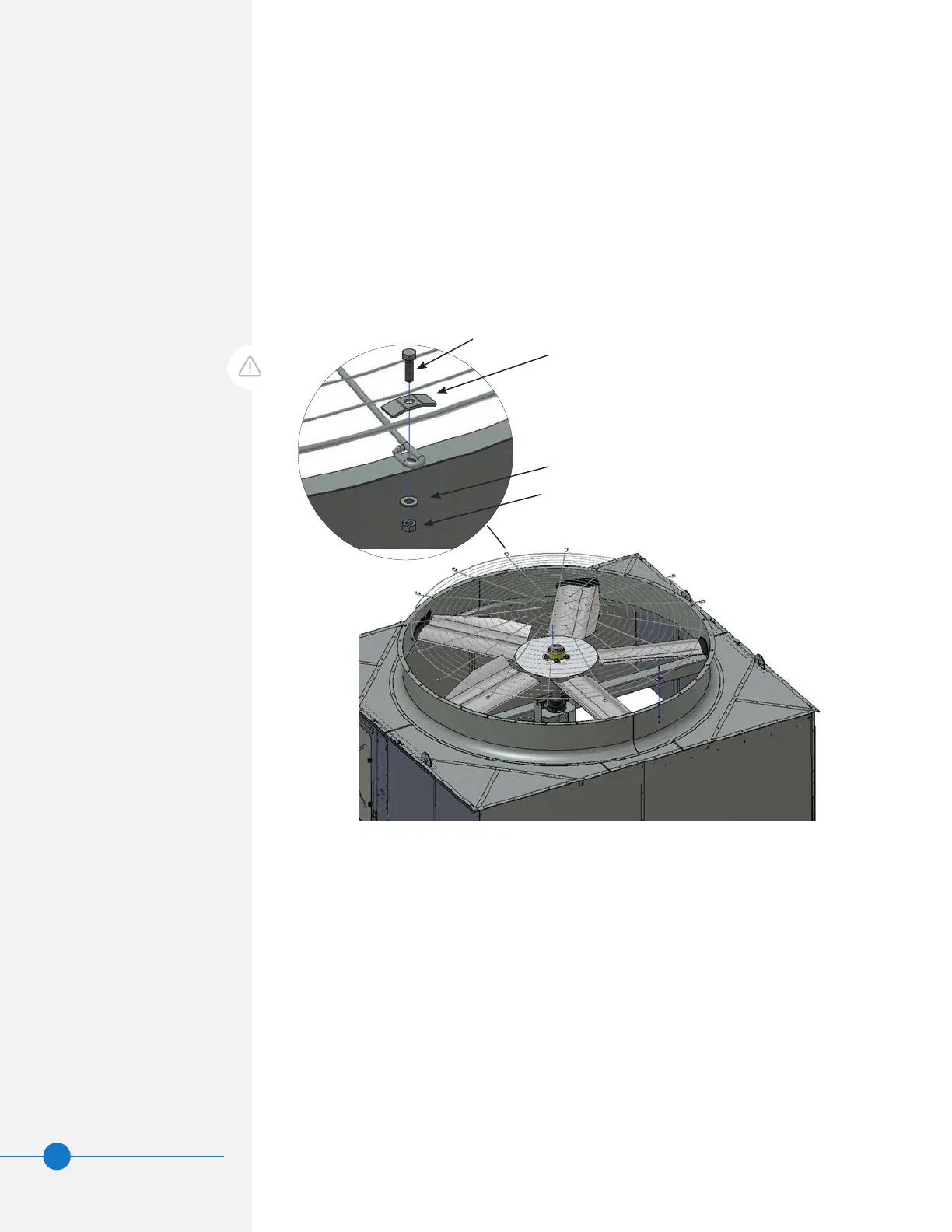

Figure 17. One-Piece Fan Guard Assembly
Detail A
3/8” Bolt
3/8” Locknut
3/8” Flatwasher
Fan Guard Clip
