External Access Platform (Optional)
1. For S15E/XES15E-1218-x units only, lift the platform module into place and secure the
platform frame to the pre-mounted brackets using 3/8” bolts provided See Figure 24,
Detail A.
2. Secure the support channels to the platform and the unit casing using 1/2” bolts
provided. See Detail B, C, and D. For models S15E/XES15E-1285 and
S15E/XES15E-1212 there are 2 channels and for S15E/XES15E-1218 there are 4
channels.
3. Secure the ends of the platform frame to the unit structure using 1/2” bolts provided
and the toe board for the handrail system using 3/8” bolts provided. See Detail E.
4. Secure the handrail edges to the unit structure using 3/8” bolts provided. See Detail F.
Detail A
Detail B Detail C
Detail E
Detail F

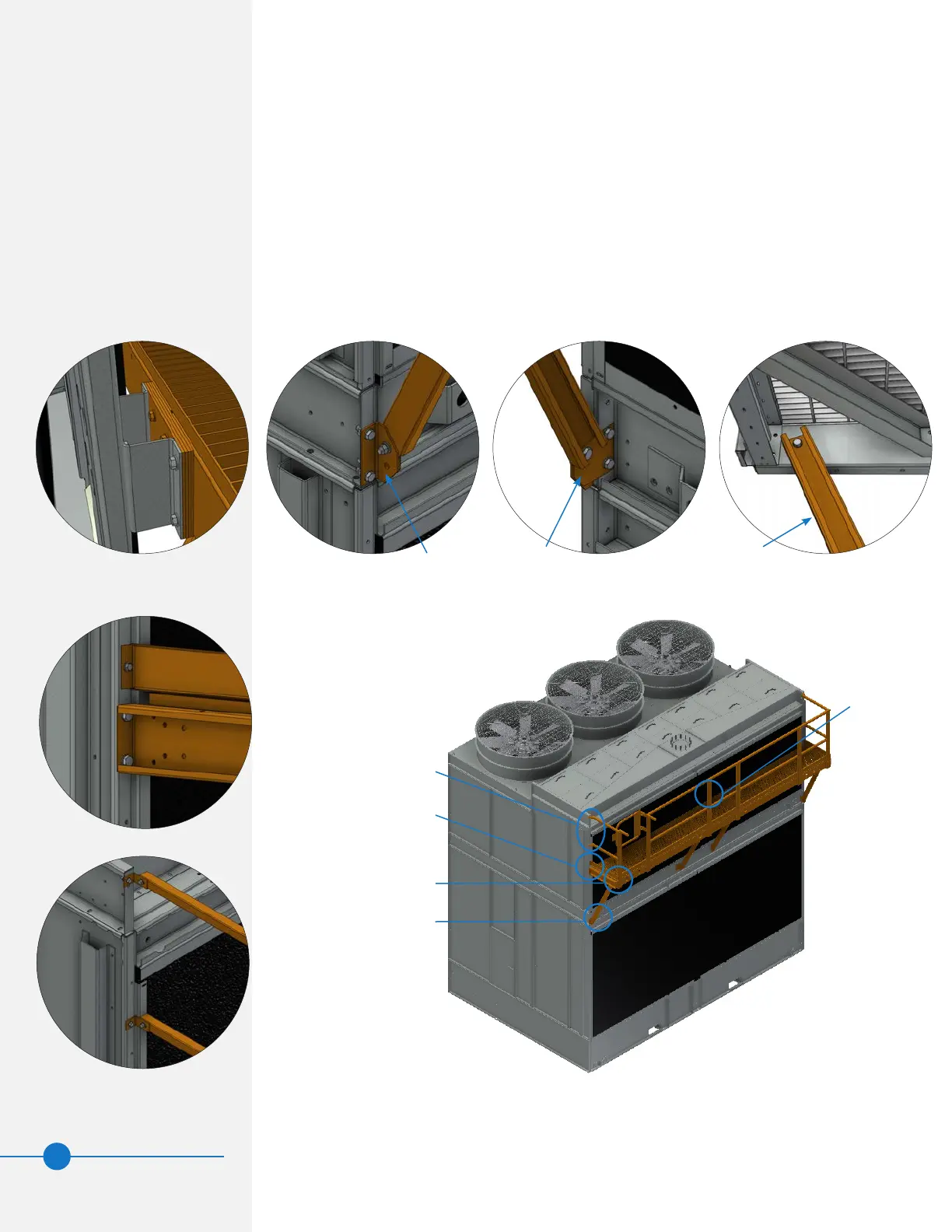

Figure 24. External Access Platform
Detail A
Detail F
Detail Band C
Detail E
Detail D
Detail D
