WWW.BALTIMOREAIRCOIL.COM
13

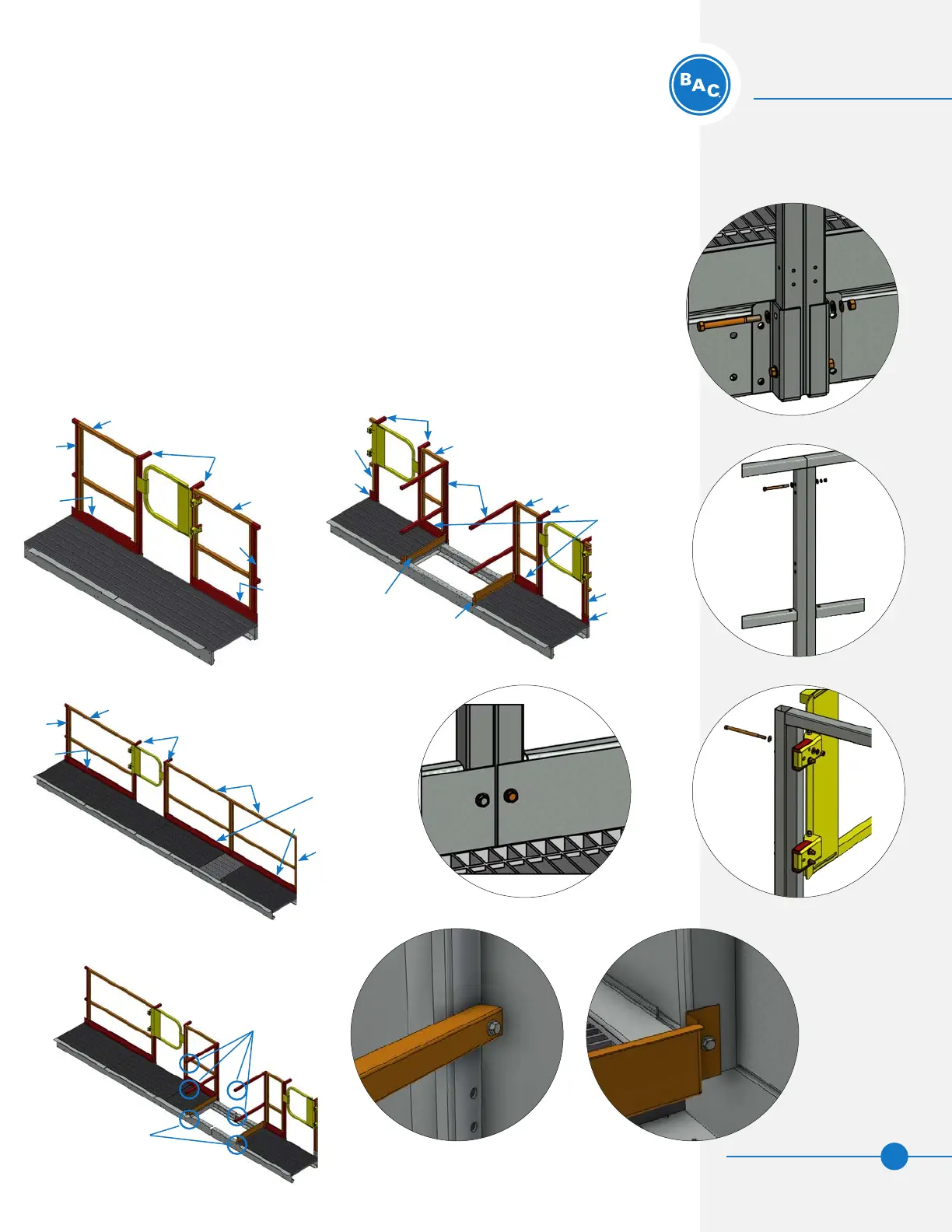

Figure 21a. S15E/X15E-1285-x (BALTIGUARD™ Fan System
Independent Drive) andS15E/X15E-1212-x (Independent Drive)
Details F
and G
Internal Service Platform (Optional)
1. The platform base is factory installed. The handrail system requires field installation.
2. The welded handrail assemblies drop into pre-installed sockets in a specific configuration
depending on the size of the unit and the type of drive system. See Figure 20 below for
configuration types.
3. Secure the vertical handrail posts in each socket using the 3/8” bolts provided. See
Figure 21, Detail A.
4. Connect the vertical handrail posts to each other using the 5/16” bolts provided. See
Detail B. Only two bolts are required per pair of posts, one on top and one on the bottom.
5. For dual drive units, attach the inside handrails to the blank off wall channels using the
5/16” bolts provided. Dee Detail E.
6. Attach the toe boards using 5/16” tappers provided. See Detail C and Detail F for
dual drive units.
7. Attach the safety gate at the ladder opening using 5/16” bolts provided. See Detail D.
Detail A
Figure 21b. S15E/X15E-1212-x Dual Drive
Figure 21d. S15E/X15E-1218-x Dual Drive
Figure 21c. S15E/X15E-1218-x Independent Drive
Optional Accessory
Installation
Access Door Platform and
Ladder
Internal Service Platform
Detail B
Detail D
Detail C
Detail FDetail E
Detail E
Detail F
PCK
PAI
PCR
PAD
PCP
PCK
PAI
PCK
PCJ
PAD
PCT
PAC
PCT
PAD
PAJ
PCK
PCJ
PCQ
PCQ
PCK
PCU
PAD
PCU
PCO
PCU
PCK
PCJ
