Backyard LIGHTNING RIDGE 2200159 User Manual

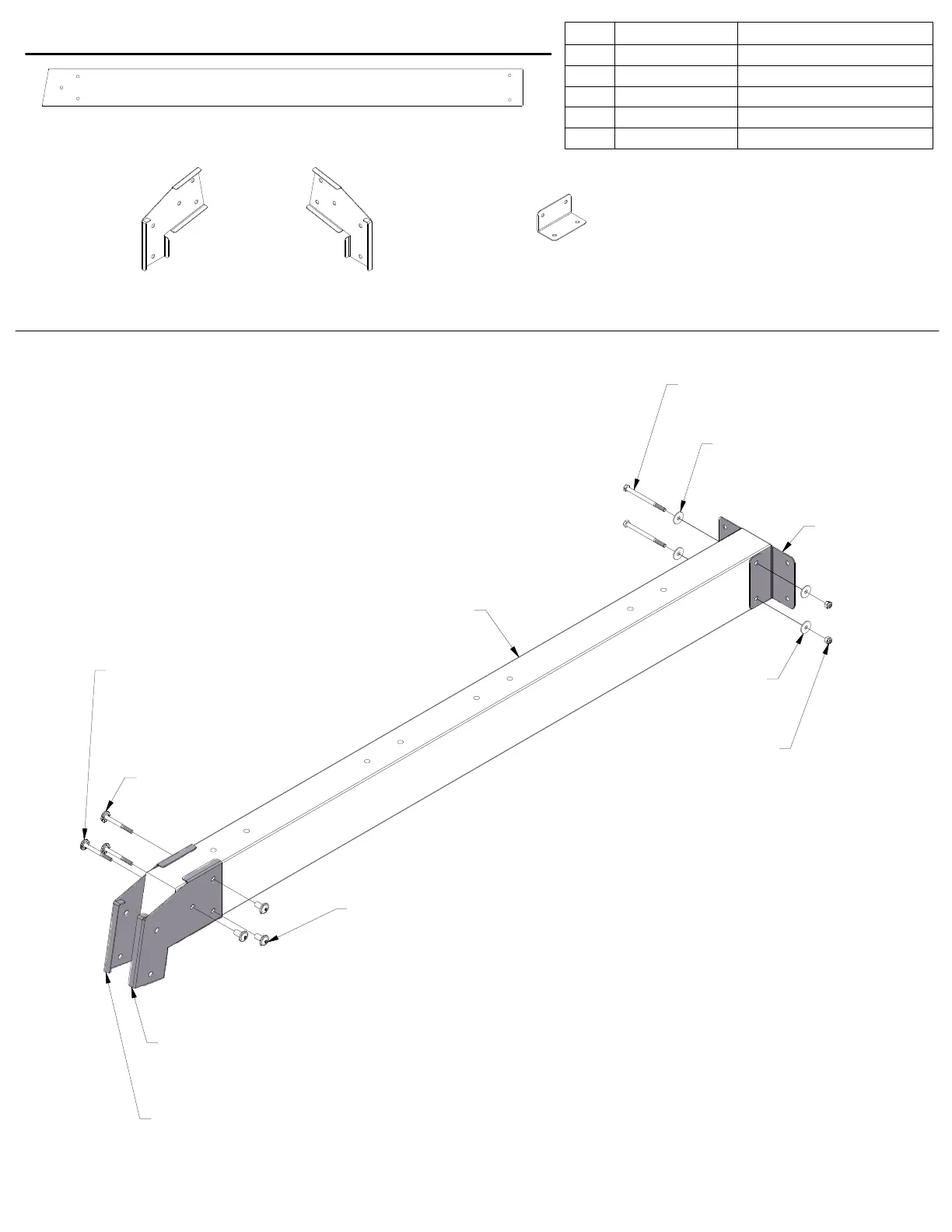

STEP 1 - SWING BEAM ASSEMBLY
SWING BEAM 2 POSITION - W4L16167
3 3/8"x5 1/4"x68 3/4" (86x134x1745)
A74
(x1)
SWING BEAM
EXTENSI
ON
BRACKET-RIGHT
(x1)
A100326
SWING BEAM
EXTENSION
BRACKET-LEFT
(x1)
A100325
L BRACKET
66x66x127
(x2)
A100140
140 (x2)
L BRACKET
325 (x1)
SWING BEAM EXTENSION BRACKET-LEFT
326 (x1)
SWING BEAM EXTENSION BRACKET-RIGHT
105 (x2)
WASHER - 8x27
054 (x2)
BOLT - 4 1/4"
105 (x2)
WASHER - 8x27
110 (x2)
NUT - 5/16"
005 (x3)
NUT BARREL - 7/8"
016 (x3)
BOLT - 3"
A74 (x1)
QTY
PART NUMBER
DESCRIPTION
3 H100005
NUT BARREL WH 5/16x7/8
3 H100016 BOLT WH 5/16x3
2
H100054
BOLT HEX 5/16x4 1/4
4 H100105 WASHER FLAT 8x27
2 H100110 NUT LOCK 5/16
LEAVE 016 BOLTS HAND
TIGHT AT THIS TIME.
