Backyard LIGHTNING RIDGE 2200159 User Manual

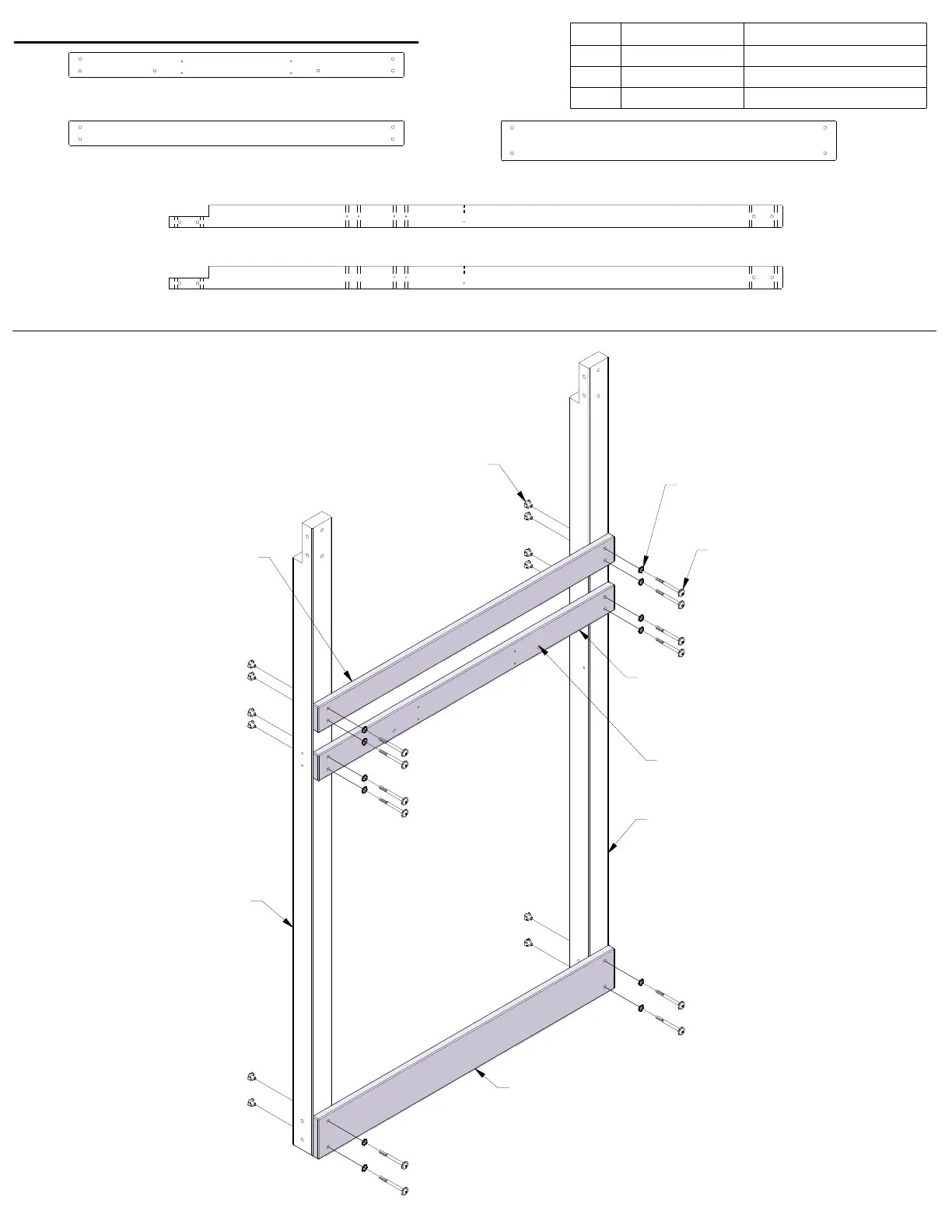

STEP 1 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
12
H100019 BOLT WH 5/16x3 3/4
12
H100030
WASHER LOCK EXT 8x19
12 H100074 T-NUT 5/16
TIP:
INSTALL T-NUTS IN WOOD FIRST
H05 (x1)
G01 (x1)
H03 (x1)
FLOOR RAIL - W4L16127
1"x3 3/8"x44 7/8" (24x86x1141)
H03
(x1)
WALL RAIL - W4L16137
1"x3 3/8"x44 7/8" (24x86x1141)
H05
(x1)
GROUND RAIL - W4L16128
1"x5 1/4"x44 7/8" (24x134x1141)
G01
(x1)
019 (x12)
BOLT - 3 3/4"
030 (x12)
WASHER - 8x19
074 (x12)
T-NUT - 5/16"
B03 (x1)
B01 (x1)
UPRIGHT - W4L16121
3"x3"x82 1/4" (76x76x2089)
B01
(x1)
UPRIGHT - W4L16126
3"x3"x82 1/4" (76x76x2089)
B03
(x1)
NOTE HOLE LOCATIONS
29
