U

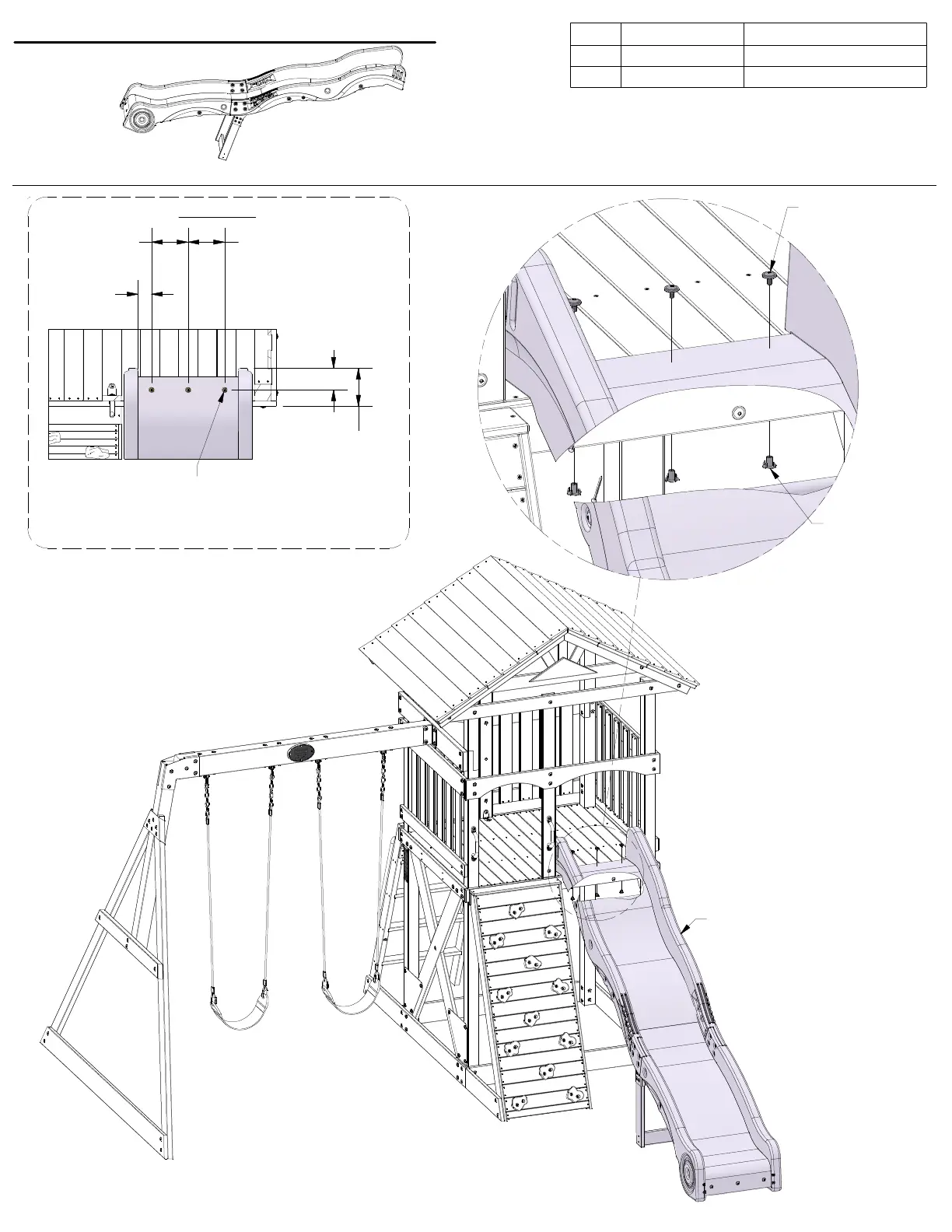

STEP 41 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
3 H100115 BOLT WH 5/16x1/2
3 H100074
T-NUT 5/16
CENTER SLIDE IN OPENING. DRILL (3) 3/8"
[10mm] HOLES THRU SLIDE BED AND DECK
WHERE SHOWN FOR HARDWARE.
SLIDE ASSEMBLY
2 3/8 in
[60 mm]
6 1/2 in
[166 mm]
6 1/2 in
[166 mm]
6 3/4 in
[172 mm]
3 7/8 in
[97 mm]
TOP VIEW
074 (3)
T-NUT - 5/16"
115 (x3)
BOLT - 1/2"
SLIDE ASSEMBLY
76
