Backyard LIGHTNING RIDGE 2200159 User Manual

TOP
BOTTOM
TIP:
PRE
-BENDING THE ENDS WILL EASE ASSEMBLY. PLACING THE SLIDE BED OUT IN
THE SUN MAKES IT EASIER TO BEND.
SLIDE BED 10' DARK GREEN
(x1)
A6P00385
SLIDE BED SUPPORT - W100935
5/8"x3 3/8"x19 7/8" (16x86x505)
M70
(x1)
385 (x1)
SLIDE BED 10' DARK GREEN
M70 (x1)
074 (x3)
T-NUT 5/16
115 (x3)
BOLT WH 5/16x1/2
NOTE:
TAK
E NOTE OF SLIDE BED SURFACE FINISH, THE DULL SIDE WILL BE TOWARDS THE GROUND. PLACE
SLIDE BRACE CENTERED ON THE BOTTOM (DULL SIDE) AND 1/2" FROM THE EDGE. USE M70 BOARD AS A
TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. USE A 5/16" DRILL BIT.
1/2 in
[12 mm]

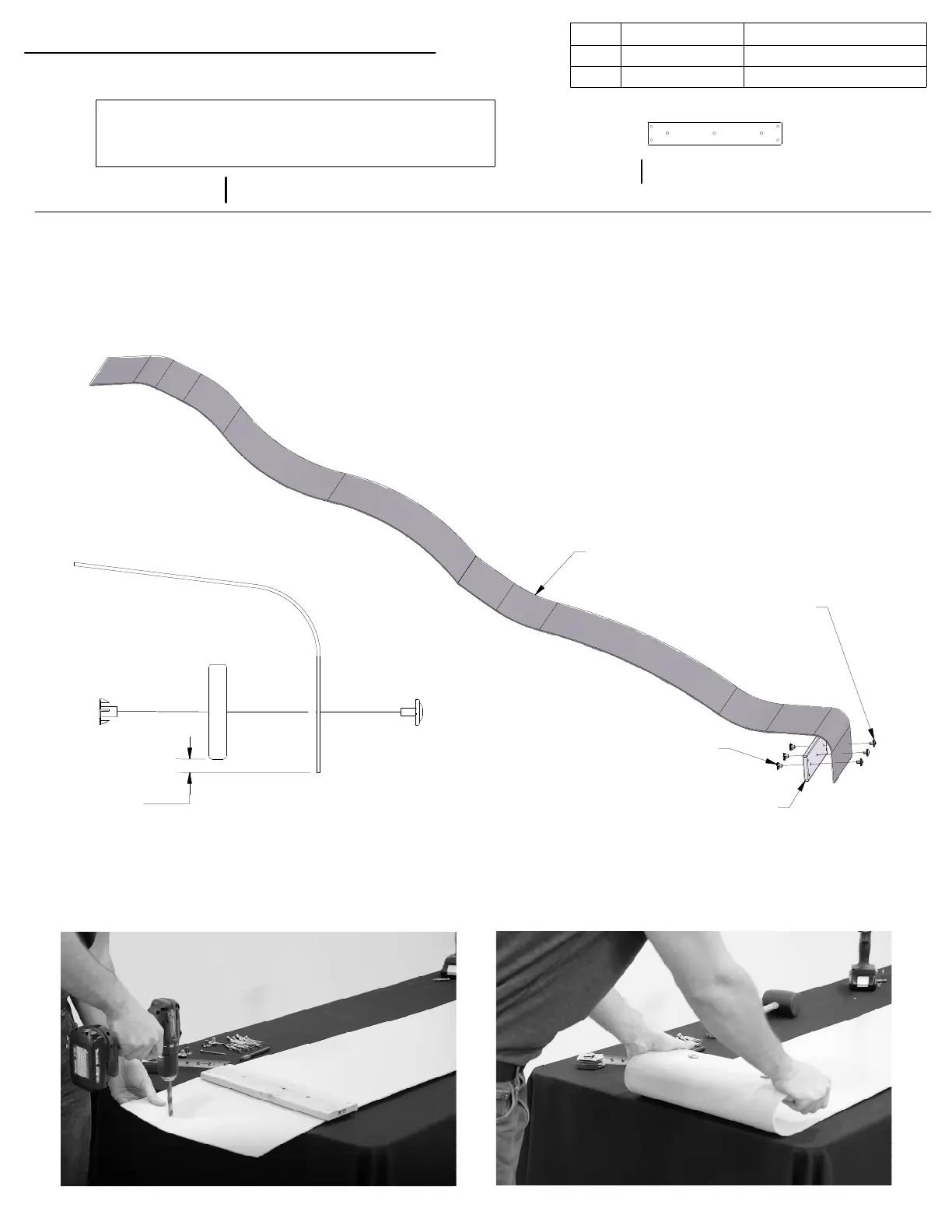

STEP 1 - SLIDE ASSEMBLY
QTY
PART NUMBER DESCRIPTION
3 H100074 T-NUT 5/16
3 H100115
BOLT WH 5/16x1/2
TIP:
INSTALL T-NUTS IN WOOD FIRST
69
