Page #19 background imageLoading...
Page #19 background image
19

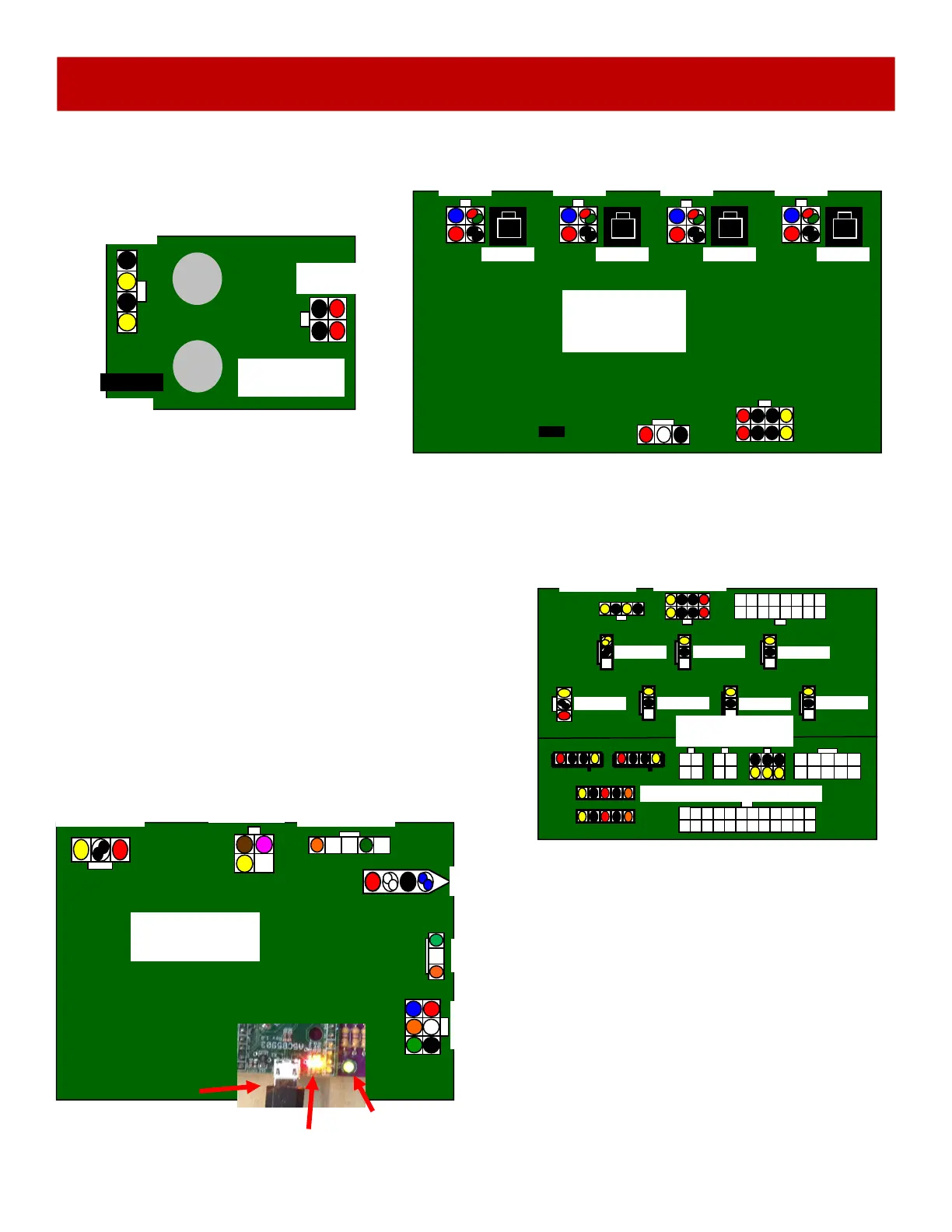

CIRCUIT BOARD LAYOUT
A5CB9600
Audio Amplifier
A5CE2300
Audio Cable
AACE13010
Speakers
AACE13022
12 VDC In
AACB13000
Key Controller
Board
AACE13039
Signal up to
marquee
AACE13017
Power In
from Power
Dist. Board
CE13003
CE13021
CE13002
CE13021
CE13001
CE13021
CE13000
CE13021
A5CBL5900
USB Communication
to Motherboard
AACB5156
Power Dist. Board
Power In from Power Supply
CE13004
CE13005
CE13007
CE13038
CE13008
CE13006
CE13014
AACE13022
12 V Power
to A5CB9600
AACE13017
Power to
8001 Board
AACB9604
I/O Aux Board
AACE13014
Ticket Dispenser
AACE13011
Menu Buttons
& Meters
AACE13014
Coin Mech
AACE13005
Power in from
Power Dist Bd
AACE13014
DBA Cable
AACE13014
Ticket Switch
Red and
Yellow
LEDs
Green
Power
LED
A5CORD13000
USB Communication
to Motherboard
