20
I/O AUX BOARD, COIN MECH, MENU & COUNTER
Menu
Select
AAPB2700
Menu
Button
AAPB2700
Game
Counter
Ticket
Counter
AACO1020
AACE13011
AACE13005
Power In
from Power
Distribution
Board

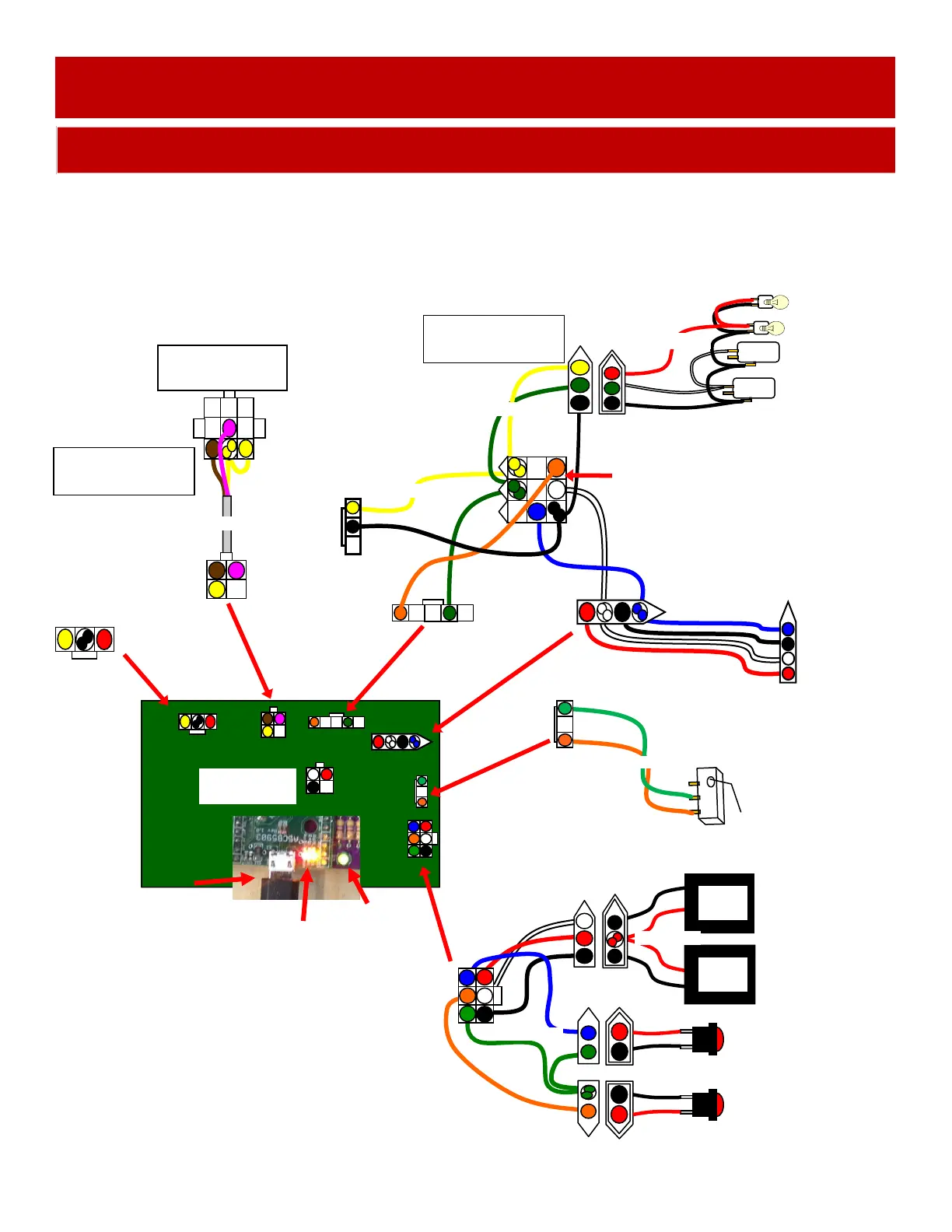

WIRING DIAGRAM
Low Ticket Switch
Wired Normally Open
AASW200
1/4” Spacer A5SENY020
AACE13014
To Ticket
Dispenser
Part # A5TD1
Notch Signal
Com Ground
Enable Signal
12 Volt Power
Coin Switches and Lights
AACBL4A-DOOR
UCL Connector
Card Swipe system cable would be
plugged into this connector.
AACE13014
Power In
from Power
Distribution
Board
AACB9604
I/O Aux Board
12 Volt Bill Acceptor is
Part # A5AC9101 or
A5AC9094
AACE13014
AACE13014
AACE13014
AACE13014
AACE13014
Red and
Yellow
LEDs
Green
Power
LED
A5CORD13000
USB Communication
to Motherboard
Yellow is 12 Volts DC
Green is Coin Up Signal
Black is Ground
Pink is 12 Volts DC
Brown is Coin Up Signal
Yellow is Ground
