WIRING DIAGRAMS
AC IN, POWER SUPPLY WIRING
6

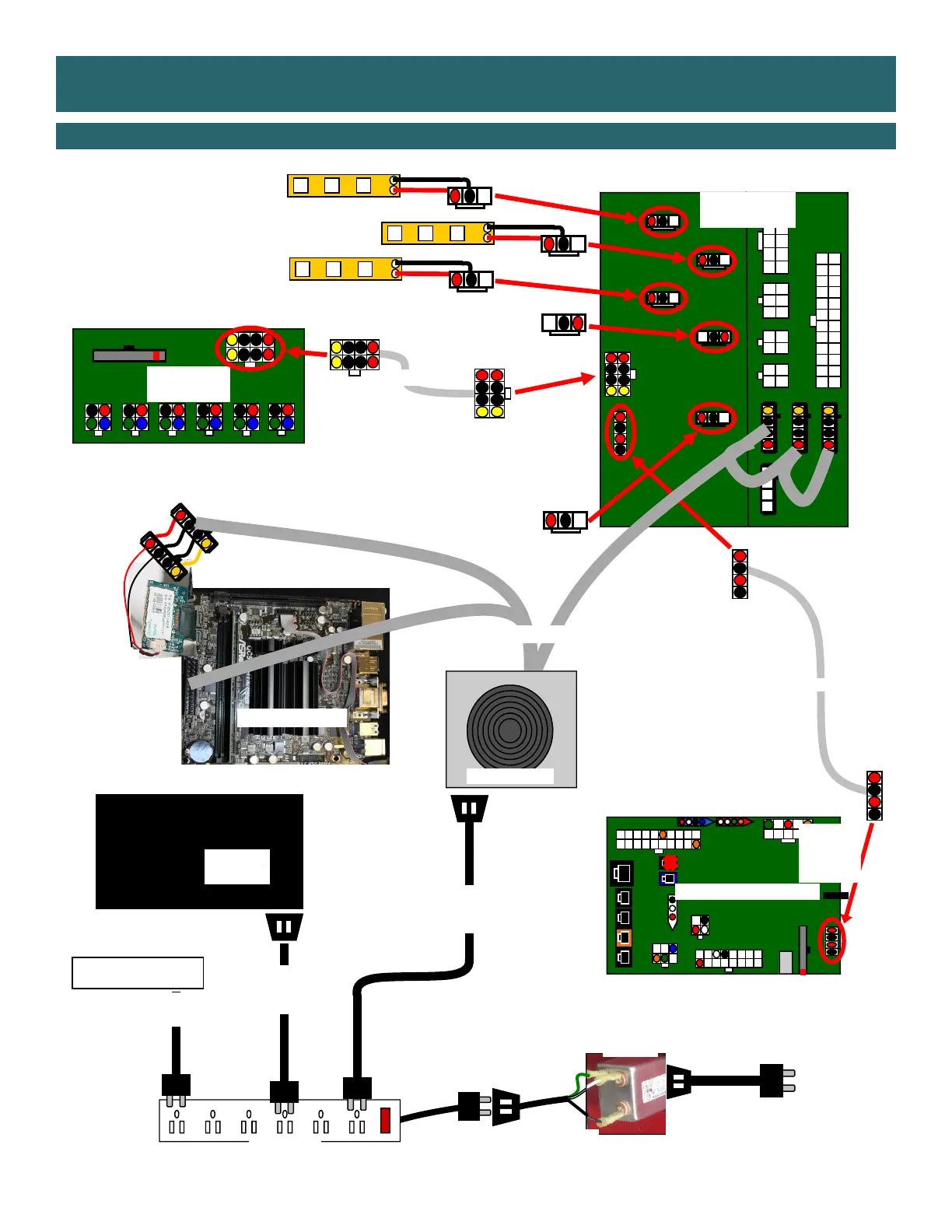

AC in, Power Supply Wiring Diagram
Bill Acceptor
A5AC9091
Power Supply
AAPS1013-PTL
55”TV
A5MO5500
Line Filter
A5FI9010
AC Power In cable
AACE5929
Power In Cord
From Wall
A5CORD5
Special Power
Cord to TV
Outlet Strip
A5OU1000
Bill Acceptor Power Cable
AACE5921
AC Power to
Power Supply
A5CORD5
AACE5912
AANEWGEN1-PJ/RBN
To J18
Connector
on Main
Board
AAMB9A-SHD
SATA Hard
Drive
A5HD1800
P
o
w
e
r
C
a
b
l
e
t
o
S
A
T
A
H
a
r
d
D
r
i
v
e
+ -
AACE5936
Lower Right Circle LED
+ -
AACE5936
Lower Left Circle LED
+ -
AACE5934
Inside cabinet Work LED
To CE5920
Cable
To CE5932
Cable
AACB5156
Power Dist. Bd
AACE5915
AACB5900
Light Board
AAPS1013-PTL
Power Supply Cables
