Parameterization and commissioning
BK11x0, BK1250 57Version: 4.1

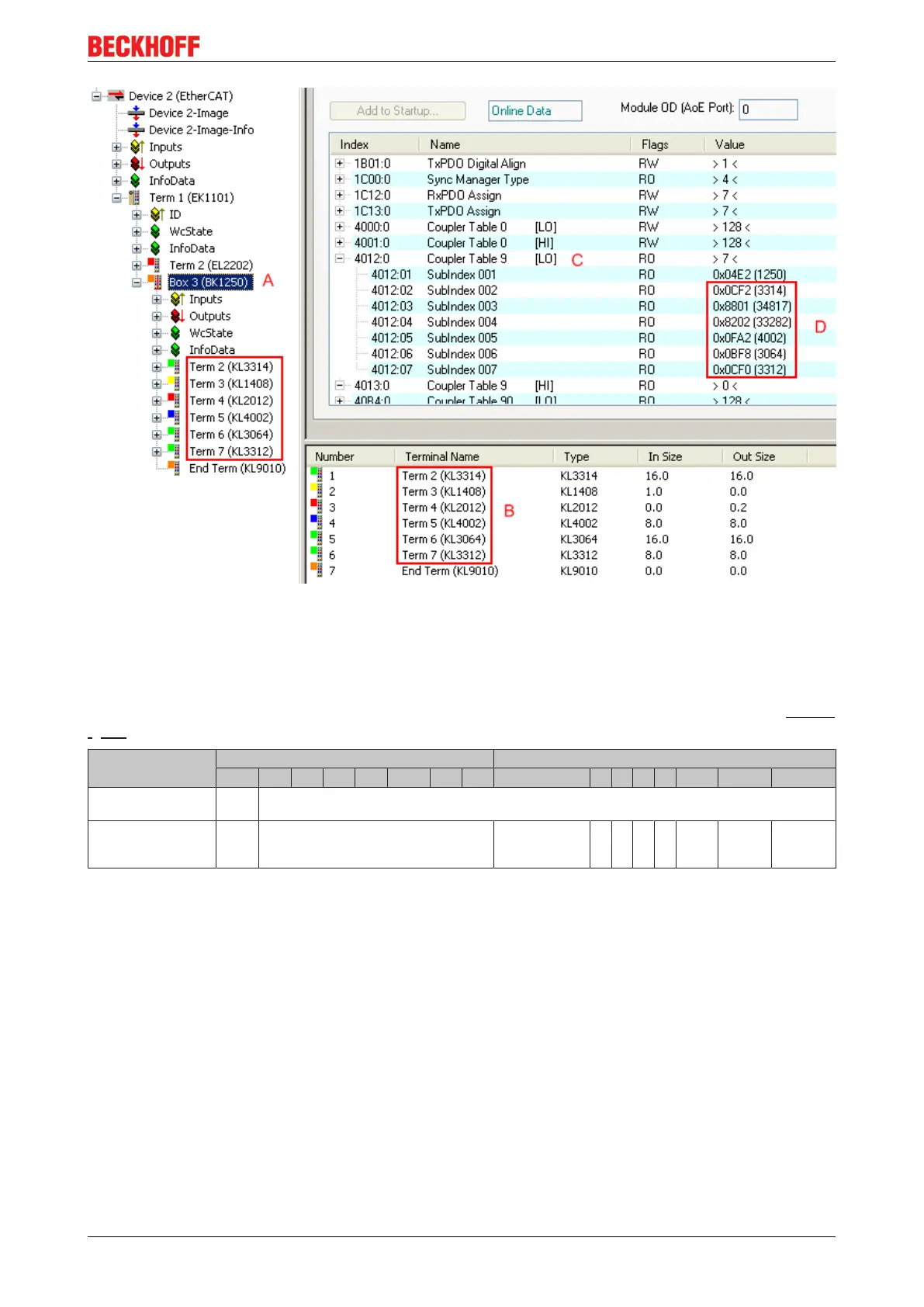

Fig.43: Table 9 with terminal type
SubIndex 1 is the "name" of the coupler itself, the terminals follow from subindex 2. Subindex 0 contains the
number of terminals that were found. Since the subindex 1 contains the coupler name itself, the value in
subindex 0 corresponds to the number of terminals, including the KL9010.
For each KL/KM terminal the type is specified as a 16-bit value based on the following key (see index 0x4012
[}67])
Terminal type High byte Low byte
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
complex terminal (e.g.
analog terminals)
0 terminal type (decimal) from terminal reg. 8
simple digital input/
output terminals
1 process data configuration [bit] shift register
Extension
1:
KL121
2
1: output
terminal
1: input
terminal
