Parameterization and commissioning
BK11x0, BK1250 63Version: 4.1
Value Description
0x___1 Slave in 'INIT' state
0x___2 Slave in 'PREOP' state
0x___3 Slave in 'BOOT' state
0x___4 Slave in 'SAFEOP' state
0x___8 Slave in 'OP' state
0x001_ Slave signals error
0x002_ Invalid vendorId, productCode... read
0x004_ Initialization error occurred
0x010_ Slave not present
0x020_ Slave signals link error
0x040_ Slave signals missing link
0x080_ Slave signals unexpected link
0x100_ Communication port A
0x200_ Communication port B
0x400_ Communication port C
0x800_ Communication port D
6.4.7 ADS address (ADSAddr) - configuration overview
ADSAddr, Online tab
Single line indicating the AMS NetID and the AMS port of the coupler using the hexadecimal system. This
information is required for mailbox communication via ADS.
Sample:
AC 10 06 31 02 01 (AMS netID) = 172.16.06.49.2.1
03 E9 (port) = 1001
dec

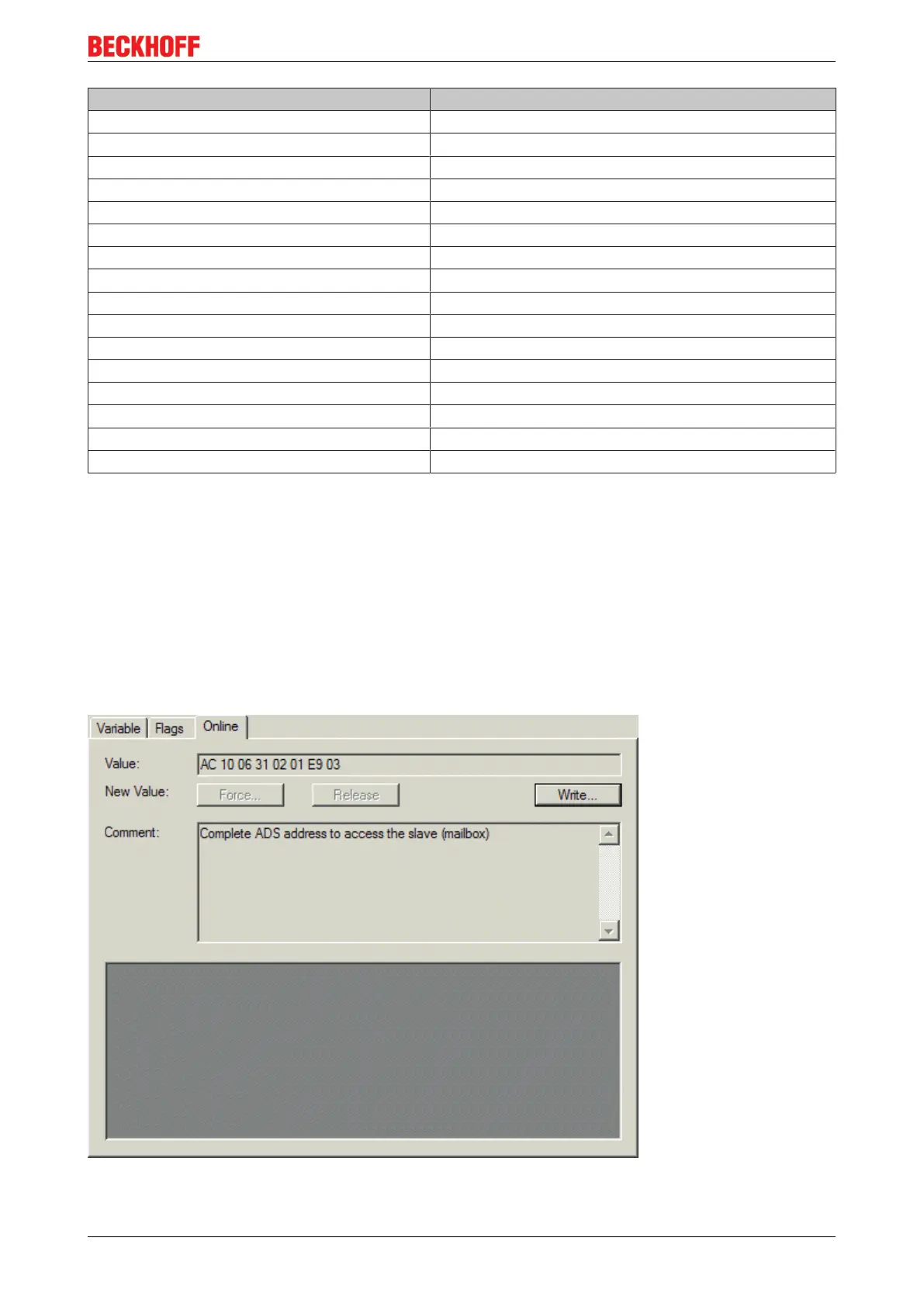

Fig.50: ADSAddr, "Online" tab
